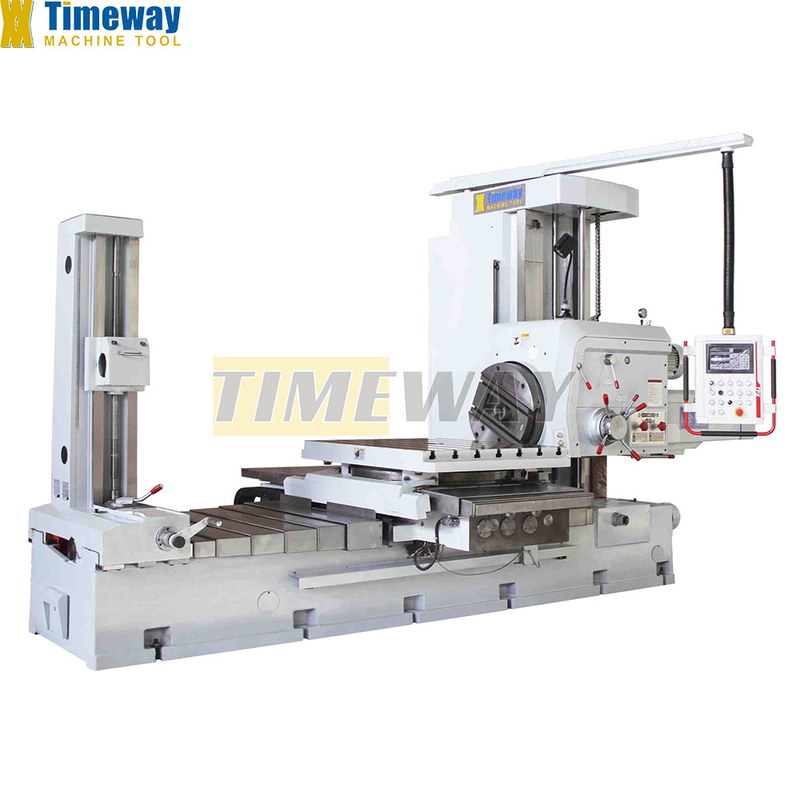

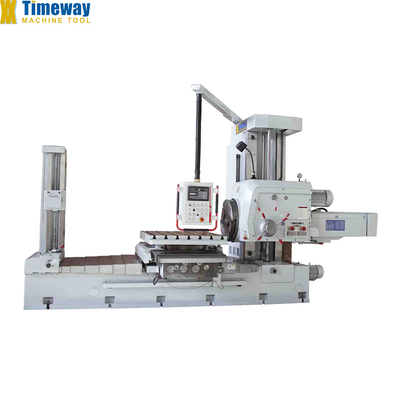

15kw Main Motor Power TPX-130B Boring and Milling Machine for Customer Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | TPX-130B |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1600 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 1400 | Table Travel (Z) (mm): | 2000 |
| Spindle Taper: | Metric 80 | Range Of Spindle Speed(r.p.m): | 4 - 800 R.p.m |
| Type: | Horizontal | Spindle Motor Power(kW): | 15 |
| Dimension(L*W*H): | 6995x3647x3442mm | Weight (KG): | 24000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Boring Milling Machine | Table Size: | 1600x1400mm |
| X-axis Travel: | 1600mm | Y-axis Travel: | 1400mm |
| Z-axis Travel: | 2000mm | W-axis Travel (spindle): | 900mm |
| Color: | Opitional | Main Motor Power: | 15kw |
| Spindle Speed Range: | 4-800r/min | After-sales Service Provided: | After-sales Service |
| Number Of Axes: | 4 | Condition: | New |
| Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Construction Works , Energy & Mining | Showroom Location: | Morocco, Kenya, Chile, Romania, South Africa, Kazakhstan, Japan, Malaysia, Australia, Egypt, Italy, France, Viet Nam, Thailand |
| Core Components: | Motor, Gear | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:
- MT6 spindle (110mm)
- Metric 80 spindle (130mm)
- Facing plate
- Boring tool holder
- Work lamp
- Cooling system
- Hydraulic system
- Lubrication pump
- NEWALL X/Y-axis DRO
- MITSUBISHI PLC control
- CE-mark electrical components
- Level wedges & foundation bolts
- Operating tools
- Operation manua
- Metric 80 spindle (130mm)
- Facing plate
- Boring tool holder
- Work lamp
- Cooling system
- Hydraulic system
- Lubrication pump
- NEWALL X/Y-axis DRO
- MITSUBISHI PLC control
- CE-mark electrical components
- Level wedges & foundation bolts
- Operating tools
- Operation manua
OPTIONAL ACCESSORIES:
- ISO50 (7:24) spindle
- NEWALL Z-axis DRO
- Rear column
- Turning device & gears
- NEWALL Z-axis DRO
- Rear column
- Turning device & gears
Specification
SPECIFICATION | UNIT | TPX-130B |
Spindle Diameter | mm | Φ130 |
Spindle Taper | - | Metric 80 |
Max. spindle torque | N.m | 3136 |
Max. spindle thrust | N | 31360 |
Spindle speed steps | - | 24 |
Spindle speed range | rpm | 4-800 |
Main motor power | kw | 15 |
Max. facing head torque | N.m | 4900 |
Facing head diameter | mm | Φ750 |
Facing head speed range | rpm | 2.5-125 |
Facing head speed steps | - | 18 |
Table size | mm | 1600x1400 |
Max. loading weight on table | kg | 8000 |
T-slot size | mm | 28 |
T-slot count | - | 9 |
X-axis travel | mm | 1600 |
Y-axis travel | mm | 1400 |
Z-axis travel | mm | 2000 |
W-axis travel (spindle) | mm | 900 |
U-axis travel (facing slide travel) | mm | 250 |
B-axis rotary angle (table) | ° | 360° (4x90°) |
Distance between spindle cneter and worktable | mm | 0-900 |
Rapid feed speed (X/Y/Z/W) | mm/min | 2500 |
Range of axes speed per spindle revolution (X/Y/Z/W) | mm/rev | 0.05-8/0.01-2 |
Measurement reading accuracy (X/Y/Z) | mm | 0.005 |
Measurement reading accuracy (B-axis) | ° | 0.001° |
Overall dimensions (LxWxH) | mm | 6995x3647x3442 |
Machine weight | kg | 24000 |
