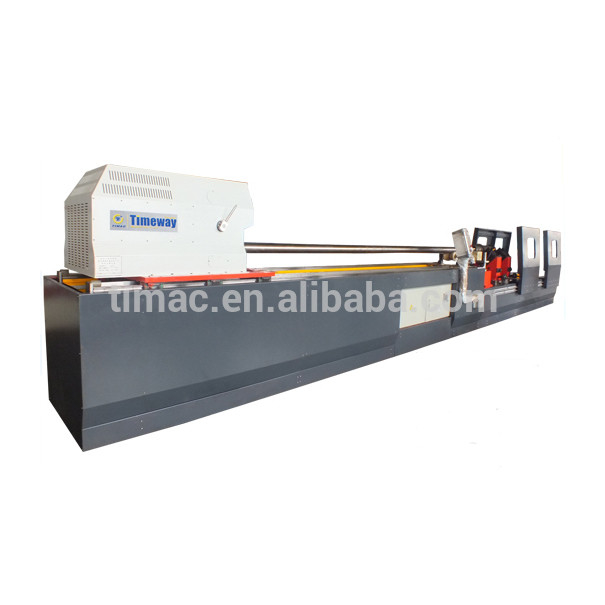

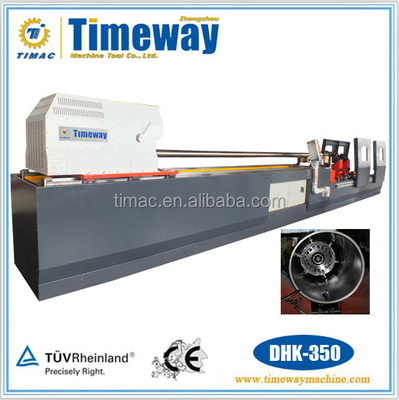

DHK-350 Automatic Deep Hole Pipe Honing Machine with 20-200rpm Spindle Speed Range
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | Standard Seaworthy package or according to customer's require |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Other | Showroom Location: | Saudi Arabia, Thailand, Kenya, Colombia, Algeria, South Africa, Kazakhstan |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Condition: | New |
| CNC Or Not: | CNC | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | As Actual Situation | Weight (KG): | 14000 |
| Power (kW): | 2.2 | Key Selling Points: | High-accuracy |
| Warranty: | 1 Year | After-sales Service Provided: | Online Support |
| Color: | According To Customer's Require | Honing Diameter Range: | 80-350mm |
| Spindle Speed Range Of Honing Box: | 20-200rpm | Feeding Speed Range: | 1-20m/min |
| Machine Type: | Horizontal Structure | Power: | As Actual Situation |
| Name: | Deep Hole Honing Machine | Type: | L Honing Machine |
| Port: | China Port | ||
Product Description
Product Description
Horizontal Heavy-Duty CNC Cylinder Deep Hole Honing Machine
Main Sturcture: Bed body, Honing head box, Electrical cabinet, Operational panel, V-type clamping device, Protection guard, Guide wheel of honing bar, Linear guide rail.
Feature：
* The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
* Adopting the special oil for cooling, the work area is almost not deformed and it is up to the higher precision on size and
geometry with an excellent surface finish. Honing is the important processing method of precise inner hole and long hole, which has a high efficiency.
* There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively
occurring of embedded sand. So the using life is prolonged.
* Adopting the special oil for cooling, the work area is almost not deformed and it is up to the higher precision on size and
geometry with an excellent surface finish. Honing is the important processing method of precise inner hole and long hole, which has a high efficiency.
* There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively
occurring of embedded sand. So the using life is prolonged.
Summary
* The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
* The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production.With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Specification
Specifications | Units | DHK-350 |
Honing diameter range | mm | Φ80-Φ350 |
Max. honing depth | mm | 1000-15000 |
Spindle center height | mm | 350 |
Workpiece clamping dia. range | mm | Φ100-Φ420 |
Carriage reciprocating speed range | m/min | 1-20(Stepless) |
Cooling pump flow | L/min | 100 |
Oil tank volume of cooling system | L | 300 |
Honing head expansion pressure | MPa | 0.3-4(Variable) |
Spindle motor power of honing bar box | kw | 11(AC servo) |
Packing & Delivery
* Firstly packed by waterproof cloth and then in wooden case.
* Few parts may need to be taken down and be packed in wooden case.
* According to customer's different require, wo can adopt different packaging.
* Few parts may need to be taken down and be packed in wooden case.
* According to customer's different require, wo can adopt different packaging.
Positive Comments From Customers
Company Profile

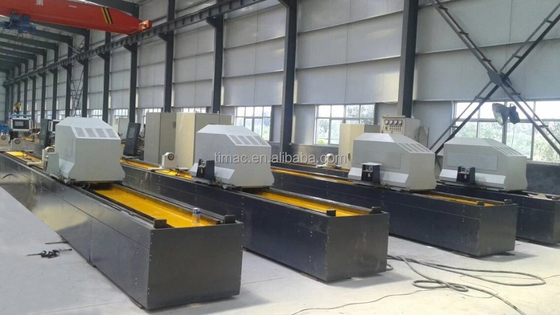

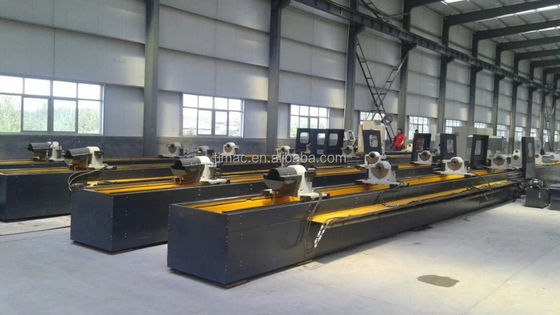

Factory Display：
