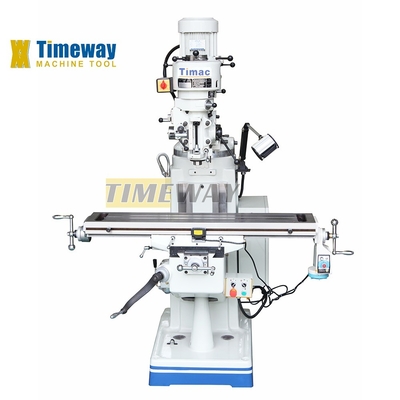

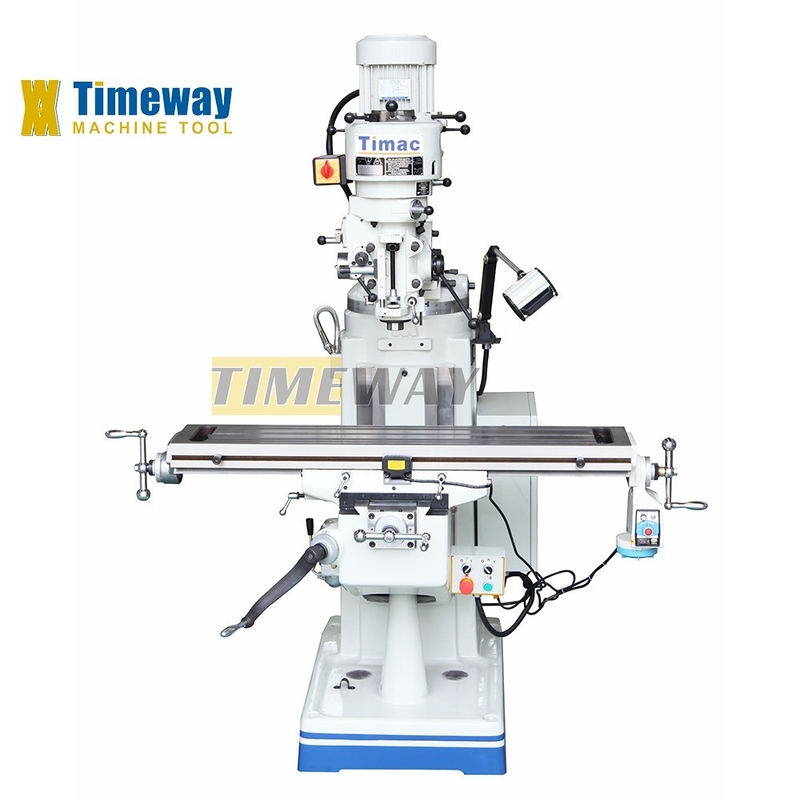

Double Dovetail Guideway Turret Milling Machine M230A for and Gross travel Y 310 mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | M230A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $15,000.00/sets >=1 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 670 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 310 | Table Travel (Z) (mm): | 390 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 2.2 |
| Dimension(L*W*H): | 1400*1476*2030 | Weight (KG): | 1000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Longitudinal Travel(X): | 670 Mm | Gross Travel(Y): | 310 Mm |
| Vertical Travel(Z): | 390 Mm | Ram Travel: | 315 Mm |
| Spindle Quill Travel: | 127 Mm | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Malaysia, Canada, Italy, France, Brazil, India | Core Components: | Motor, Engine |
| Year: | 2024 | ||
Product Description
Product Description
Base and column integrated casting,to gain better verticality and stability.

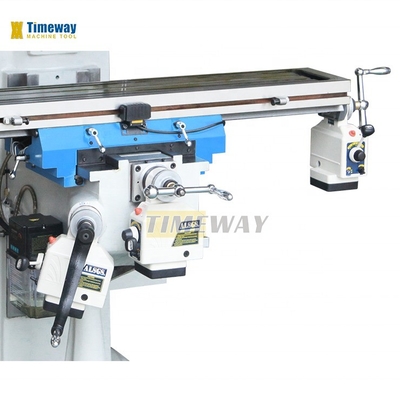

The guide way on saddle is lined with TF wearable material,which make machine accuracy stability.
T-shots not extend to the end of table,which makes is high rigidity and long using life.
Specification
Specification | M230A |
Table size | 230×1067 mm |
Longitudinal travel (X) | 670 mm |
Cross travel (Y) | 310 mm |
Vertical travel (Z) | 390 mm |
T-slot (No./width) | 3/16 |
Ram travel | 315 mm |
Distance from spindle to travel | 0-350 mm |
Spindle taper | R8 |
Spindle quill travel | 127 mm |
Spindle speed | 65-4500 rpm |
Main motor power | 2.2 kw |
Milling head swivel angle | ±90° |
Milling head tilting angle | ±45° |
X/Y/Z-axis guide type | double dovetail guildeway |
Gross weight | 1000 kg |

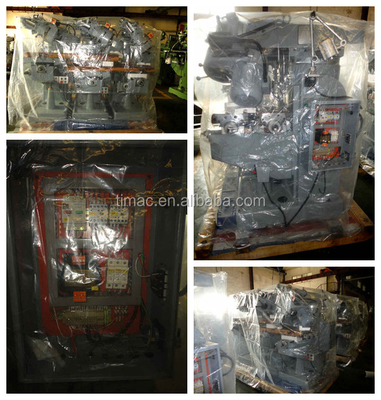

Packing & Delivery
