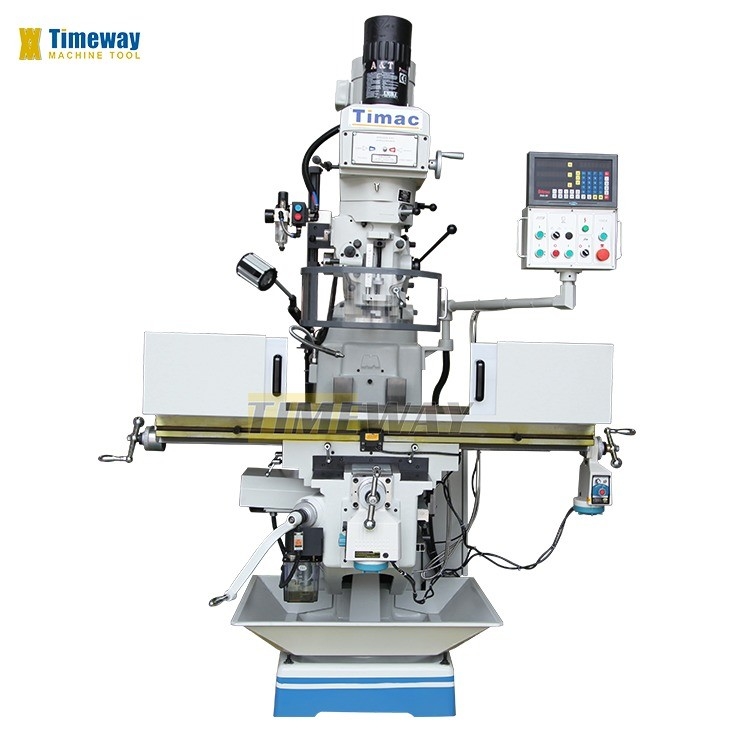

M300A Turret Milling Machine with 380mm Table Travel Z and 127mm Spindle Quill Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | M300A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $7,619.00/sets >=1 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1000 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 360 | Table Travel (Z) (mm): | 380 |
| Spindle Taper: | ISO40 | Range Of Spindle Speed(r.p.m): | 80 - 5440 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 3.7 |
| Weight (KG): | 1650 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | Hot Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Table Size: | 305x1500 Mm |
| Longitudinal Travel(X): | 1000 Mm | Cross Travel(Y): | 360 Mm |
| Vertical Travel(Z): | 380 Mm | T-slot(No. *width): | 16 Mm |
| Ram Travel: | 500 Mm | Distance From Spindle To Table: | 0-350 Mm |
| Spindle Quill Travel: | 127 Mm | Spindle Quill Automatic Feed: | 0.038/0.076/0.152 |
| Number Of Axes: | 3 | Condition: | New |
| Showroom Location: | Kazakhstan, Uzbekistan, Italy, Viet Nam, Brazil, Indonesia, India | Core Components: | Bearing, Motor, Engine |
| Year: | 2024 | Applicable Industries: | Building Material Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
Product Description
Product Description
This machine is ideal for milling simple to difficult workpieces in single part production, repair shop, training etc. Base and column integrated casting, to gain better verticality and stability. The bed, knee, table guide way and table surface are high-frequency quenched and precision polished, with hardness ≥HRC45. The guide way on saddle is lined with TF wearable material, which make machine accuracy stability.
Specification
Specification | M300A |
Table size | 305x1500 mm |
Longitudinal travel (X) | 1000 mm |
Cross travel (Y) | 360 mm |
Vertical travel (Z) | 380 mm |
T-slot (No./width) | 16 mm |
Ram travel | 500 mm |
Distance from spindle to table | 0-350 mm |
Spindle taper | ISO40 |
Spindle quill travel | 127 mm |
Spindle speed | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 65-3750) |
Spindle quill automatic feed | 0.038/0.076/0.152 mm/r |
Main motor power | 3.7 kw |
Mill head swivel angle | ±90° |
Mill head tilting angle | ±45° (Fix) |
X-axis guide type | Double dovetail guideway |
Y-axis guide type | Rectangular guideway |
Z-axis guide type | Rectangular guideway |
Dimension of package | 1566x1650x2080 mm |
Gross weight (One) | 1650 mm |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

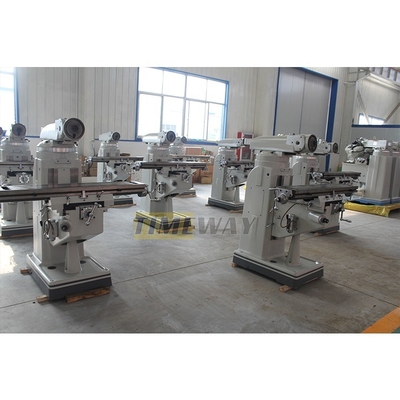

Factory Display：
