Deep Hole Grinding High Precision CNC Pipe Honing Machine with Horizontal Structure
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $85,000.00/sets 1-2 sets |
| Packaging Details: | Standard Seaworthy package or according to customer's require |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Other | Showroom Location: | Viet Nam, Philippines, Saudi Arabia, Thailand, UAE, Colombia, Algeria, South Africa |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Hot Product 2019 | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Condition: | New |
| CNC Or Not: | CNC | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | As Actual Situation | Weight (KG): | 13000 |
| Power (kW): | 2.2 | Key Selling Points: | High Safety Level |
| Warranty: | 1 Year | Color: | According To Customer's Require |
| Honing Diameter Range: | 32-250mm | Max. Honing Depth: | 1000-10000mm |
| Spindle Center Height: | 350mm | Workpiece Clamping Diameter: | 50-350mm |
| Spindle Speed Range Of Honing Box: | 50-350rpm | Feeding Speed Range: | 5-20m/min |
| CNC System: | Taiwan Delta Or Other | Machine Type: | Horizontal Structure |
| Special Machine: | According To Customer's Special Require | Port: | China Port |
Product Description
Summary
Machine Summary
* The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
* The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Product Description

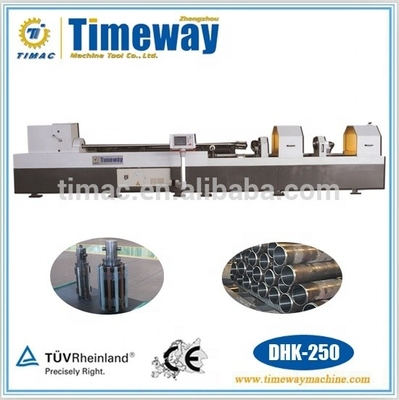

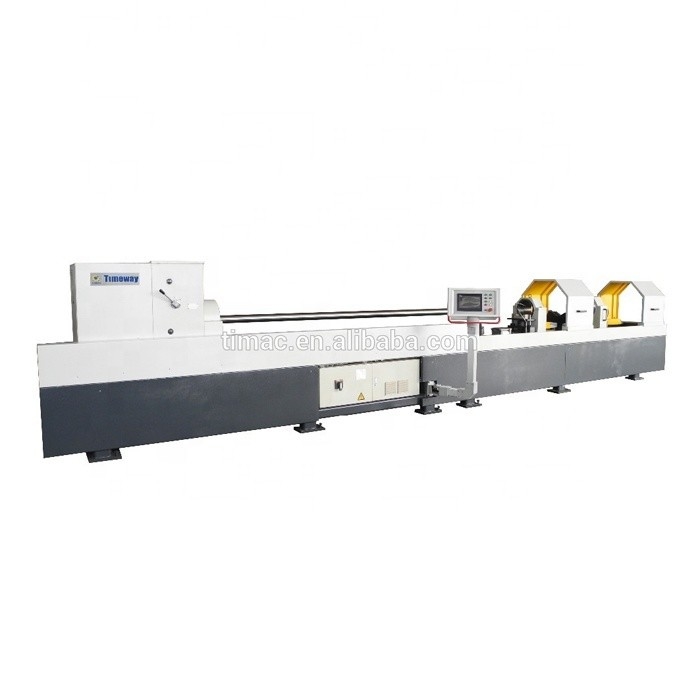

High Precision CNC Horizontal Deep Hole Tube Honing Machine
Features
* The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating. It has a wide appliation, especially for processing of non-rotary workpiece, such as hydraulic cylinder, air cylinder, square body, the workpiece with rotary shaft and flange plate, etc.
* The workpiece is fixed by V-type supporting and chain locking. The machine can be programmed to realize automatic operation, with setting up to honing time, reciprocation frequency and honing distance. It is suitable for mass production or single maintenance production. The machine selects Taiwan Delta control system with human-machine interface touch screen.
* The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
* The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
Specification
Specifications | Units | DHK-250 |
Honing diameter range | mm | Φ32-Φ250 |
Max. honing depth | mm | 1000-10000 |
Spindle center height | mm | 350 |
Spindle motor power of honing bar box | kw | 11 |
Reciprocating motor power | kw | 4.5(AC servo) |
Clamping and expansion motor power of honing head | kw | 0.75(AC servo) |
Cooling pump motor power | kw | 2.2 |
Positive Comments From Customers
Company Profile
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
