Timeway M250 High Precision Manual Turret Milling Machine for 920/1000mm Table Travel
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | M250 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $12,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 820/920 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 410 | Table Travel (Z) (mm): | 400 |
| Spindle Taper: | R8 | Range Of Spindle Speed(r.p.m): | 65 - 4500 R.p.m |
| Type: | VERTICAL | Dimension(L*W*H): | 1516x1550x2080mm |
| Weight (KG): | 1320 | Warranty: | 1 Year |
| Key Selling Points: | Competitive Price | Marketing Type: | New Product 2024 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Table Load(kg): | 1000 Kg |
| Spindle Bore(mm): | 58 | Cutting Torque: | 30 N.m |
| Rapid Feed Speed(mm/min): | 65 - 4200 Mm/min | Feed Speed(mm/min): | 80 - 5440 Mm/min |
| Tool Post Stations: | 4 | Product Name: | Turret Milling Machine |
| After-sales Service Provided: | Provided | Table Size: | 320x1370/320x1500mm |
| Longitudinal Travel (X): | 920/1000mm | Cross Travel (Y): | 400mm |
| Vertical Travel (Z): | 400mm | Machine Type: | Vertical Drilling Milling |
| CNC Or Not: | Normal | Processing: | Mechanical Processing |
| Color: | Opitional | ||
Product Description
You can click on the picture to view the products you are interested in
One-Stop Shopping
Product Description

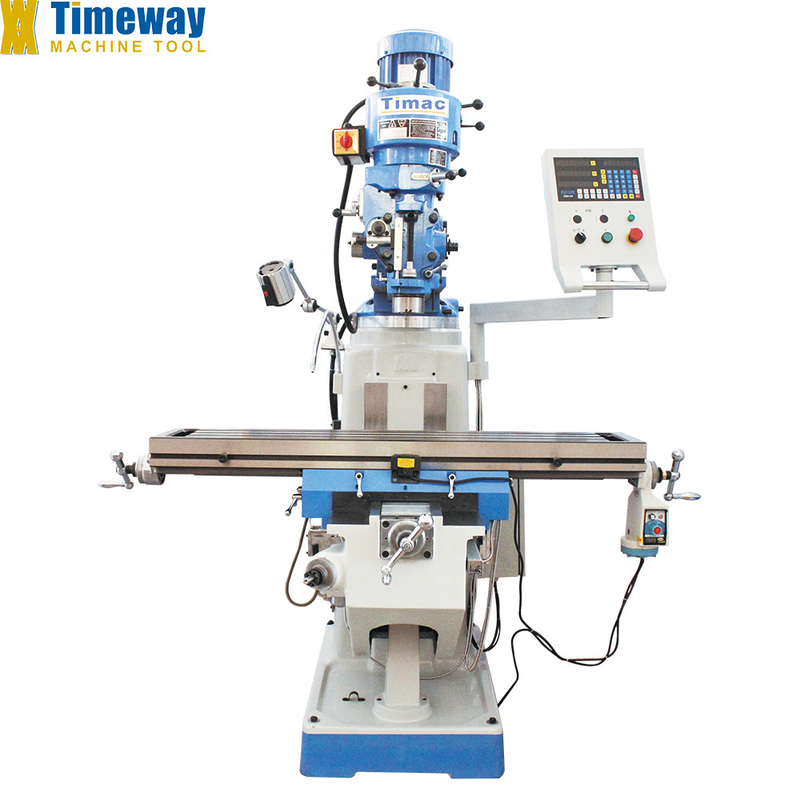

Turret Milling Machine M250

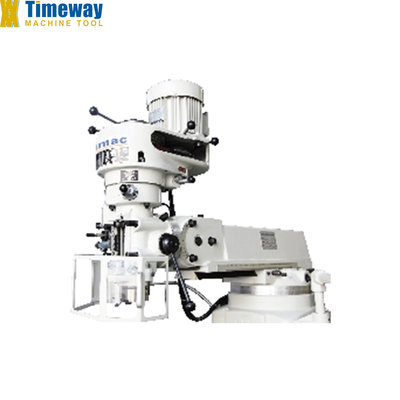

Swivelable mill head from -90° to +90° allows for various operations.
Mill head can be turned, tilted and swivelled making it extremely versatile.
Specification
SPECIFICATION | UNIT | M250 | ||
Table size | mm | 254x1270/254x1370 | ||
Longitudinal travel (X) | mm | 820/920 | ||
Cross travel (Y) | mm | 410 | ||
Vertical travel (Z) | mm | 400 | ||
T-slot (No./width) | mm | 3/16 | ||
Ram travel | mm | 470 | ||
Distance from spindle to table | mm | 0-400 | ||
Spindle taper | - | R8 (Optional : ISO30/ISO40) | ||
Spindle quill travel | mm | 127 | ||
Spindle speed | rpm | 16steps, 50HZ: 65-4500/60HZ: 80-5440 (Optional: Variable 60-4200) | ||
Spindle quill automatic feed | mm/r | 0.038/0.076/0.152 | ||
Main motor power | kw | 2.2 | ||
Mill head swivel angle | ° | ±90° | ||
Mill head tilting angle | ° | ±45° | ||
X/Y/Z-axis guide type | - | ▲■■ | ||
Dimension of package(One) | mm | 1516x1550x2080 | ||
Gross weight (One) | kg | 1320 | ||
Notes: "▲" means double dovetail guideway; "■" means rectangular guideway. | ||||
