Energy Mining Servo V36CL Vertical Knee-type Milling Machine General Purpose Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMEWAY |
| Model Number: | Servo V36CL |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $18,600.00/sets 1-2 sets |
|
Detail Information |
|||
| Table Travel (X) (mm): | 1300 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Table Travel (Y) (mm): | 320 | Table Travel (Z) (mm): | 450 |
| Spindle Taper: | 7:24 ISO50 | Range Of Spindle Speed(r.p.m): | 50 - 1475 R.p.m |
| Type: | VERTICAL | Spindle Motor Power(kW): | 5.5 |
| Dimension(L*W*H): | 2520x2100x2150mm | Weight (KG): | 3000 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Vertical Knee-type Milling Machine | Machine Type: | Veritcal |
| After-sales Service Provided: | Provided | Function: | Machining Metal |
| Table Size: | 1600x360mm | Color: | Opitional |
| Precision: | High Precision | Main Motor Power: | 5.5kw |
| Machine Weight: | 3000kg | Number Of Axes: | 3 |
| Condition: | New | Applicable Industries: | Hotels, Building Material Shops, Machinery Repair Shops, Farms, Construction Works , Energy & Mining |
| Showroom Location: | Morocco, Kenya, South Korea, Sri Lanka, Kazakhstan, Ukraine, Uzbekistan, Tajikistan, Malaysia, Australia, Italy, Germany, Viet Nam, Philippines, Indonesia, Mexico, Russia, Spain | Core Components: | Motor, Engine |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description

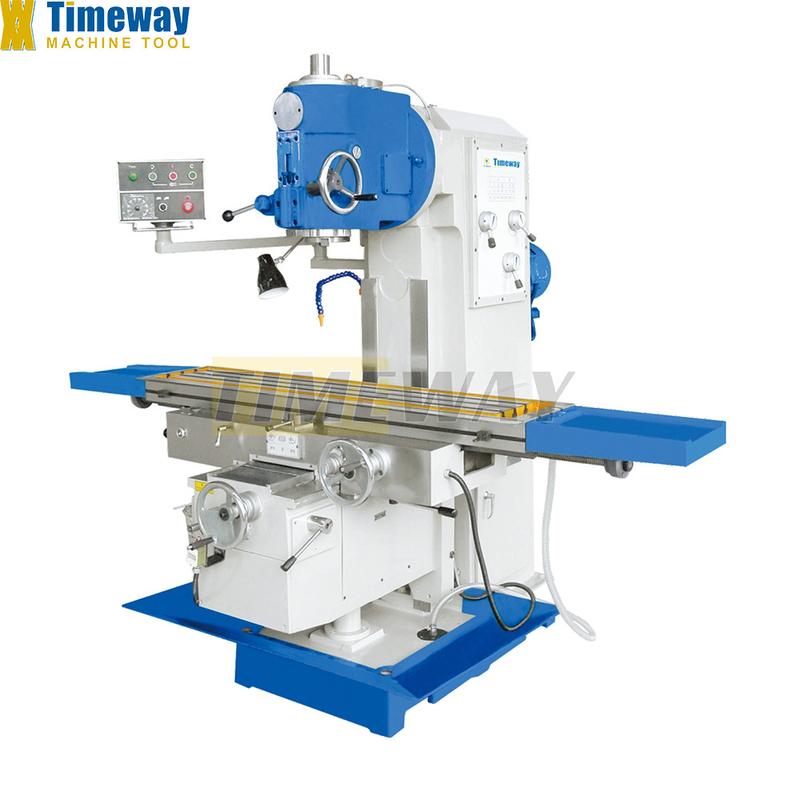

Vertical Knee-type Milling Machine Servo V36CL
1. The series vertical knee type milling machine is a general purpose machine with can be used in wide range.
2. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous workpieces.
3. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing, it is an ideal machine for machining process, maintenance, instrument, die and moulds.
4. Vertical milling head can rotate ±30°, spindle quill can move vertically.

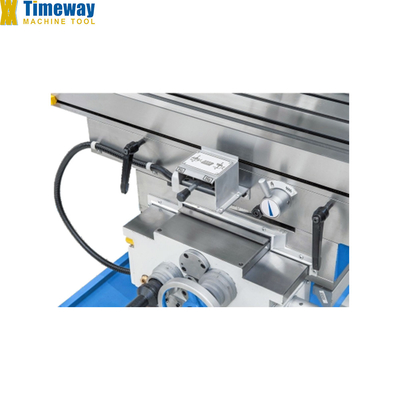

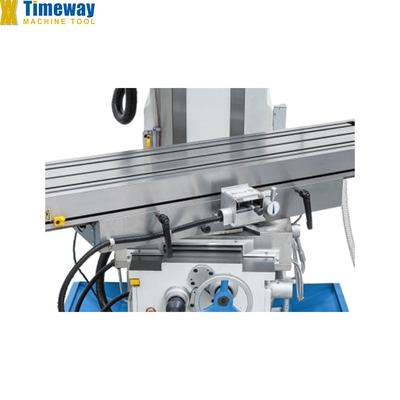

5. Worktable can realize automatic feed and rapid feed on the X/Y/Z-axis by servo motor.
2. Mounted with face, cylindrical, side, bevel and formed milling cutters, the machine is suitable to process flat, inclined surface, slots and gears on miscellaneous workpieces.
3. Equipped with optional accessories, such as rotary table and dividing head, machine can be applicable to versatile processing, it is an ideal machine for machining process, maintenance, instrument, die and moulds.
4. Vertical milling head can rotate ±30°, spindle quill can move vertically.
5. Worktable can realize automatic feed and rapid feed on the X/Y/Z-axis by servo motor.
STANDARD ACCESSORIES:
Draw bar
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operation manual(English)
Coolant system
Chip tray
Work lamp
Lubrication system
Tools and Tool box
Operation manual(English)
OPTIONAL ACCESSORIES:
2/3-axis digital readout
58pcs clamping kit
Machine vise

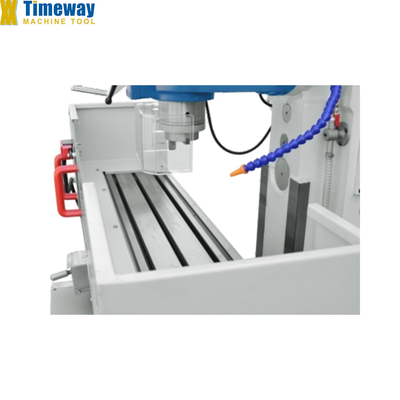

Spindle protection guard
Table protection guard
Dividing head
58pcs clamping kit
Machine vise
Spindle protection guard
Table protection guard
Dividing head
Rotary table
Reducing sleeve
Reducing sleeve
Specification
SPECIFICATION | UNIT | Servo V36CL |
Table size | mm | 1600x360 |
T-slot (No./width/pitch) | mm | 3/18/80 |
Table travel (X/Y/Z) | mm | 1300/320/450 |
Distance from spindle nose to table | mm | 50-500 |
Distance from spindle axis to column | mm | 378 |
Spindle quill travel | mm | 70 |
Spindle taper | - | 7:24 ISO50 |

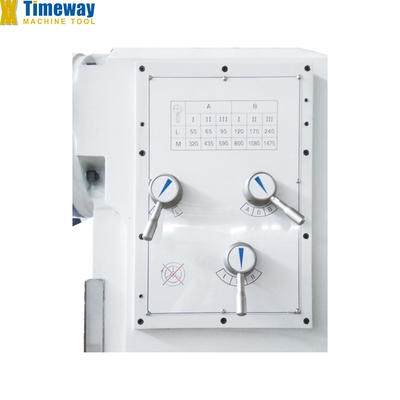

Spindle speed range | r/min | 50-1475 |
Spindle speed step | steps | 12 |
Table longitudinal feed speed (X) | mm/min | 30-750 |
Table cross feed speed (Y) | mm/min | 20-500 |
Table vertical feed speed (Z) | mm/min | 15-375 |
Feed speed steps (X/Y/Z) | steps | 8 |
Rapid feed speed (X/Y/Z) | mm/min | 1200/800/600 |
Mill head swivel angle | ° | ±30° |
Main motor power | kw | 5.5 |
Servo feed motor torque | Nm | 10 |
Machine dimensions (Lx WxH) | mm | 2520x2100x2150 |
Machine weight | kg | 3000 |
