380V/50HZ Voltage Heavy Duty CNC Deep Hole Honing Machine for Workpiece Diameter 100-650mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | Standard Seaworthy package or according to customer's require |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Other | Showroom Location: | Germany, Spain, Morocco, Kenya, Colombia, South Africa, Ukraine |
|---|---|---|---|
| Video Outgoing-inspection: | Provided | Machinery Test Report: | Provided |
| Marketing Type: | Ordinary Product | Warranty Of Core Components: | 1 Year |
| Core Components: | PLC, Engine, Motor | Condition: | New |
| CNC Or Not: | CNC | Voltage: | 380V/50HZ |
| Dimension(L*W*H): | As Table | Weight (KG): | 15000 |
| Power (kW): | 2.2 | Key Selling Points: | High Safety Level |
| Warranty: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | According To Customer's Require | Honing Diameter Range: | 100-500mm |
| Max. Honing Depth: | 1000-15000mm | Spindle Center Height: | 500mm |
| Workpiece Clamping Diameter: | 100-650mm | CNC System: | Taiwan Delta Or Other |
| Weight: | As Actual Situation | Power: | As Actual Situation |
| Port: | China Port | ||
Product Description
Product Description

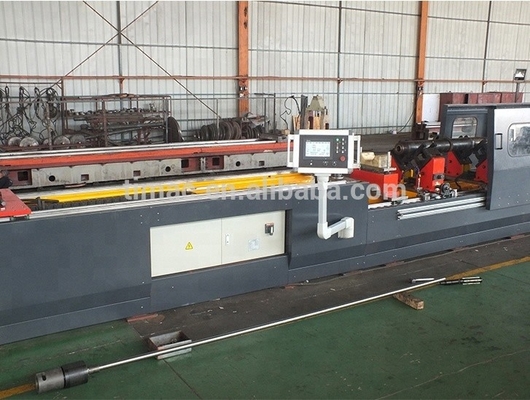

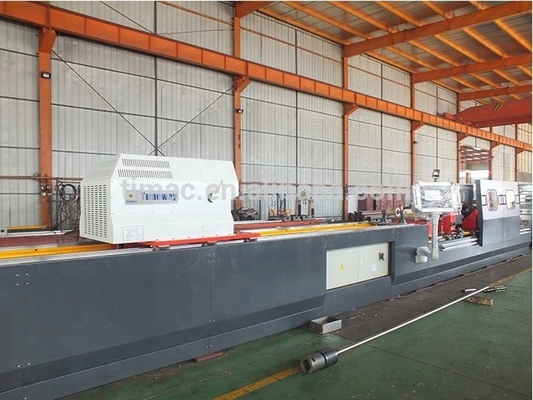

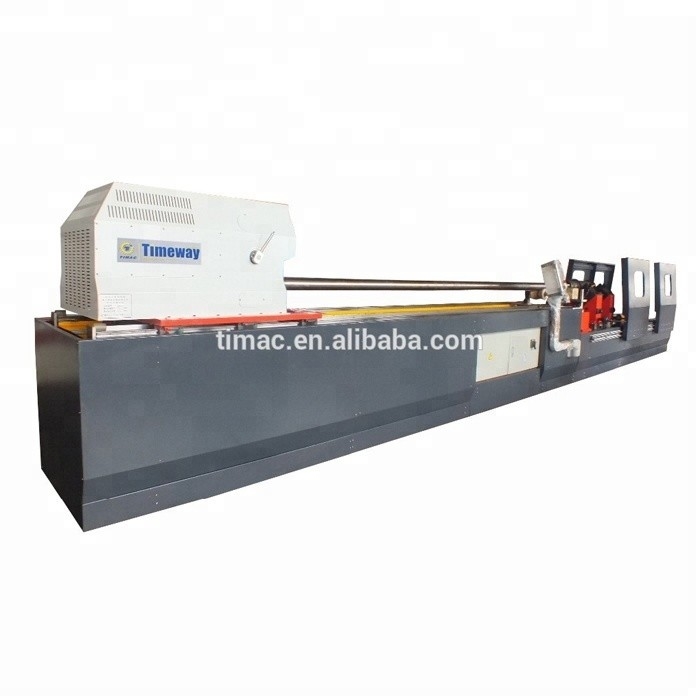

Heavy Duty CNC Deep Hole Honing Machine
Feature：

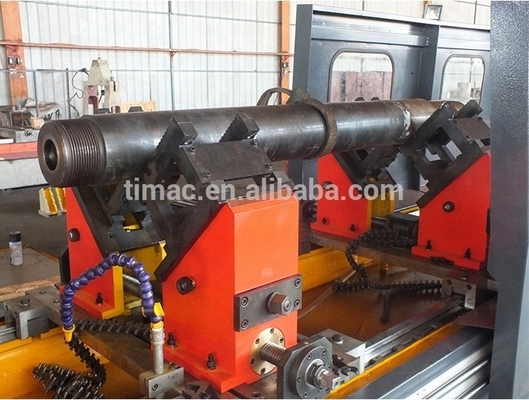

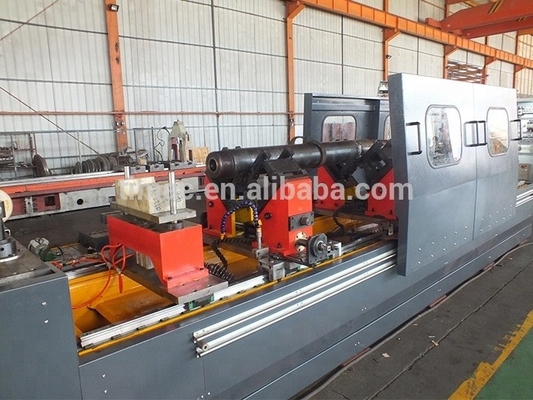

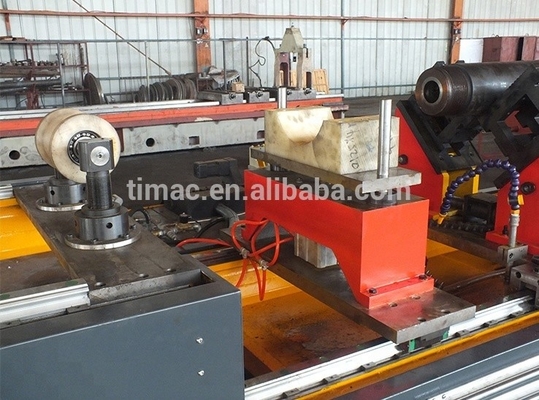

* The machine adopts the mode of workpiece fixed, honing head rotating and reciprocating. It has a wide appliation, especially for processing of non-rotary workpiece, such as hydraulic cylinder, air cylinder, square body, the workpiece with rotary shaft and flange plate, etc.
* The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
* There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively
occurring of embedded sand. So the using life is prolonged.
* The surface roughness is up to Ra 0.2µm and roundness is less than 0.03mm, the hole tolerance is up to IT7 or above.
* There is the crossing texture on the surface of oilstone, it is good for protection of lubricant film, and avoiding effectively
occurring of embedded sand. So the using life is prolonged.
Summary
* The series CNC deep hole honing machine is the dedicated machine for honing and polishing of deep hole. Mainly for fine processing of the precision parts, it is an ideal deep hole processing machine with high precision and high efficiency.
* The modified version type of the machine can be designed according to the different demands. Absorbing the advanced experience home and abroad, this machine can realize accurate control of timing, positioning and quantifying in the process of production. With the development of high-performance abrasive and automated honing machine, the honing application range will get wider and wider.
Specification
Specifications | Units | DHK-350 | DHK-500 | DHK-800 |
Honing diameter range | mm | Φ80-Φ350 | Φ100-Φ500 | Φ350-Φ800 |
Max. honing depth | mm | 1000-15000 | 1000-15000 | 1000-15000 |
Spindle speed range of honing bar box | r/min | 20-200(Stepless) | 10-250(Stepless) | 20-250(Stepless) |
Workpiece clamping dia. range | mm | Φ100-Φ420 | Φ100-Φ650 | Φ400-Φ1000 |
Carriage reciprocating speed range | m/min | 1-20(Stepless) | 1-20(Stepless) | 1-20(Stepless) |
Cooling pump flow | L/min | 100 | 150 | 200, AB 50 |
Oil tank volume of cooling system | L | 300 | 300 | 500 |
Honing head expansion pressure | MPa | 0.3-4(Variable) | 0.3-4(Variable) | 0.3-4(Variable) |
Packing & Delivery
* Firstly packed by waterproof cloth and then in wooden case.
* Few parts may need to be taken down and be packed in wooden case.
* According to customer's different require, wo can adopt different packaging.
* Few parts may need to be taken down and be packed in wooden case.
* According to customer's different require, wo can adopt different packaging.
