Deep Hole Gun Drill Machine with Spindle Speed Range of 60-1000 r.p.m 7000x1500x2000 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Certification: | CE, ISO |
| Model Number: | DDK-60/1 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $80,000.00/sets 1-2 sets |
| Packaging Details: | Iron pallet or Fumigation wooden case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Type: | Bench Drilling Machine |
|---|---|---|---|
| Max. Drilling Dia. (mm): | 60 | Range Of Spindle Speed(r.p.m): | 60 - 1000 R.p.m |
| CNC Or Not: | CNC | Drilling Speed: | 10-500 Mm/min |
| Voltage: | 220/380/400/440V | Dimension(L*W*H): | 7000x1500x2000 Mm |
| Power (kW): | 50 | Weight (KG): | 9000 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Showroom Location: | United States, France, Germany, India, Mexico, Russia, South Africa | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Printing Shops |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel | Color: | Accoding To Customer's Require |
| Drilling Diameter Range: | 8-60mm | Max. Drilling Depth: | 2000mm |
| Number Of Spindle: | 2 Pcs. | Max. Length Of Workpiece: | 2000mm |
| Workpiece Clamping Diameter Range: | 300mm | Drilling Box Spindle Speed Range: | 100-2000rpm(steps) |
| Headstock Spindle Speed Range: | 60-1000rpm Or Without Headstock | CNC System: | SIEMENS Or Other CNC System |
| Machine Type: | Horizontal Gun Drill | After-sales Service Provided: | Online Support, Video Technical Support, Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Canada, United States, France, Germany, Brazil, Mexico, Russia, Thailand, Australia, South Korea, Chile, South Africa |
| Port: | China Ports | ||
Product Description
Single Spindle CNC Gun Drill For Deep Hole
DDK-60/1
Main Outlook
Main Performances
Performance and Features
- The series CNC deep hole drill machine is the dedicated drilling machine with high efficiency, high precision and high automation.
- When drilling the hole with the diameter of Φ8-30mm, It adopts the type of external chip removal (gun-drill method), through one-off drilling process; When drilling the hole with the diameter of Φ30-60mm, it adopts the type of BTA internal chip removal.
- It can finish several procedures including drilling, expanding and reaming, which is generally conducted by different machines in the conventional process. This machine achieves the excellent machining accuracy and surface finish.
- The machine adopts all rotation of workpiece and tool while the tool is feeding. It can also fix the workpiece and make the tool rotating and feeding.
- The machine adopts CNC system and has automatic cycle function. and it can achieve single action and automatic cycle action.
- The machine can process center hole and eccentric hole. So it is specially suitable for mass production. The different holes are available to be processed by this machine including through hole, blind hole and step hole.
Specifications List
Technical Parameters
| Specifications | Unit | DDK-50/1 | DDK-60/1 |
| Drilling dia. range | mm | 8-50 | 8-60 |
| Max. drilling depth of workpiece | mm | 500, 1000, 1500, 2000 | 500, 1000, 1500, 2000 |
| Max. length of the workpiece | mm | 500, 1000, 1500, 2000 | 500, 1000, 1500, 2000 |
| Headstock spindle speed range | r/min | 60-1000 | 60-1000 |
| Drill box spindle speed range (stepless) | r/min | 100-2000 | 100-2000 |
| Feed speed range (stepless) | mm/min | 10-500 | 10-500 |
| Workpiece clamping diameter range | mm | 300 | 300 |
| Feed rapid speed | m/min | 2 | 2 |
| Feed motor torque | N.m | 18 | 18 |
| Headstock motor power | kw | 15 | 15 |
| Drill bar box feeding motor power (stepless) | kw | 15 | 15 |
| Work pressure of cooling system (adjustable) | MPa | 1-5 | 1-5 |
| Cooling system flow (adjustable) | L/min | 6-100 (1 group) 100 (1 group) | 6-100 (1 group) 100 (1 group) |
| Drilling diameter-length ratio | 1:100 | 1:100 | |
| Machine total power | kw | 50 | 50 |
| Coolant fitering precision | µm | 20 | 20 |
| CNC system | SIEMENS or other CNC system | ||
Notes: The headstock is optional. If without headstock, you can save costs; If with headstock, you can higher processing efficiency.
Detailed Images

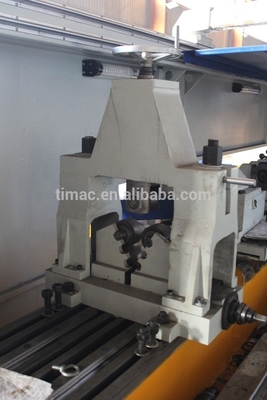

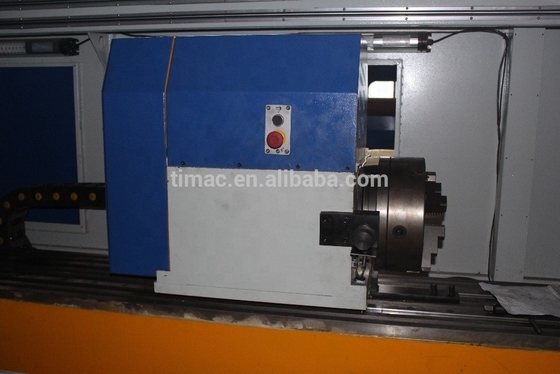

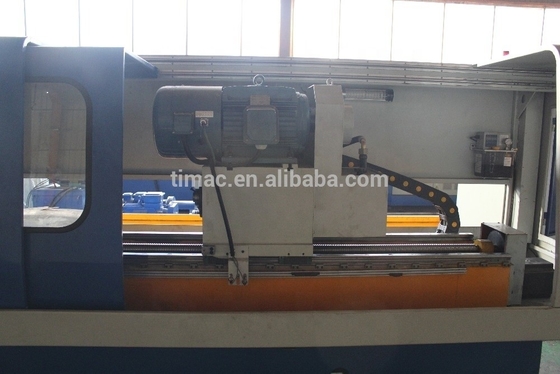

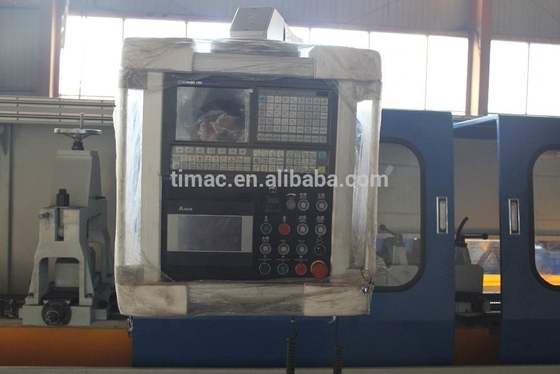

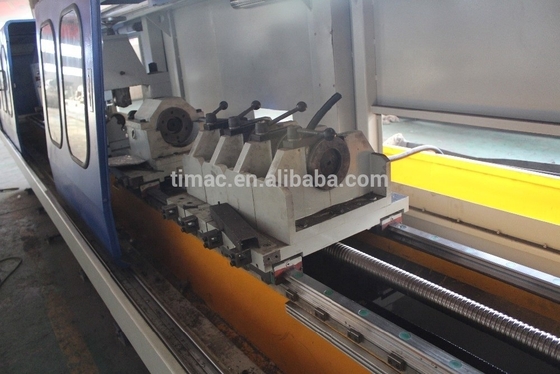

DDK-60/1 machine tool is equipped with single drilling bars.

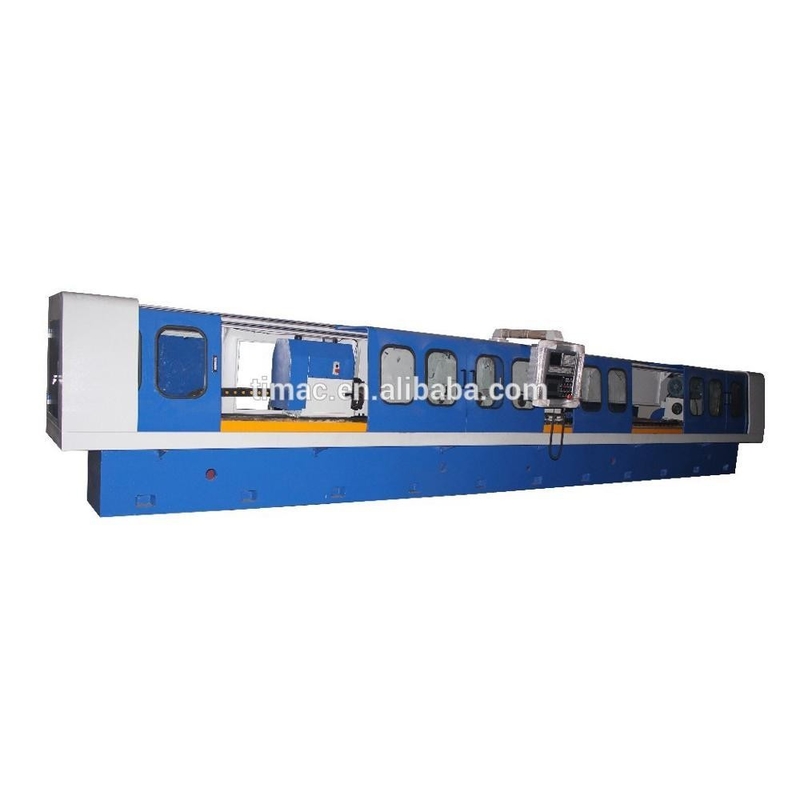

Actual Figure of Single Spindle CNC Deep Hole Gun Drill
The Real Figure
| |
| |
Packaging & Shipping
- Firstly packed by waterproof cloth and then in wooden case.
- Few parts may need to be taken down and be packed in wooden case.
- According to customer's different require, wo can adopt different packaging.
Whether CNC deep hole honing machine or CNC deep hole drilling and boring machine or CNC deep hole skiving roller burnishing machine, we all use the same standard Packagings.
