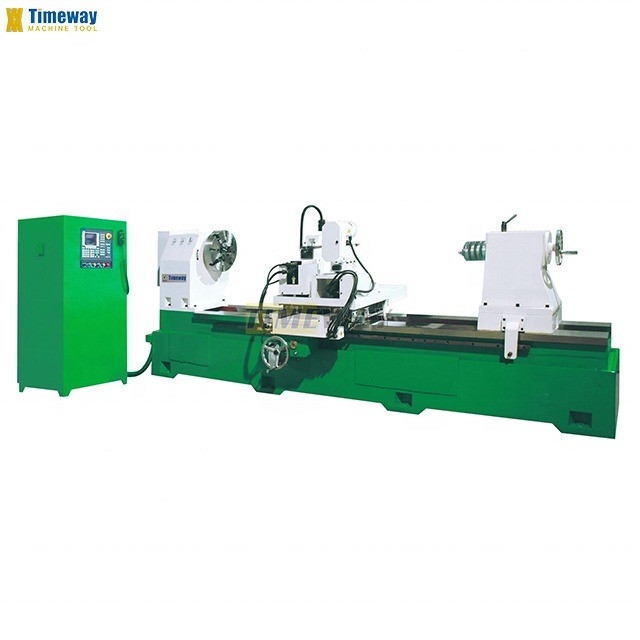

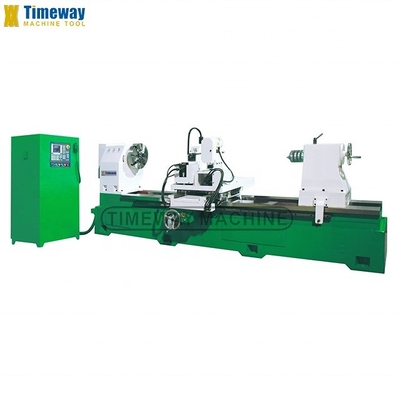

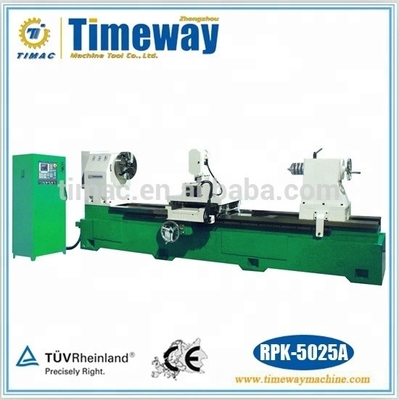

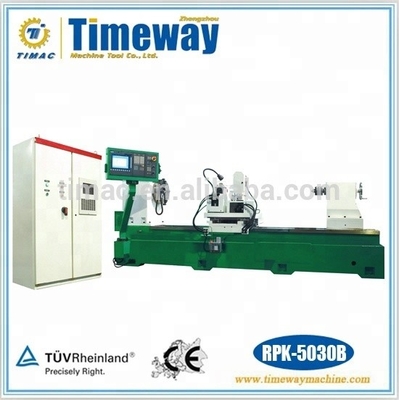

MT 5 Spindle Bore 58mm Specialized CNC Roll Notching and Engraving Lathe
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | RPK-5025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Wooden pallet or wood case |
| Supply Ability: | 300 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 150 Kg | Width Of Bed (mm): | 700 Mm |
| Spindle Motor Power(kW): | 7 Kw | No. Of Spindles: | Single |
| Number Of Axes: | 4 | Travel (X Axis)(mm): | 500 Mm |
| Travel (Z Axis)(mm): | 600 Mm | Positioning Accuracy (mm): | ±0.002 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 4300x1750x1800mm |
| Voltage: | 380v 50hz | CNC Control System: | FANUC |
| Tool Post Stations: | 8 | Weight (KG): | 5580 |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Control System: | SIEMENS CNC System | Max. Length Of Workpiece: | 2500mm |
| Spindle Bore Of Headstock: | MT#5 | Max. Spindle Speed Of Flyer Milling Head: | 550rpm |
| Max. Spindle Speed Of Swivel Head: | 2850rpm | Min. Of Feed Unit Of Length: | 0.001mm |
| Max. Swing Diameter: | 500mm | Net Weight: | 5580 Kg |
| Coolant Pump Motor: | 120 W | Condition: | New |
| Spindle Bore(mm): | 58 | Showroom Location: | Egypt, Canada, Germany, Brazil, Mexico, Chile, Algeria, South Africa |
| Marketing Type: | Hot Product 2019 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Motor, Other | Max. Turned Length (mm): | 2500 |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 11 R.p.m |
| Port: | China Port | ||
Product Description
Products Description
1. With this CNC roll notching and branding lathe RPK-5025, there is no need to engrave
logo and specification by EDM any more. No worry about carbide broken that is caused by EDM marking process very often. Now,it's done by special designed swivel head easily and accurately. Save lot of your time and your money for EDM investment andelectrodes.
2. All international rolled ribbed bar's standards can be performed by this machine. Not only china crescent notches of GB1499.2-2007, but also all international standard such as ISO6935-2, JIS G3112, ASTM A615, BS 4449, BS4461, ANSI etc. It is the unique notching machine, which can produce the REAL “JIS” & international standard notches. Not similar JIS from China GB standard base.
3. Many kinds of roll materials can be notched and marked easily, such as high Ni-Cr casting iron roll, H.S. steel roll and tungsten carbide roll ring.
4. Only about 10 minutes notching can be done for one cycle of bar size Φ20mm in dia. Φ340mm high Ni-Cr casting iron roll.Three times efficiency than before.

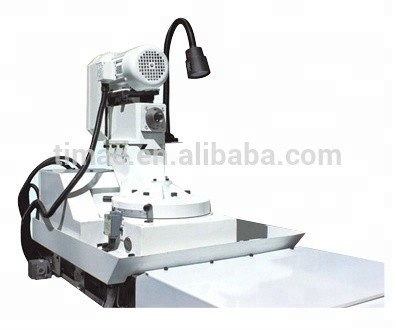

5. Any number, letter, symbols and logo can be engraved freely in the roll. Independent swivel engraving head guaranteed the smooth and accurate engraving. This special design reduced the working intensity of fly cutter milling head and keep long life service for customer. Much better than that of one combined unit with notching and engraving.
6. Famous Siemens SINUMERIK 808D CNC controller guarantees reliable & long life quality.
7. Japan YASKAWA servomotors guarantee powerful running for notching and engraving. It has been proved to be the best one fornotching machine. None beatable in this field.
8. Independent servo motor for all four axes.
9. Three axes simultaneously perform.
10. Patent fly cutter milling head guaranteed the powerful ad accuracy notching in dimensions(rib depth, thickness and leadangle). It is particularly important when performing on tungsten carbide rings and composite rolls.
logo and specification by EDM any more. No worry about carbide broken that is caused by EDM marking process very often. Now,it's done by special designed swivel head easily and accurately. Save lot of your time and your money for EDM investment andelectrodes.
2. All international rolled ribbed bar's standards can be performed by this machine. Not only china crescent notches of GB1499.2-2007, but also all international standard such as ISO6935-2, JIS G3112, ASTM A615, BS 4449, BS4461, ANSI etc. It is the unique notching machine, which can produce the REAL “JIS” & international standard notches. Not similar JIS from China GB standard base.
3. Many kinds of roll materials can be notched and marked easily, such as high Ni-Cr casting iron roll, H.S. steel roll and tungsten carbide roll ring.
4. Only about 10 minutes notching can be done for one cycle of bar size Φ20mm in dia. Φ340mm high Ni-Cr casting iron roll.Three times efficiency than before.
5. Any number, letter, symbols and logo can be engraved freely in the roll. Independent swivel engraving head guaranteed the smooth and accurate engraving. This special design reduced the working intensity of fly cutter milling head and keep long life service for customer. Much better than that of one combined unit with notching and engraving.
6. Famous Siemens SINUMERIK 808D CNC controller guarantees reliable & long life quality.
7. Japan YASKAWA servomotors guarantee powerful running for notching and engraving. It has been proved to be the best one fornotching machine. None beatable in this field.
8. Independent servo motor for all four axes.
9. Three axes simultaneously perform.
10. Patent fly cutter milling head guaranteed the powerful ad accuracy notching in dimensions(rib depth, thickness and leadangle). It is particularly important when performing on tungsten carbide rings and composite rolls.
11. Easy to switch notching to engraving by unique designed fly milling head & swivel engraving head that were mounted at one side. Avoid the roll-load colliding and no further headache for disassembling of fly cutter arbor, cutter support; no need to adjust swivel head and reset tool for engraving that you operate in the series machine. No any interference now.
12. Rectangle heavy casting bed with two square ways guarantee high rigidity. Square ways between saddle and apron offer rigidity support for notching and engraving. The rigidities reduced lot of notching vibration and help to achieve good cutting finish. (No any weak dovetail way, triangle way and arc roller guide way can be found in this machine) one piece of cutting tool is able to do all notching for a roll. Much save for tool's cost and tool's sharpening time.
13. Turcite-B box way provide strong and smooth movement for high precision machining. Solved the weakness problem of dovetail way and arc roller way that you may find in our first generation machine.
14. Precision ball screws ensure the transmission for accuracy positioning and smooth automatic operation.
15. Centralized automatic lubrication pump controlled by CNC system to ensure the perfect lubrication for all guide ways automatically. No damage risk by lack of lubrication by one-shot manual lubrication pump in other similar machine.
16. Industry heat exchange air-cooling & anti-dust big electrical cabinet ensured long time & stable working. It's guaranteed the CNC machine to work well in the hot and humidity Southeast Asia, South Asia and Africa. From now on, you won't complain any more about arm-type CNC controller suffered by humidity, steel powder dust and cutting vibration.
17. Strong roller type steady rest offers perfect support to heavy roll. No any beat from other popular steady rests.
18. Old notches in the roll can be renewed directly by this machine about 3 times. It's no need to turning cut-off old grooves of roll as usual. This machine will help you to save lots of time and money.
19. Special designed cutting tool grinder C/W tool fixture is available for your option now. You can sharpen the cutting tools at your shop any time.
20. Easy learning: Professional SIEMENS CNC with easy to use software let your job easy.
12. Rectangle heavy casting bed with two square ways guarantee high rigidity. Square ways between saddle and apron offer rigidity support for notching and engraving. The rigidities reduced lot of notching vibration and help to achieve good cutting finish. (No any weak dovetail way, triangle way and arc roller guide way can be found in this machine) one piece of cutting tool is able to do all notching for a roll. Much save for tool's cost and tool's sharpening time.
13. Turcite-B box way provide strong and smooth movement for high precision machining. Solved the weakness problem of dovetail way and arc roller way that you may find in our first generation machine.
14. Precision ball screws ensure the transmission for accuracy positioning and smooth automatic operation.
15. Centralized automatic lubrication pump controlled by CNC system to ensure the perfect lubrication for all guide ways automatically. No damage risk by lack of lubrication by one-shot manual lubrication pump in other similar machine.
16. Industry heat exchange air-cooling & anti-dust big electrical cabinet ensured long time & stable working. It's guaranteed the CNC machine to work well in the hot and humidity Southeast Asia, South Asia and Africa. From now on, you won't complain any more about arm-type CNC controller suffered by humidity, steel powder dust and cutting vibration.
17. Strong roller type steady rest offers perfect support to heavy roll. No any beat from other popular steady rests.
18. Old notches in the roll can be renewed directly by this machine about 3 times. It's no need to turning cut-off old grooves of roll as usual. This machine will help you to save lots of time and money.
19. Special designed cutting tool grinder C/W tool fixture is available for your option now. You can sharpen the cutting tools at your shop any time.
20. Easy learning: Professional SIEMENS CNC with easy to use software let your job easy.
21. Experienced technical support team is always ready to support you for operation & programming training.
Specification | Unit | RPK-5025 |
Max. diameter of workpiece | mm | Φ500 |
Max. length of workpiece | mm | Φ2500 |
Suitable for screw steel specification | mm | Φ5-Φ50 |
Notching per roll | As many as required | |
Notching angle | Free choice | |
Omitting ribs | Free choice | |
Minimum feed unit | mm | 0.001 |
Minimum feed unit | ° | 0.001 |
Max. spindle speed of flyer cutting milling head | rpm | 550 |
Max. spindle speed of swivel milling head | rpm | 2850 |
Spindle bore of headstock | MT#5 | |
Headstock chuck(4 jaw chuck) | mm | Φ400 |
Motor of swivel head | kw | 1.1 |
Workpiece swivel feed speed | deg/min | 50-600 |
Rapid workpiece feed speed | deg/min | 4000 |
Swivel speed of swivel head | deg/min | 40-600 |
Coolant pump motor | w | 120 |
CNC control system(4 axis control & 3 axis simultaneous movement) | SIEMENS | |
CNC control system power | V/HZ | 220/50 |
X axes servo motor(flyer cutter axis) | kw | 4.4 |
Y axes servo motor(roll axis) | kw | 1.3 |
Z axes servo motor(feed axis) | kw | 3 |
C-axes servo motor(Swivel axis) | kw | 1.3 |
Output torque of servo motor(X-axes, flyer cutter axis) | N.m | 28.4 |
Output torque of servo motor(Y-axis, roll axis) | N.m | 8.34 |
Output torque of servo motor(Z axes, feed axis) | N.m | 8.34 |
Output torque of servo motor(C axes, swivel axis) | N.m | 28.4 |
Packing size of machine | mm | 4300*1750*1800 |
Packing size of electric cabinet | mm | 1000*800*1800 |
Net weight | kg | 5580 |
