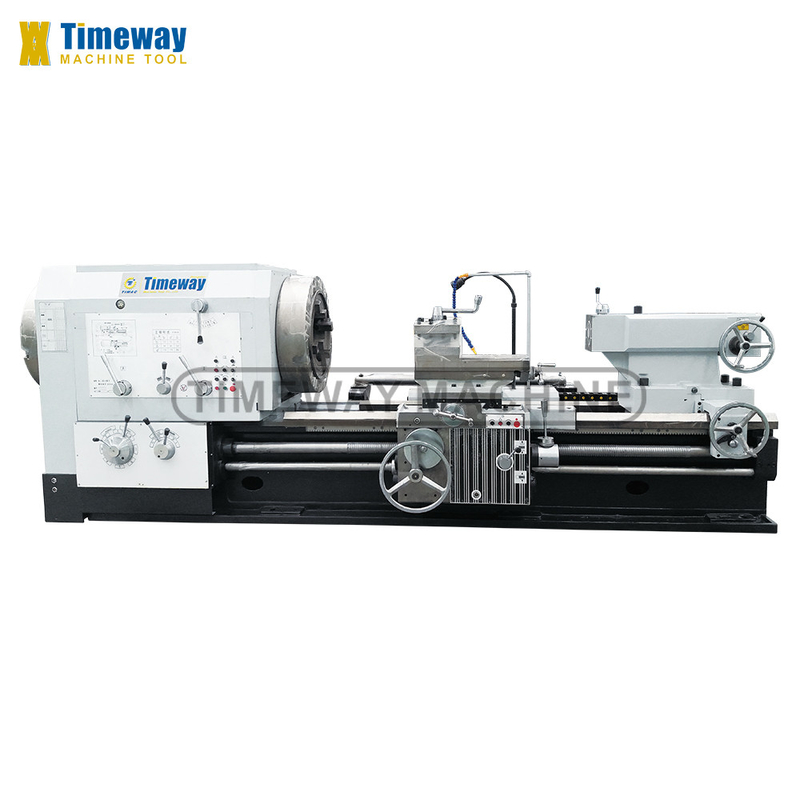

Medium Duty 4-jaw Electric Pipe Threading Lathe Q-330 for Metal Bed width 755 mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $51,000.00/sets 1-4 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 7.5 - 280 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 13000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 1000 Mm | Max. Swing Over Cross Slide: | 610 Mm |
| Distance Between Centers: | 1500/3000 Mm | Pipe Threading Range: | 190-320 Mm |
| Bed Width: | 755 Mm | X-axis Travel: | 520 Mm |
| Z-axis Travel: | 1350/2850 Mm | Max. Load Capacity: | 6000 Mm |
| Spindle Bore: | 330 Mm | Spindle Speed Steps: | 9 Steps |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining, Other |
| Showroom Location: | Turkey, Germany, Indonesia, Thailand | Core Components: | Bearing, Gear, Motor, Engine |
| Spindle Bore(mm): | 330 | Max. Turned Length (mm): | 320 Mm |
| Year: | 2024 | ||
Product Description
Product Description
The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.

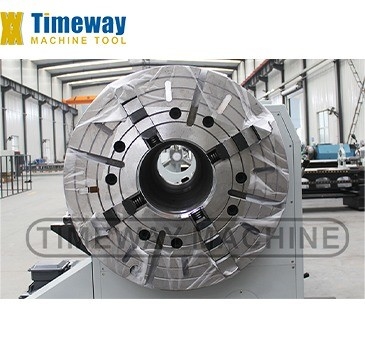

Equipped with front and rear electric 4-jaw chuck (780mm/850mm), motorized clamping workpieces.
Specification
Specifications | Q-330 |
Max. swing over bed | 1000 mm |
Max. swing over cross slide | 610 mm |
Distance between centers | 1500/3000 mm |
Pipe threading range | 190-320 mm |
Bed width | 755 mm |
X-axis travel | 520 mm |
Z-axis travel | 1350/2850 mm |
Max. load capacity | 6000 mm |
Spindle bore | 330 mm |
Spindle speed steps | 9 steps |
Spindle speed | 7.5-280 rpm |
Chuck size | 780 mm |
Chuck type | 4-jaw electric |

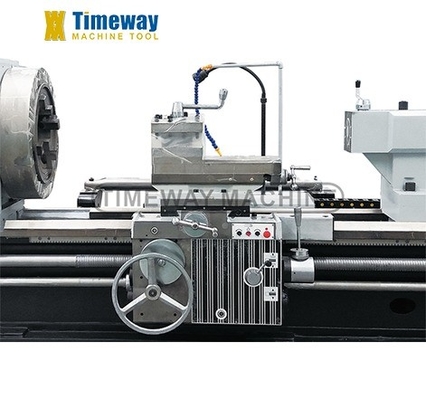

Turret type (manual) | V4 |
Tool shank size | 45x45 mm |
X-axis feed range(steps) | 0.05-0.75(32) mm/r |
X-axis rapid feed | 1870 mm/min |
Z-axis feed range(steps) | 0.1-1.5(32) mm/r |
Z-axis rapid feed | 3740 mm/min |
No. of Metric thread and range | 1-15(23) mm |
No. of Inch thread and range | 2-28(22) TPI |

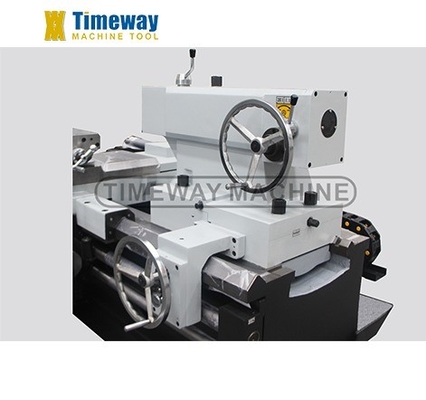

Tailstock quill diameter | 140 mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 300 mm |
Main motor power | 22 kw |
Rapid motor power | 1.5 kw |
Coolant motor power | 0.125 kw |
Machine dimensions (LxWxH) | 4900/6400x2100x1650 mm |
Machine weight | 11500/13000 kg |
