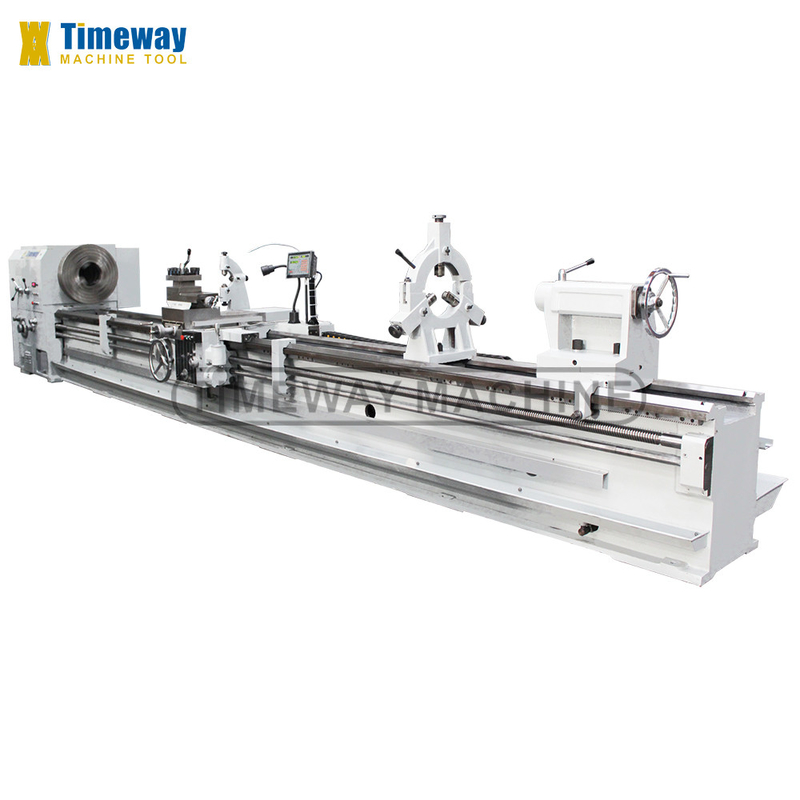

Metal Pipe Thread Lathe Machine Q-280F for Full Function Manual Oil Country Machining
Product Details:
| Place of Origin: | China |
| Model Number: | Q-280F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-1 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1000 | Range Of Spindle Speed(r.p.m): | 20 - 300 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Dimension(L*W*H): | 3700 1700 1600 | Weight (KG): | 7300 KG |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional, High Rigidity |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 4000 | Spindle Taper: | Other |
| Cutting Torque: | 66 N.m | Rapid Feed Speed(mm/min): | 1870 - 3740 Mm/min |
| Feed Speed(mm/min): | 1870 - 3740 Mm/min | Tool Post Stations: | 4 |
| After-sales Service Provided: | Provided | Precision: | High Precision High Accuracy |
| Processing: | Metal Workpiece | CNC Or Not: | Nomal |
| Max. Swing Diameter: | 800mm | Spindle Speed: | 20-100,100-300rpm |
| Spindle Bore: | 280mm | Distance Between Centers: | 1000/1500/2000/3000mm |
| X Axis Travel: | 520mm | Turret Type: | Manual 4 Position |
Product Description
Product Description
Specification
Swing over bed | Φ800mm |
Swing over cross slide | Φ480mm |
Distance between centers | 1000/1500/2000/3000mm |
Pipe threading range | Φ70-275mm |
Width of bed way | 600mm (Opt. 650) |
Spindle bore | Φ280mm |
Spindle speed steps | VF.2steps |
Spindle speed range | 20-100,100-300rpm |
Chuck size | Φ780mm |
Chuck type | 4-jaw manual |
Turret type | Manual 4 position |
Tool shank | 40x40mm |
X axis travel | 520mm |
Z axis travel | 800/1300/1800/2800mm |
X axis rapid traverse speed | 1870mm/min |
Z axis rapid traverse speed | 3740mm/min |
X axis feed grade/range | 32/0.095-14mm/r |
Z axis feed grade/range | 32/0.095-14mm/r |
Tailstock quill diameter | Φ140mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 250mm |
Main spindle motor power | 15kw |
Rapid traverse motor power | 1.5kw |
Coolant pump motor power | 0.125kw |
Metric thread grade/range | 22 / 1-15mm |
Inch thread grade/range | 26 / 14-1T.P.I |
Machine length | 3700/4200/4700/5700mm |
Machine width/machine height | 1700x1600mm |
Machine weight | 7300/8000/8700/9700mm |
STANDARD ACCESSORIES:
Big bore chuck (Front & Rear)
Dead center
4-station tool post
Taper turning attachment
Cooling system
Work lamp
Chip collecting plate
General tools
Leveling wedge and bolts
Operation manual (English)
Dead center
4-station tool post
Taper turning attachment
Cooling system
Work lamp
Chip collecting plate
General tools
Leveling wedge and bolts
Operation manual (English)
OPTIONAL ACCESSORIES:
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Rear support for long pipe
Chuck guard
Tool-post guard
Rear splash guard
Rear support for long pipe
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction

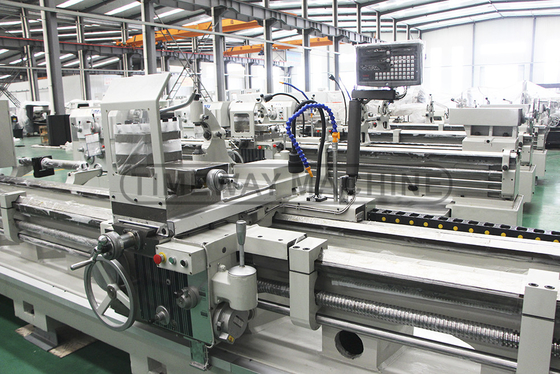

Factory Display：
