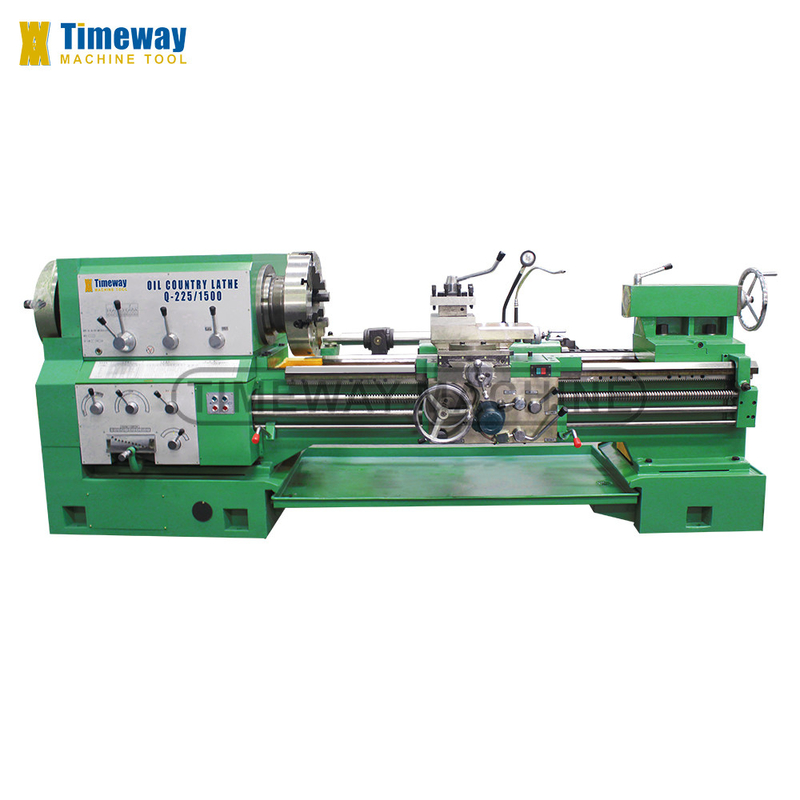

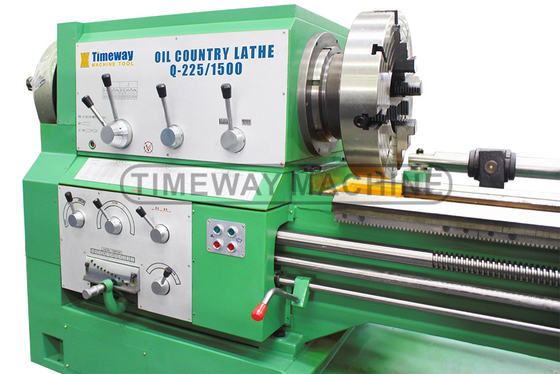

220mm Bed Width Oil Country Big Bore Lathe for Metal Q-225 Pipe Thread Horizontal Lathe
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | Q-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1350 | Range Of Spindle Speed(r.p.m): | 20 - 480 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Width Of Bed (mm): | 220 |
| Type: | Horizontal | Dimension(L*W*H): | 3700x1650x155 |
| Weight (KG): | 4500 KG | Warranty: | 1 Year |
| Key Selling Points: | High Rigidity | Marketing Type: | Hot Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Weight Of Workpiece(kg): | 3000 |
| Spindle Taper: | Other | Cutting Torque: | 266 N.m |
| Rapid Feed Speed(mm/min): | 2300 - 4000 Mm/min | Feed Speed(mm/min): | 2000 - 2600 Mm/min |
| Tool Post Stations: | 4 | Machine Type: | Horizontal Metal Turning Lathe Machine |
| Product Name: | Manual Metal Lathe Machine | After-sales Service Provided: | Online Support |
| Precision: | High Precision High Accuracy | Processing: | Metal Workpiece |
| CNC Or Not: | Nomal | Max. Swing Over Bed: | 630mm |
| Spindle Speed: | 20-480 | Motor Power: | 11kw |
Product Description
Product Description
Specification
Specification | Q-225 |
Max. swing over bed | 630/800mm |
Max. swing over cross slide | 340/520mm |
Distance between centers | 1500/3000mm |
Pipe threading range | 50-220mm |
Bed width | 550mm |
X-axis travel | 320/420mm |
Z-axis travel | 1350/2850mm |
Loading capacity | 3000kg |

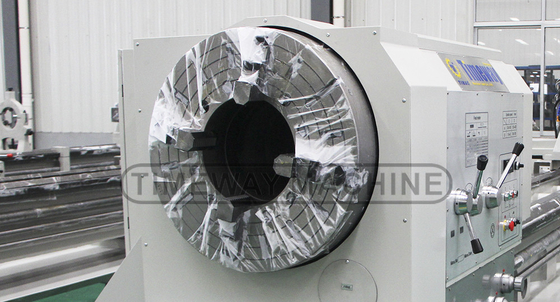

Spindle bore | 225mm |
Spindle speed steps | CCW: 12/CW: 9 |
Spindle speed | 20-480rpm |
Chuck size | 520mm |
Chuck type (manual) | 4-jaw |

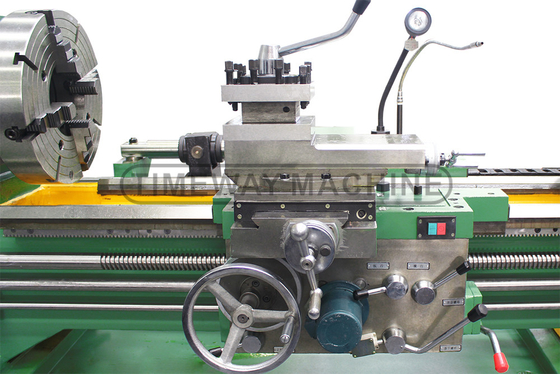

Turret type (manual) | V4 |
Tool shank size | 30x30mm |
X-axis feed range (steps) | 0.02-0.45 mm/r(22) |
X-axis rapid feed speed | 2300mm/min |
Z-axis feed range (steps) | 0.07-1.33mm/r (26) |
Z-axis rapid feed speed | 4000mm/min |
No. of Metric thread and range | 1-14 mm(24) |
No. of Inch thread and range | 28-2 TPI(40) |
Tailstock quill diameter | 100mm |
Tailstock quill taper | MT5 |
Tailstock quill travel | 250mm |
Main motor power | 11kw |
Rapid feed motor power | 0.3kw |
Coolant motor power | 0.125kw |
Machine dimensions (LxWxH) | 3700/5200x1650x1550mm |
Machine weight | 4500/5700kg |
STANDARD ACCESSORIES:

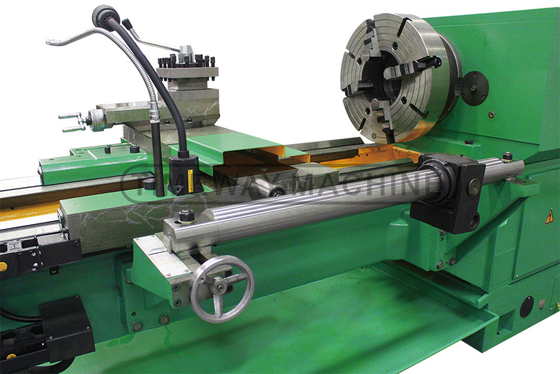

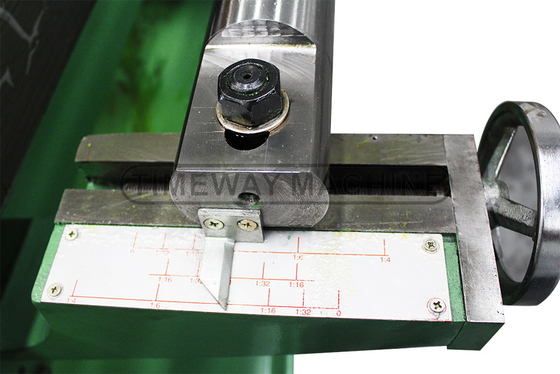

Big bore chuck (Front & Rear), Dead center, 4-station tool post, Taper turning attachment, Cooling system, Work lamp, Chip collecting plate, General tools, Leveling wedge and bolts, Operation manual (English).
OPTIONAL ACCESSORIES:
2 or 3-axis DRO, Chuck guard, Tool-post guard, Rear splash guard, Rear support for long pipe.
