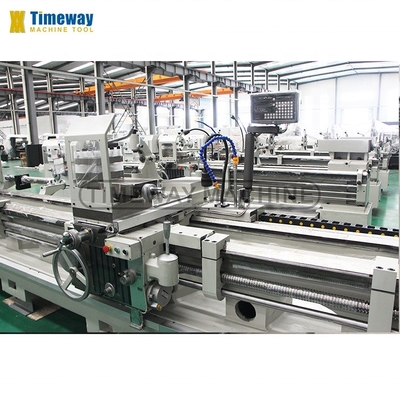

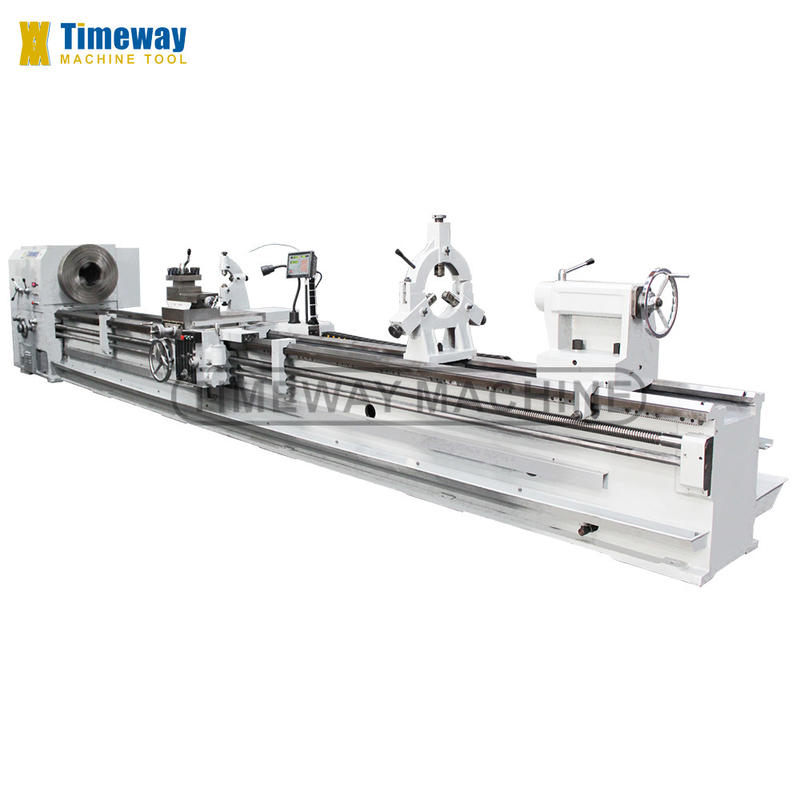

Distance between Centers 1500mm Pipe Threading Lathe Q-280F for Heavy Duty Machining
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-280F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $32,500.00/sets 1-3 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 100 - 300 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 15 | Weight (KG): | 8000 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 800 Mm | Swing Over Cross Slide: | 480 Mm |
| Distance Between Centers: | 1000/1500/2000/3000 Mm | Pipe Threading Range: | 70-275 Mm |
| Width Of Bed Way: | 600(Opt.650) | Spindle Bore: | 280 Mm |
| Spindle Speed Steps: | VF.2 Steps | Spindle Speed Range: | 20-100,100-300 Rpm |
| Chuck Size: | 780 Mm | Chuck Type: | 4-jaw Manual |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Energy & Mining, Other |
| Showroom Location: | UAE, Colombia, South Africa, Kazakhstan, Tajikistan | Core Components: | Bearing, Motor, Engine |
| Spindle Bore(mm): | 280 | Max. Turned Length (mm): | 275 Mm |
| Year: | 2024 | ||
Product Description
Product Description
This machine was designed for use in often harsh and demanding environment associated with OCTG production and integrates decades of experience.

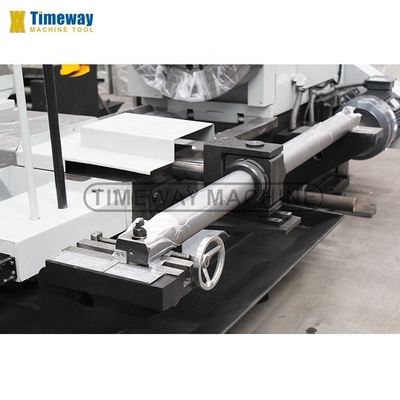

Equipped with taper turning attachment, can automatic feed turning inner an outer cone surface and threads.
Specification
Specifications | Q-280F |
Swing over bed | 800 mm |
Swing over cross slide | 480 mm |
Distance between centers | 1000/1500/3000 mm |
Pipe threading range | 70-280 mm |
Width of bed way | 600(Opt.650) mm |
Spindle bore | 280 mm |
Spindle speed steps | VF.2 steps |
Spindle speed range | 20-100,100-300 rpm |
Chuck size | 780 mm |
Chuck type | 4-jaw manual |

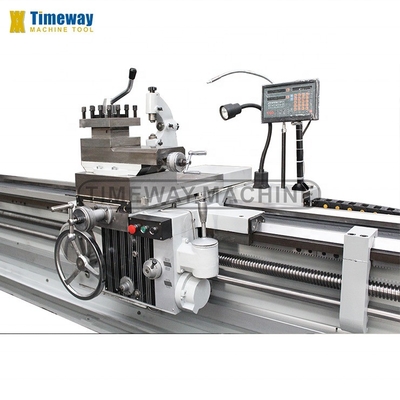

Turret type | Manual 4 position |
Tool shank | 40x40 mm |
X axis travel | 520 mm |
Z axis travel | 800/1300/1800/2800 mm |
X axis rapid traverse speed | 1870 mm/min |
Z axis rapid traverse speed | 3740 mm/min |
X axis feed grade/range | 32/0.095-14 mm/r |
Z axis feed grade/range | 32/0.095-14 mm/r |

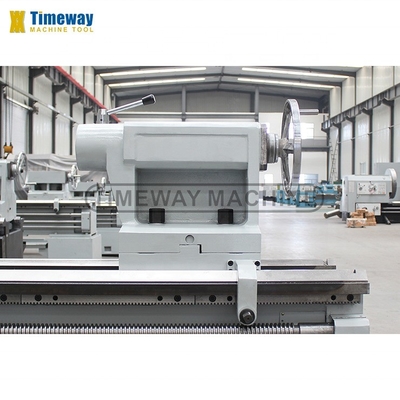

Tailstock quill diameter | 140 mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 250 mm |
Main spindle motor power | 15 kw |
Rapid traverse motor power | 1.5 kw |
Coolant pump motor power | 0.125 kw |
Metric thread grade/range | 22/1-15 mm |
Inch thread grade/range | 26/14-1 TPI |
Machine length | 3700/4200/4700/5700 mm |
Machine width/machine height | 1700x1600 mm |
Machine weight | 7300/8000/8700/9700 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
