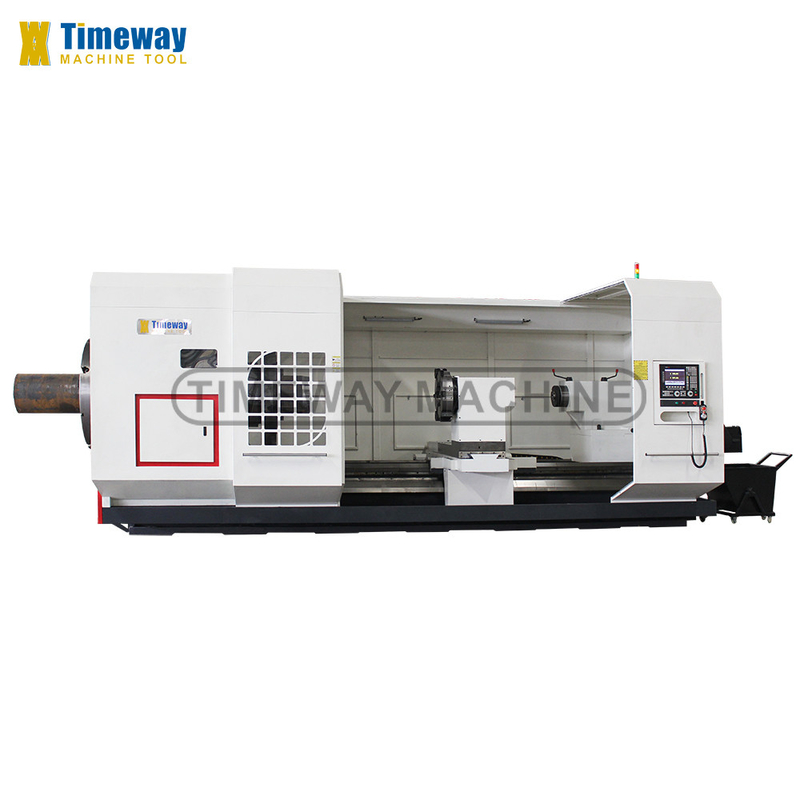

QK-550 High Rigidity CNC Pipe Thread Lathe High Accuracy Min. Time of Tool Change 6s
Product Details:
| Place of Origin: | China |
| Certification: | CE |
| Model Number: | QK-550 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1500 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 660 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 850 Mm |
| Travel (Z Axis)(mm): | 900 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 5500 3200 2800 |
| CNC Control System: | KND | Tool Post Stations: | 4 |
| Weight (KG): | 17800 | Warranty: | 1 Year |
| Key Selling Points: | High Safety Level, High-accuracy, High Rigidity | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 23 - 258 R.p.m | Travel (Y Axis)(mm): | 660 Mm |
| Spindle Taper: | - | Cutting Torque: | 66 N.m |
| Rapid Feed Speed(mm/min): | 4 - 6 Mm/min | Feed Speed(mm/min): | 6 - 8 Mm/min |
| Min. Time Of Tool Change(s): | 6 | Keyword: | Cnc Metal Lathe Machine |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Max. Swing Over Bed: | 1250mm | Distance Between Centers: | 1500mm |
| CNC System: | FANUC SIEMENS GSK | After Warranty Service: | 1 Year/12 Months |
| Spindle Speed Ranges: | 23-258rpm (2) | CNC Controller: | GSK SIEMENS FANUC SYNTEC |
Product Description
Product Description
Specification
|
Specification
|
QK-550
|
|
Pipe threading range
|
330-550mm
|
|
Max. swing over bed
|
1250mm
|
|
Max. swing over cross slide
|
900mm
|
|
Max. length of workpiece
|
1500/3000/5000mm
|
|
Max. turning length
|
1300/2850/4850mm
|
|
Span of guideway
|
1100mm
|
|
Spindle nose
|
A2-28
|
|
Spindle taper
|
-
|
|
Spindle bore
|
550mm
|
|
Spindle center taper
|
-
|
|
Spindle speed
|
Tailstock quill trave
|
|
Chuck size
|
1250mm
|
|
Min. feed increment of X/Z-axis
|
0.001/0.001mm
|
|
X/Z-axis rapid feed speed
|
4/6m/min
|
|
X-axis travel
|
850mm
|
|
Turret type
|
V4
|
|
Section of tool shank
|
50x50mm
|
|
Indexing repeatility
|
0.008mm
|
|
Max. cutting force
|
39200N
|
|
Tailstock quill diameter
|
260mm
|
|
Tailstock quill travel
|
300mm
|
|
Tailstock quill taper
|
Metric 80
|
|
Main motor power
|
37kw
|
|
Working accuracy
|
IT6-IT7um
|
|
Surface roughness
|
Ra1.6um
|
|
Machine length
|
5500/7000/9000mm
|
|
Machine width
|
3200mm
|
|
Machine height
|
2800mm
|
|
Machine weight
|
17.8/19/23tons
|
STANDARD ACCESSORIES:

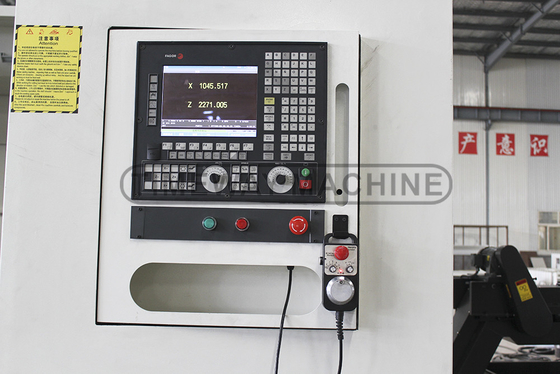

FANUC/GSK/SIEMENS CNC system,

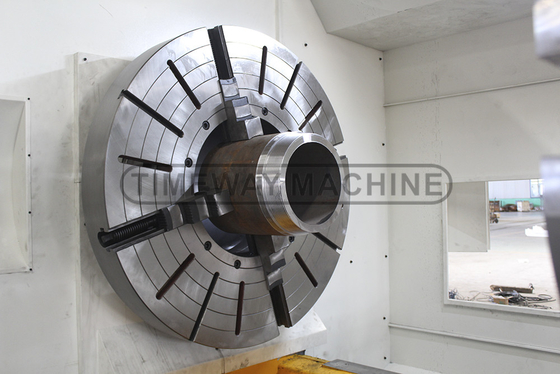

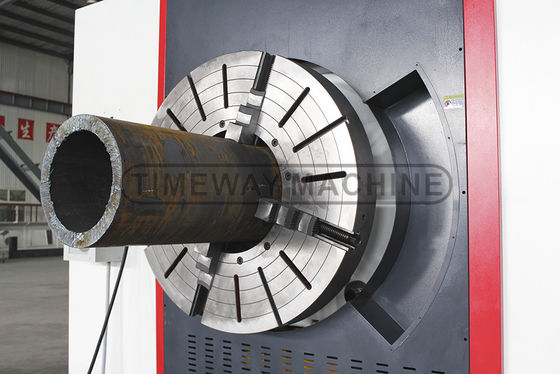

Big bore chuck (Front & Rear),

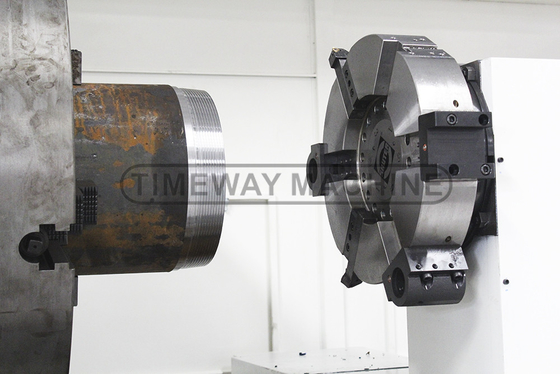

4-station electric tool-post,
Work lamp, Pilot lamp, Cooling system, Semi-closed guard, Manual pulse generator (MPG), Dead centers, Oil gun, Automatic lubrication pump,
Work lamp, Pilot lamp, Cooling system, Semi-closed guard, Manual pulse generator (MPG), Dead centers, Oil gun, Automatic lubrication pump,

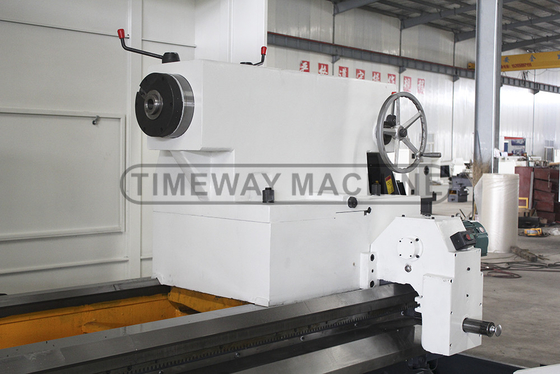

Manual moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
Penumatic chuck,
Other tool-post,
Chip conveyor,
Air conditioner,
Rear support for long pipe.
