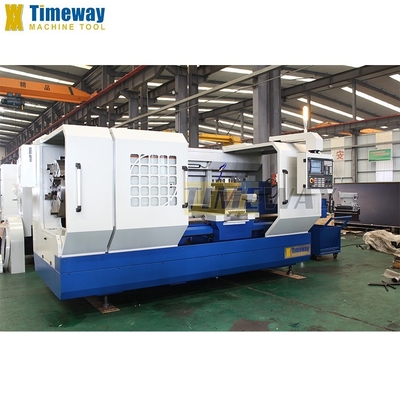

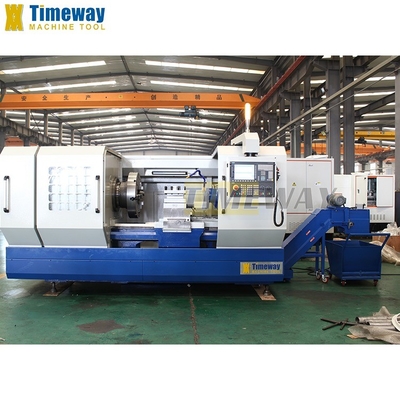

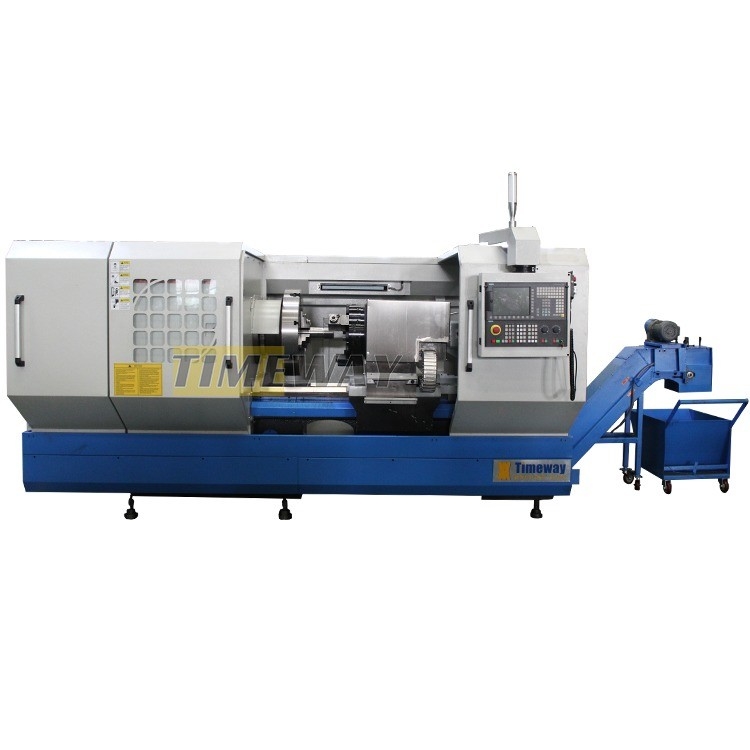

| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | QK-280 |
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,426.00/sets >=1 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000, 1500, 2000, 3000, 4000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 1800 | Width Of Bed (mm): | 400 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 1500 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Dimension(L*W*H): | 4800*2520*2120 | Voltage: | Optional |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 9000 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional, Competitive Price, High Safety Level, High-accuracy, Sustainable, High Productivity, Long Service Life, Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 5 - 400 R.p.m | Travel (Y Axis)(mm): | 0 Mm |
| Spindle Taper: | ISO40, BT40 | Cutting Torque: | 1985 N.m |
| Rapid Feed Speed(mm/min): | 0 - 4 Mm/min | Feed Speed(mm/min): | 0 - 5 Mm/min |
| Min. Time Of Tool Change(s): | 6 | CNC Or Not: | CNC Lathe Machine |
| Machine Type: | Turning | Product Name: | Horizontal Turning Machine |
| Keyword: | Cnc Metal Lathe Machine | Precision: | High Precision Machine |
| Color: | Customer Optional | Brand: | Timeway |
| Control System: | SIEMENS GSK FANUC (optional) | Max. Swing Over Bed: | 260mm |
| Distance Between Centers: | 2000 | ||
|
√ FANUC/SIEMENS/GSK CNC system

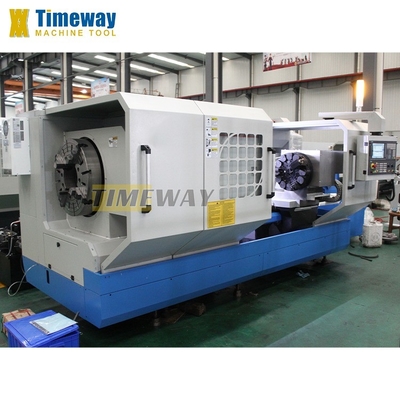

√ Big bore chuck (Front & Rear)
√ Dead centers

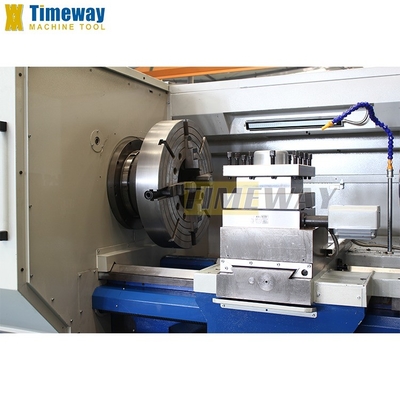

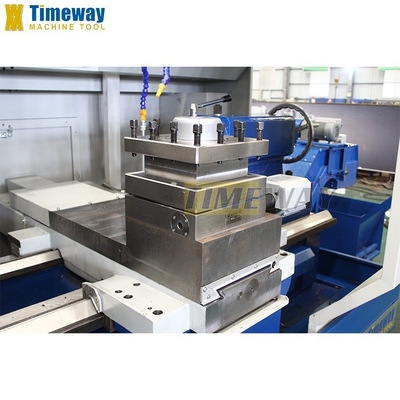

√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Automatic lubrication system
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
|
_ Pneumatic chuck
_ Other tool post
_ Steady rest
_ Follow rest
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Live centers |
|
Specification
|
Unit
|
QK-520
|
QK-550
|
QK-640
|
|
Pipe threading range
|
mm
|
330-510
|
330-550
|
330-630
|
|
Max. swing over bed
|
mm
|
1200
|
1250
|
1400
|
|
Max. swing over cross slide
|
mm
|
710
|
900
|
800
|
|
Max. length of workpiece
|
mm
|
1500/3000/5000
|
1500/3000/5000
|
1500/3000/5000
|
|
Max. turning length
|
mm
|
1250/2750
|
1250/2750/4750
|
1250/2750/4750
|
|
Span of guideway
|
mm
|
765
|
1100
|
1100
|
|
Spindle nose
|
-
|
Thread-type
|
A2-28
|
Thread-type
|
|
Spindle bore
|
mm
|
520
|
550
|
640
|
|
Spindle speed
|
rpm
|
8-190 (manual 3steps)
|
23-258 (Manual 2steps)
|
2-120 (manual 3steps)
|
|
Chuck size
|
mm
|
1000 (electric)
|
1250 (manual)
|
1250 (manual)
|
|
Min. feed increment of X/Z-axis
|
mm
|
0.001/0.001
|
0.001/0.001
|
0.001/0.001
|
|
X/Z-axis rapid feed speed
|
m/min
|
4/4
|
4/4
|
4/4
|
|
X-axis travel
|
mm
|
520
|
750
|
750
|
|
Turret type
|
mm
|
V4
|
V4
|
V4
|
|
Section of tool shank
|
mm
|
50x50
|
50x50
|
50x50
|
|
Indexing repeatility
|
mm
|
0.008
|
0.008
|
0.008
|
|
Max. cutting force
|
N
|
30000
|
30000
|
30000
|
|
Tailstock quill diameter
|
mm
|
160
|
260
|
260 (rotary quill)
|
|
Tailstock quill travel
|
mm
|
300
|
300
|
300
|
|
Tailstock quill taper
|
-
|
MT6
|
metric 80
|
Metric 80
|
|
Main motor power
|
kw
|
22
|
37
|
37
|
|
Working accuracy
|
um
|
IT6-IT7
|
IT6-IT7
|
IT6-IT7
|
|
Surface roughness
|
um
|
Ra1.6
|
Ra1.6
|
Ra1.6
|
|
Machine length
|
mm
|
5000/6500/9000
|
5500/7000/9000
|
5600/7100/9100
|
|
Machine width
|
mm
|
2300
|
2500
|
2500
|
|
Machine height
|
mm
|
2200
|
2500
|
2500
|
|
Machine weight
|
tons
|
15/16/20
|
17.8/19/23
|
18/19.3/24
|
|
CNC system
|
-
|
FANUC/SIEMENS
|
FANUC/SIEMENS
|
FANUC/SIEMENS
|
