Max. load capacity 6000 kg Horizontal Turning Lathe Q-280 *3M Heavy Duty Oil Country Lathe Machine /Torno
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-280 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,500.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 16 - 380 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 11500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 1000 Mm | Max. Swing Over Cross Slide: | 610 Mm |
| Distance Between Centers: | 1500/3000 Mm | Pipe Threading Range: | 130-270 Mm |
| Bed Width: | 755 Mm | X-axis Travel: | 520 Mm |
| Z-axis Travel: | 1350/2850 Mm | Max. Load Capacity: | 6000 Kg |
| Spindle Bore: | 280 Mm | Spindle Speed Steps: | 12 Steps |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Other |
| Showroom Location: | Pakistan, Morocco, Colombia, Kazakhstan | Core Components: | Motor, Engine |
| Spindle Bore(mm): | 280 | Max. Turned Length (mm): | 270 Mm |
| Year: | 2024 | ||
Product Description
Product Description

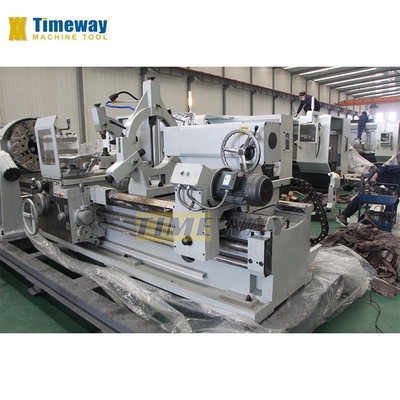

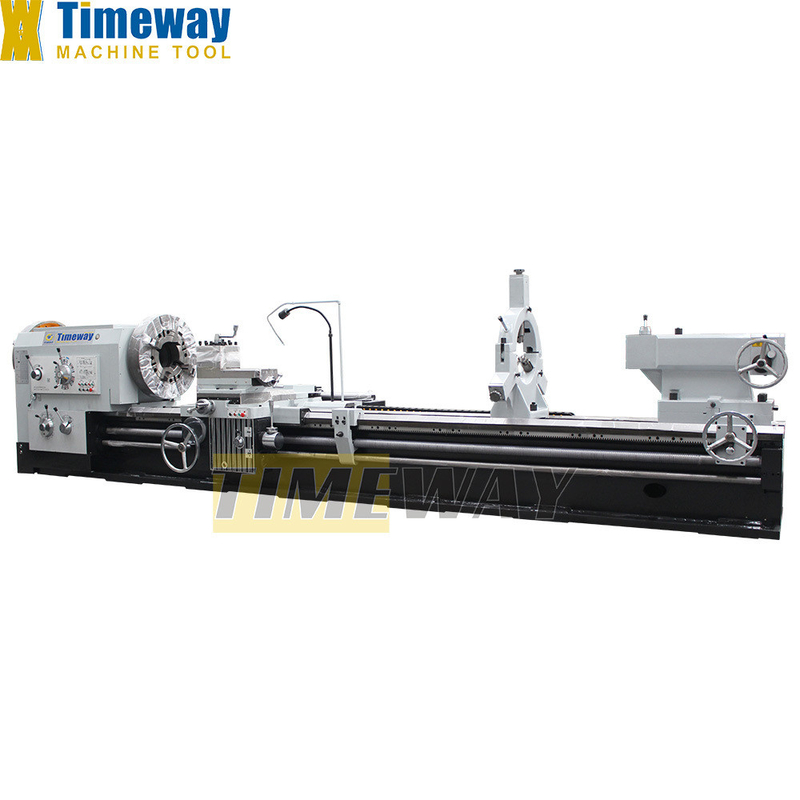

After years of improvement and running-in, this pipe threading lathe is already a high-performance lathe with mature structure and stable performance.
The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.

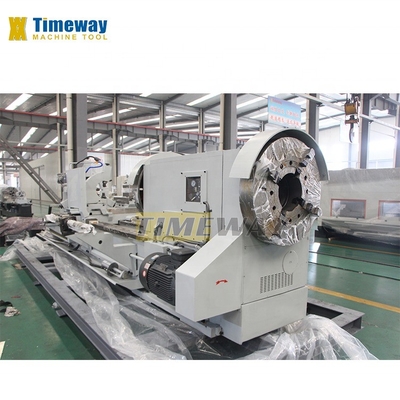

Equipped with front and rear manual 4-jaw chuck (800 mm)The lathe is mainly used in oil field, suitable for processing and repairing drill pipe, drill collar, coupling, casing, and so
on. At the same time suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, end face.
Specification
Specifications | Q-280 |
Max. swing over bed | 1000 mm |
Max. swing over cross slide | 610 mm |
Distance between centers | 1500/3000 mm |
Pipe threading range | 130-270 mm |
Bed width | 755 mm |
X-axis travel | 520 mm |
Z-axis travel | 1350/2850 mm |
Max. load capacity | 6000 kg |
Spindle bore | 280 mm |
Spindle speed steps | 12 steps |
Spindle speed | 16-380 rpm |
Chuck size | 800 mm |
Chuck type | 4-jaw manual |
Turret type (manual) | V4 |
Tool shank size | 45x45 mm |
X-axis feed range(steps) | 0.05-1.5(40) mm/r |
X-axis rapid feed | 1870 mm/min |
Z-axis feed range(steps) | 0.1-3(40) mm/r |
Z-axis rapid feed | 3740 mm/min |
No. of Metric thread and range | 1-30(30) mm |
No. of Inch thread and range | 1-28(27) TPI |

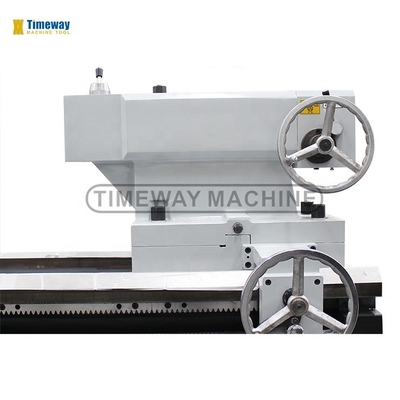

Tailstock quill diameter | 140 mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 300 mm |

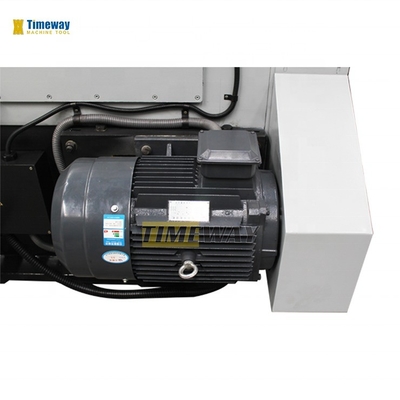

Main motor power | 22 kw |
Rapid motor power | 1.5 kw |
Coolant motor power | 0.125 kw |
Machine dimensions (LxWxH) | 4800/6400x2100x1600 mm |
Machine weight | 10000/11500 kg |
