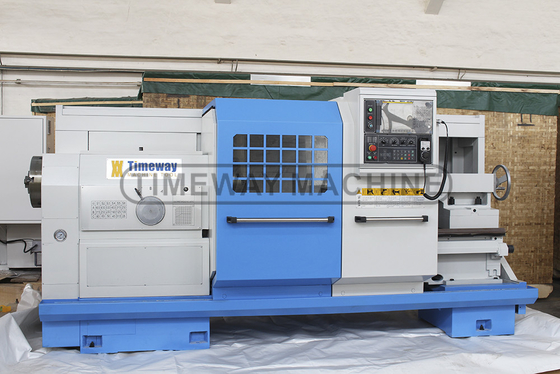

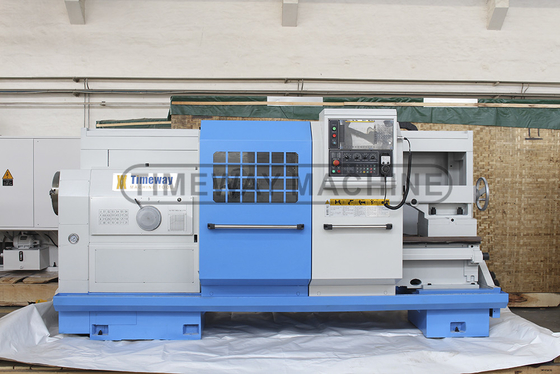

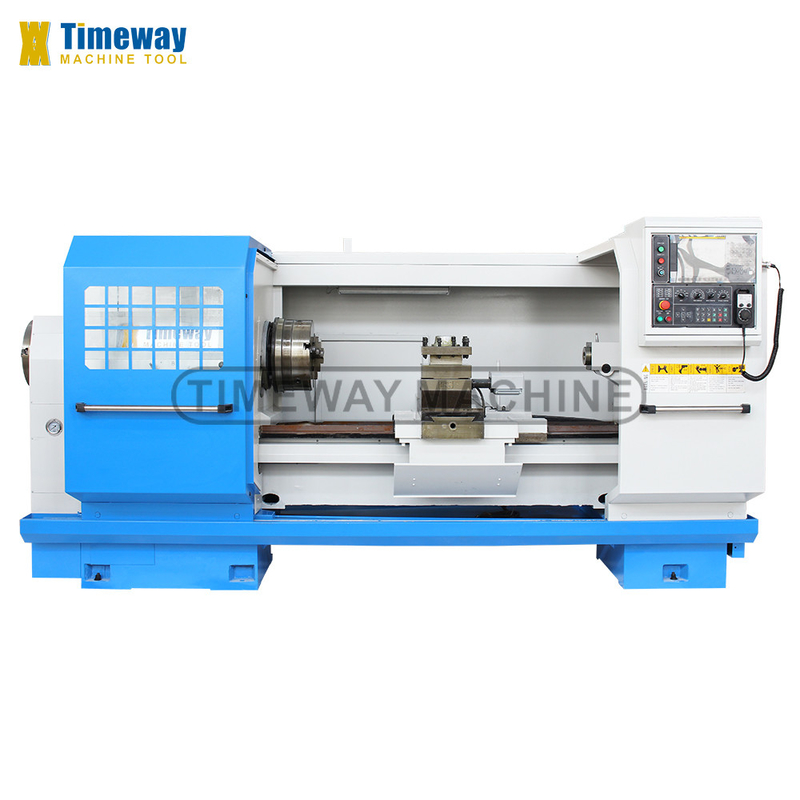

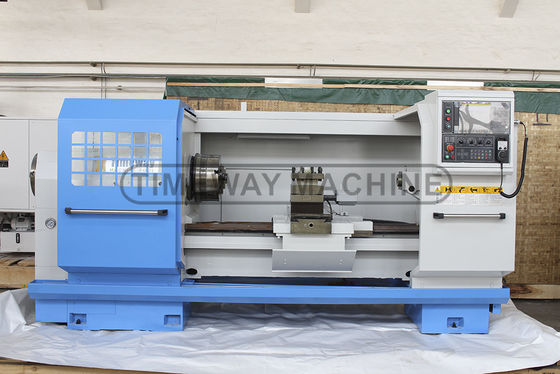

CNC Pipe Threading Lathe Torno QK-130 CNC Machine Max. Length of Workpiece mm 1000
Product Details:
| Place of Origin: | China |
| Model Number: | QK-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,666.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 1000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Max. Weight Of Workpiece(kg): | 5000 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 390 Mm |
| Travel (Z Axis)(mm): | 450 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 3227 1800 1850 |
| CNC Control System: | KND | Tool Post Stations: | 4 |
| Weight (KG): | 6600 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional, High Rigidity | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 20 - 1000 R.p.m | Travel (Y Axis)(mm): | 260 Mm |
| Spindle Taper: | Metric 140 | Cutting Torque: | 66 N.m |
| Rapid Feed Speed(mm/min): | 3 - 6 Mm/min | Feed Speed(mm/min): | 2 - 9 Mm/min |
| Min. Time Of Tool Change(s): | 6 | CNC Or Not: | CNC Lathe Machine |
| Precision: | High Precision Machine | Control System: | SIEMENS GSK FANUC |
| Spindle Speed: | 20-1000rpm (manual 3steps) | After Warranty Service: | 1 Year/12 Months |
| Max. Swing Over Bed: | 800mm | CNC Controller: | Fanuc Simens GSK |
| Distance Between Centers: | 1000/1500/2000/3000mm | Chuck Size: | 380mm (3-jaw) |
| Section Of Tool Shank: | 40 40mm | ||
Product Description
Product Description
Specification
Specification | QK-130 |
Pipe threading range | 30-120mm |
Max. swing over bed | 800mm |
Max. swing over cross slide | 450mm |
Max. length of workpiece | 1000/1500/2000/3000mm |
Max. turning length | 800/1350/1800/2800mm |
Bed width | 550mm |
Spindle nose | C15 |
Spindle taper | Metric 140 |
Spindle bore | 130mm |
Spindle center taper | MT6 |

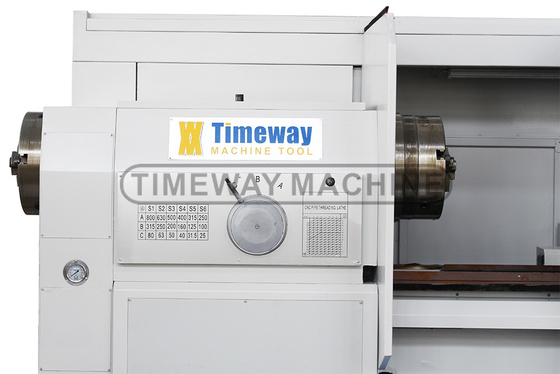

Spindle speed | 20-1000rpm (manual 3steps) |
Chuck size | Φ380mm (3-jaw) |
Min. feed increment of X/Z-axis | 0.001/0.001mm |
X/Z-axis rapid feed speed | 3/6m/min |
X-axis travel | 390mm |
Turret type | V4, □240 |
Section of tool shank | 40x40mm |
Indexing repeatility | 0.008mm |
Max. cutting force | 19600N |
Tailstock quill diameter | 100mm |
Tailstock quill travel | 250mm |
Tailstock quill taper | MT5 |
Main motor power | 11kw |
Working accuracy | IT6-IT7um |
Surface roughness | Ra1.6um |
Machine length | 3227/3677/4177/5177mnm |
Machine width | 1800mm |
Machine height | 1850mm |
STANDARD ACCESSORIES:

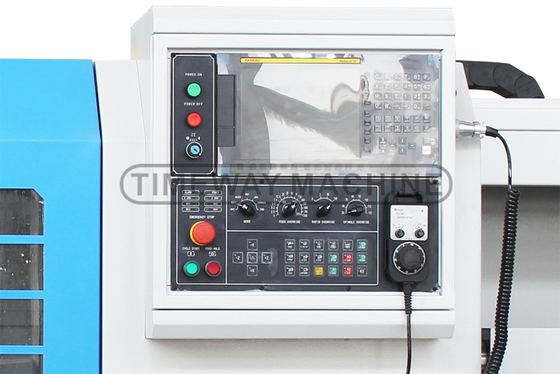

FANUC/GSK/SIEMENS CNC system,
Big bore chuck (Front & Rear),
4-station electric tool-post,
Work lamp,
Pilot lamp,
Semi-closed guard,
Manual pulse generator (MPG), Dead centers, Oil gun, Automatic lubrication pump,
Manual moving tailstock,
Tools & tool-box,
Leveling wedge & bolts,
Operation manual (English).
OPTIONAL ACCESSORIES:
Penumatic chuck,
Other tool-post,
Chip conveyor,
Air conditioner,
Rear support for long pipe.
