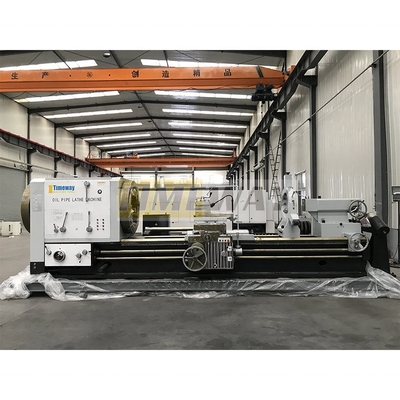

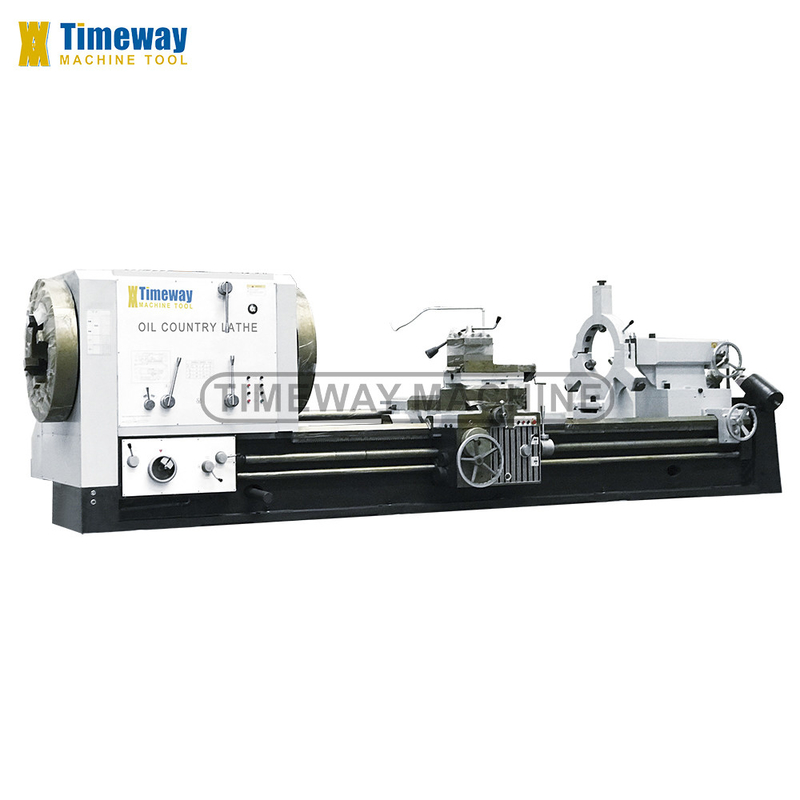

Other Machining Capabilities Q-520 Electric Lathe for Turning and Pipe Threading
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,800.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 4.9 - 180 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Weight (KG): | 16500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Hot Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Swing Over Bed: | 1200 Mm | Max. Swing Over Cross Slide: | 710 Mm |
| Distance Between Centers: | 1500/3000 Mm | Pipe Threading Range: | 330-510 Mm |
| Bed Width: | 755 Mm | X-axis Travel: | 520 Mm |
| Z-axis Travel: | 1350/2850 Mm | Max. Load Capacity: | 6000 Kg |
| Spindle Bore: | 520 Mm | Spindle Speed Steps: | 9 Steps |
| Condition: | New | Applicable Industries: | Building Material Shops, Energy & Mining, Other |
| Showroom Location: | Russia, South Korea, Romania, Nigeria | Core Components: | Gear, Motor, Engine |
| Spindle Bore(mm): | 520 | Max. Turned Length (mm): | 510 Mm |
| Year: | 2024 | ||
Product Description
Product Description
Specification
Specifications | Q-520 |
Max. swing over bed | 1200 mm |
Max. swing over cross slide | 710 mm |
Distance between centers | 1500/3000 mm |
Pipe threading range | 330-510 mm |
Bed width | 755 mm |
X-axis travel | 520 mm |
Z-axis travel | 1350/2850 mm |
Max. load capacity | 6000 kg |
Spindle bore | 520 mm |
Spindle speed steps | 9 steps |
Spindle speed | 4.9-180 rpm |

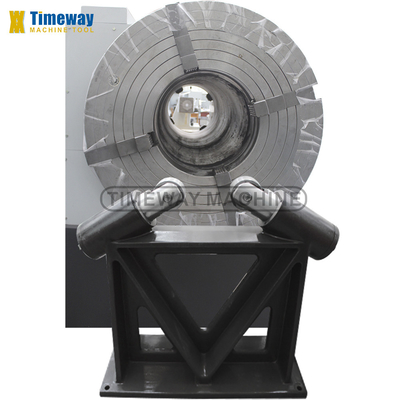

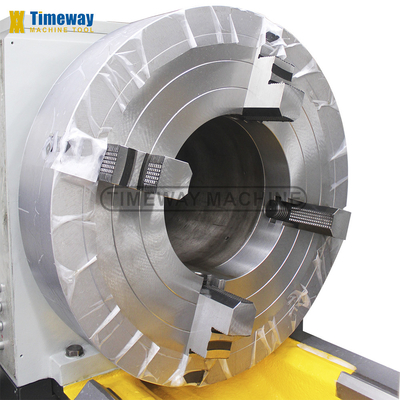

Chuck size | 1000 mm |
Chuck type | 4-jaw electric |
Turret type (manual) | V4 |
Tool shank size | 45x45 mm |
X-axis feed range (steps) | 0.05-0.75 (32) mm/r |
X-axis rapid feed speed | 1870 mm/min |
Z-axis feed range (steps) | 0.1-1.5 (32) mm/r |
Z-axis rapid feed speed | 3740 mm/min |
No. of Metric thread and range | 1-15 (23) mm |
No. of Inch thread and range | 2-28 (22) TPI |
Tailstock quill diameter | 160 mm |
Tailstock quill taper | MT6 |
Tailstock quill travel | 300 mm |
Main motor power | 22 kw |
Rapid motor power | 1.5 kw |
Coolant motor power | 0.125 kw |
Machine dimensions (LxWxH) | 5000/6500x2100x1800 mm |
Machine weight | 15000/16500 kg |
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
One-Stop Shopping
You can click on the picture to view the products you are interested in
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
