QK-190A CNC Oil Country Lathe Heavy Duty Machining Capacity and 1500kg Workpiece Weight
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE |
| Model Number: | QK-190A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | wooden case(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 Mm |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 1500 | Width Of Bed (mm): | 550 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | Twin |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 630 Mm |
| Travel (Z Axis)(mm): | 300 Mm | Positioning Accuracy (mm): | 0.02 Mm |
| Repeatability (X/Y/Z) (mm): | 0.01 | Dimension(L*W*H): | 3677x1800x1850mm |
| Voltage: | As Customer's Request | CNC Control System: | FANUC |
| Tool Post Stations: | 12 | Weight (KG): | 3000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Cnc Oil Country Lathe | Max. Diameter Of Pipe: | 190mm |
| Bed Width: | 550mm | Max. Weight Of Workpiece: | 1500kg |
| Spindle Bore: | 200mm | Spindle Speed: | 90-450rpm(8steps) |
| Control System: | FANUC Or SIEMENS CNC System | Max. Swing Diameter (mm): | 770 |
| Condition: | New | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | United States, Italy, Germany, Brazil, Indonesia, India, UAE, South Africa, Uzbekistan, Australia | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear | Max. Turned Length (mm): | 2850 |
| Year: | 2022 | Max. Spindle Speed (r.p.m): | 450 R.p.m |
| Spindle Bore(mm): | 200 | Port: | China Port. |
Product Description
CNC Oil Country Lathe
QK-120A QK-190A Qk-260A QK-350A Qk-460A

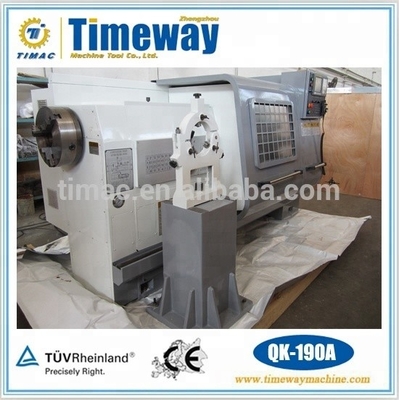

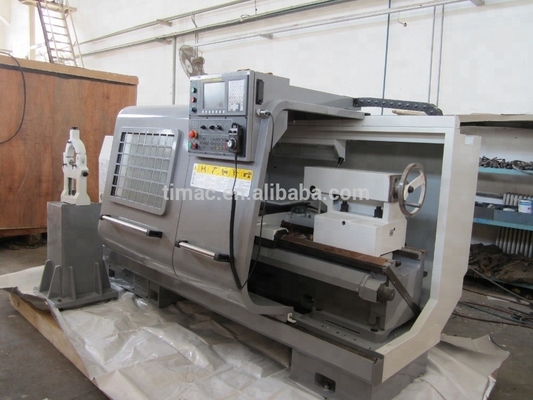

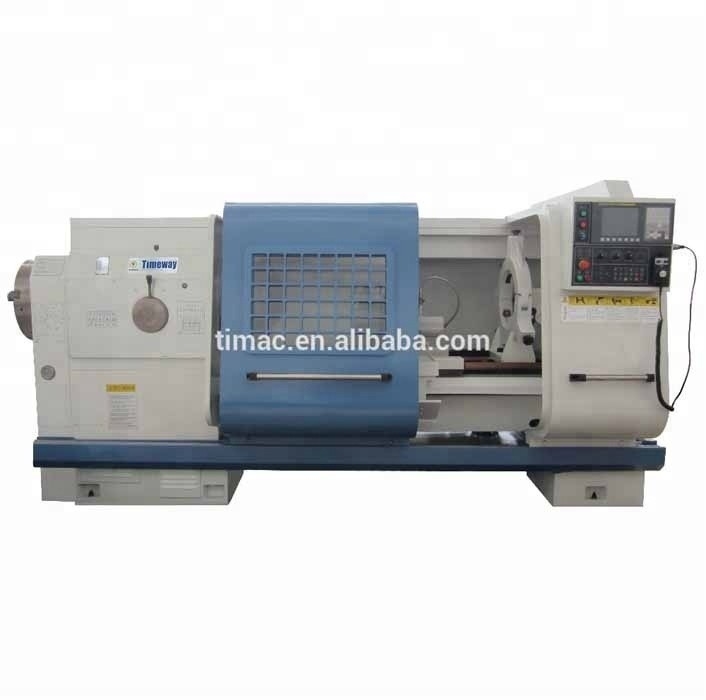

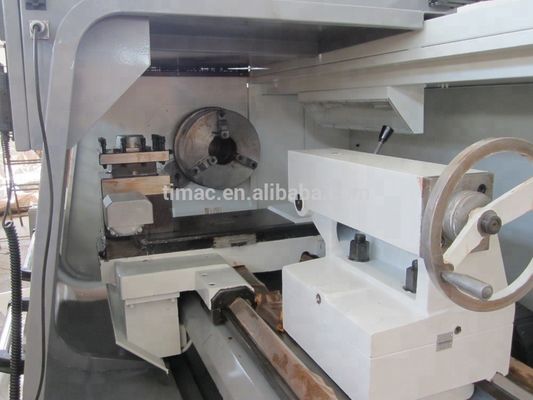

Main Outlook
Product Description
Features:
- This machine was designed for use in demanding petroleum industry applications and integrates decades of experience.
- Massive headstock with mian spindle running in tapered roller bearins, and two lathe chuck mounts.
- The wide machine bed features large, hardened and ground guideways and high rigidity.
- High torque drives and preloaded ball screws on all axes.
- Automatic 4-step gears with infinitely variable speed ranges.
- Hardened and ground gears for effective power transmission.
- Heavy-duty 4-station tool holder with automatic tool changing function.
- Including high performance coolant system, and central lubrication unit.
- Control technology with award-winning reliability and many years of experience-FANUC or SIEMENS CNC system.
- Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.
Technical Parameter:
| Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A |
| Swing over bed | mm | 770 | 1000 | 1100 | 1250 | |
| Swing over carriage | mm | 480 | 630 | 730 | 900 | |
| External diameter of pipes(manual chuck) | mm | 120 | 190 | 70-260 | 114-340 | 300-460 |
| External diameter of pipes(hydraulic chuck) | mm | --- | --- | --- | 127-340 | --- |
| External diameter of pipes(pneumatic chuck) | mm | --- | --- | --- | --- | --- |
| Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | ||
| Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | ||
| Span of guideway | mm | 550 | 755 | 1100 | ||
| Spindle nose | C11 | A2-15 | A2-28 | |||
| Step of Spindle speed(Three-phase asyn-chronous motor) | manual 3 steps, auto 6 steps 16 speeds | manual 2 steps, auto 4 steps 8 speeds | --- | --- | --- | |
| Step of Spindle speed(Variable frequency motor) | --- | --- | auto 4 gear steps,stepless speed change in the step. | |||
| Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | |
| Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | |
| Main motor power(Three-phase asyn-chronous motor) | kw | 11 | --- | --- | --- | |
| Main motor power(Variable frequency motor) | 18.5 | 28/38 | ||||
| Spindle bore | mm | 130 | 200 | 275 | 355 | 465 |
| Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | |
| Chuck type(hydraulic chuck) | --- | --- | --- | 3 jaw 760 | --- | |
| External diameter of pipes(pneumatic chuck) | --- | --- | --- | --- | --- | |
| Center height from bed | mm | 385 | 500 | 550 | 650 | |
| Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||
| Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | ||||
| Max.travel of x-axis | mm | 390 | 630 | 800 | ||
| Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||
| Indexing time | s | 2.5 | 4 | |||
| Indexing repeatility | mm | 0.008 | 0.01 | |||
| Section of tool shank | mm | 32 | 40 | |||
| Diameter of tailstock quill | mm | 100 | 160 | |||
| Travel of tailstock quill | mm | 250 | 300 | |||
| Taper hole of tailstock quill | Morse 5 | Morse 6 | ||||
| Workpiece accuracy | IT6-IT7 | |||||
| Surface roughness | μm | Ra1.6 | ||||
Standard Configurations:
- FANUC CNCsystem
- Vertical 4-station electric tool-post
- Electric Tailstock
- Manual 4-jaw chuck
- Central lubrication system
- Working light
- Coolant system
- Semi-closed cover
- Electric cabiner with air Conditioner
- Tool box and tools
- Programming manual
- Operator manual
Optional Configurations:
- SIEMENS/FAGOR CNC system
- Hydraulic chuck
- Hydraulic or manual tailstock
- Six and eight stations tool-post
- Hydraulic or pneumatic 3-jaw chuck
- Live center
- Special accessories
- Rear Support
Detail Images

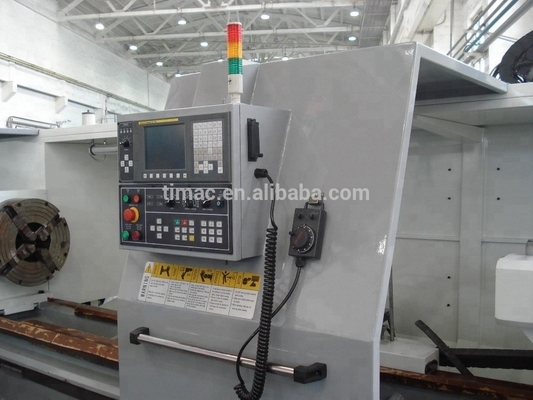

• Taper Threads of Pipe • FANUC CNC System

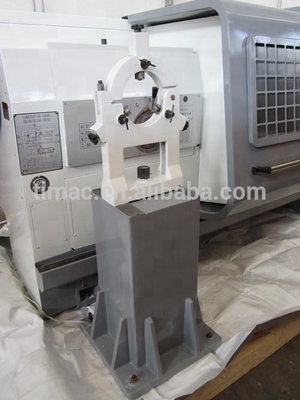

• Heavy-duty Rear Support • Light-type Rear Support
