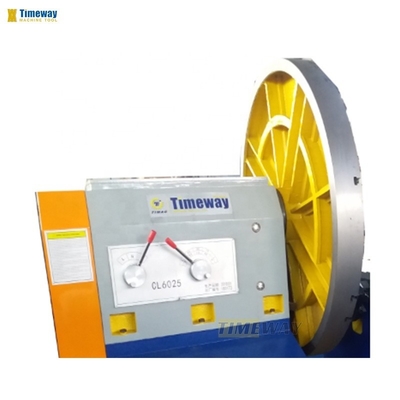

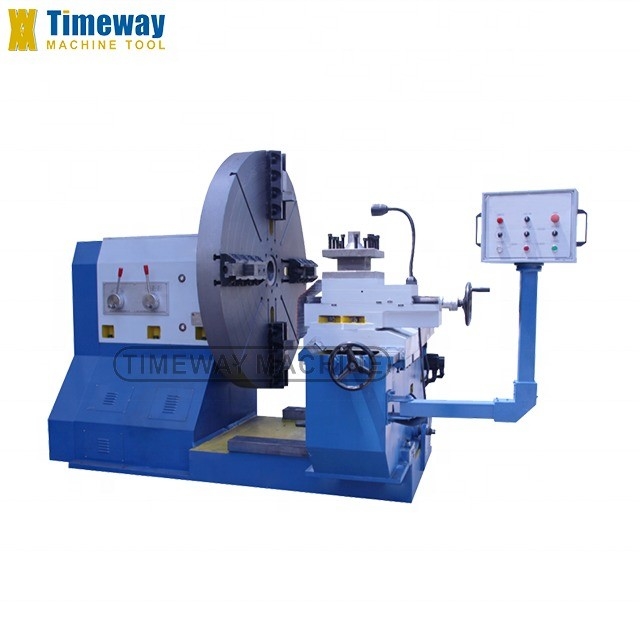

Highly Durable Large Size Floor Type Face Lathe Machine for Manual Operation
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | CE ISO |
| Model Number: | CL6025 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden case(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 700 | Range Of Spindle Speed(r.p.m): | 8 - 163 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 15 KW | Voltage: | 220V/380V |
| Weight (KG): | 10000 KG | Warranty: | 1 Year |
| Key Selling Points: | Sustainable | Marketing Type: | Hot Product 2019 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Automatic Grade: | Manual | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Machine Type: | Facing Lathe | Face Lathe Machine: | Chuck Lathe |
| Max. Swing Diameter: | 2500mm | Power: | 15kw |
| Max. Length Of Workpiece: | 700 Mm | Max. Cross Travel: | 320 Mm |
| Condition: | New | Spindle Bore(mm): | Other |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other | Showroom Location: | Brazil, Mexico, Thailand, Kenya, Chile, Colombia, South Africa |
| Core Components: | Motor, Other | Max. Turned Length (mm): | 700 Mm |
| Port: | China Port | ||
Product Description
Products Description
Key Features:
1. The machine is large floor lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel forgings and non-ferrous disc type rotating body metal parts machining;
2. All guideways are quenched and hardened, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed;
3. To complete the cylindrical,conical,end,grooving,etc,can meet part of the rough and fine turning;
4. All the gears are precision grounded, with long life and low noise.
1. The machine is large floor lathe, mainly suitable for high-speed steel or carbide cutting tools, cast iron, steel forgings and non-ferrous disc type rotating body metal parts machining;
2. All guideways are quenched and hardened, protection covers equipped for the guideways, free from the chips falling on the guideways, ensuring feed precision and speed;
3. To complete the cylindrical,conical,end,grooving,etc,can meet part of the rough and fine turning;
4. All the gears are precision grounded, with long life and low noise.
Specification | Unit | CL6025 | CL6030 |
Max. swing diameter over bed | mm | Φ 2500 | Φ 3000 |
Center high | mm | 1250 | 1500 |
Max. length of workpiece | mm | 700 | 700 |
Max. weight of workpiece | kg | 5000 | 5000 |
Chuck diameter | mm | Φ 2000 | Φ 2500 |
Spindle speed range | r.p.m | 8-163 | 12-66 |
Max. longitudinal travel | mm | 1250 | 1500 |
Max. cross travel | mm | 320 | 320 |
Main motor power | kw | 15 | 18.5 |
Why Choose Us
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
A: 1 . High quality with competitive price;
2 . Professional R&D team and 25 years export experience;
3 . Exported more than 60 countries;
4 . CE, ISO Certificates;
5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager);
6 . 12 months quality warranty;
7 . Oversea engineers available for problem resolving;
Q: Do you have QC or any safety standards for your machinery?
A: yes, we have established a highly strict quality control department to guanrantee good quality.
Q: What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set )
Q: What about the payment terms?
A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment;
(2) Irrevocable LC at sight;
(3) Western Union, MoneyGram, etc.
Q: How about the warranty?
A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
