3000mm Max. Workpiece Length Oil Country Hollow Spindle CNC Lathe with 130mm Spindle
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Certification: | ISO9001:2008; CE |
| Model Number: | QK-120Ax1M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $110,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 1500 | Width Of Bed (mm): | 550 Mm |
| Spindle Motor Power(kW): | 7.5 | No. Of Spindles: | Single |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 320 Mm |
| Travel (Z Axis)(mm): | 380 Mm | Dimension(L*W*H): | 3227x1800x1850mm |
| Voltage: | As Per Customer's Request | Tool Post Stations: | 4 |
| Weight (KG): | 3900 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | CNC Pipe Threading Lathe | Max. Diameter Of Pipe: | 120mm |
| Spindle Bore: | 130mm | Bed Width: | 550mm |
| Max. Weight Of Workpiece: | 1500kg | Spindle Speed: | 25-800rpm(16steps) |
| Control System: | FANUC CNC System | Maximum Length Of Workpiece: | 3000 |
| Warranty Period: | 1 Year | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works |
| Showroom Location: | Turkey, Germany, Brazil, Peru, Russia, Thailand, Algeria, Malaysia, Australia | Marketing Type: | Other |
| Core Components: | Bearing, Motor, Gear, Other, Gearbox | Max. Turned Length (mm): | 2580 |
| Max. Spindle Speed (r.p.m): | 450 R.p.m | Port: | China Port |
Product Description

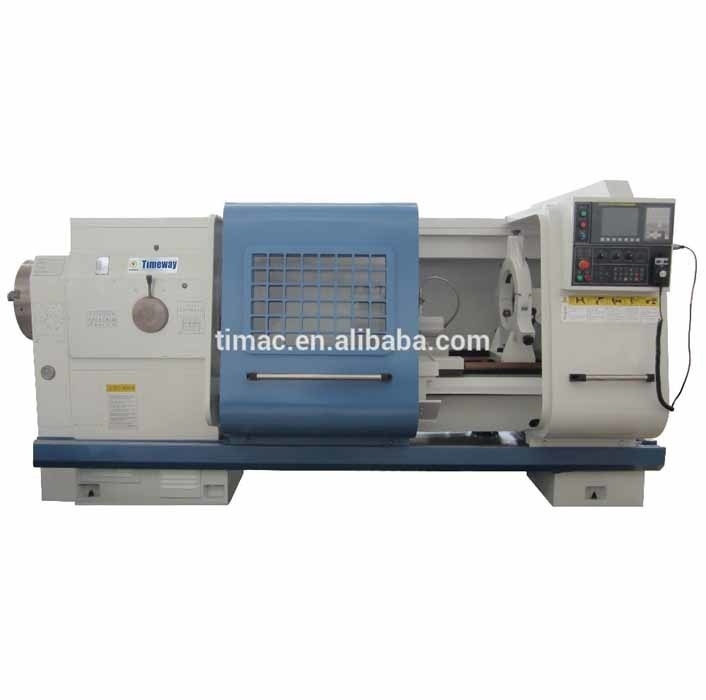

"130mm Spindle" Oil Country Hollow Spindle CNC Lathe
QK-120A QK-190A QK-260A QK-350A QK-460A
Main Outlook
Product Description
Application:
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Features:
- This machine was designed for use in demanding petroleum industry applications and integrates decades of experience.
- Massive headstock with mian spindle running in tapered roller bearins, and two lathe chuck mounts.
- The wide machine bed features large, hardened and ground guideways and high rigidity.
- High torque drives and preloaded ball screws on all axes.
- Automatic 4-step gears with infinitely variable speed ranges.
- Hardened and ground gears for effective power transmission.
- Heavy-duty 4-station tool holder with automatic tool changing function.
- Including high performance coolant system, and central lubrication unit.
- Control technology with award-winning reliability and many years of experience-FANUC or SIEMENS CNC system.

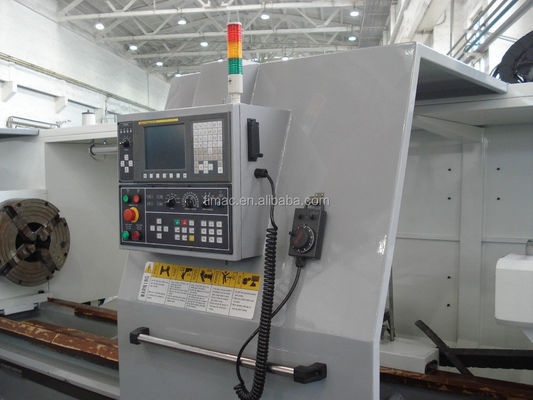

- Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces an
Technical Parameter:
| Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |
| Capacity | Centre height | 385 | 500 | 550 | 650 | ||
| Swing over bed | mm | 630 | 1000 | 1100 | 1250 | ||
| Swing over carriage | mm | 480 | 630 | 730 | 900 | ||
| External diameter of pipes (manual chuck) | mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |
| Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||
| Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||
| Span of guideway | mm | 550 | 755 | 1100 | |||
| Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 |
| Spindle nose | C11 | A2-15 | A2-28 | ||||
| Headstock | Step of Spindle speed(Three-phase asyn-chronous motor) | manual 3 steps,auto 6 steps 16 speeds | manual 2 steps,auto 4 steps 8 speeds | --- | --- | --- | |
| Step of Spindle speed(Variable frequency motor) | --- | --- | auto 4 gear steps,stepless speed change in the step. | ||||
| Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | ||
| Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | ||
| Main motor power(Three-phase asyn-chronous motor) | kw | 7.5 | --- | --- | --- | ||
| Main motor power (Variable frequency motor) | 18.5 | 28/38 | |||||
| Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | ||
| Feed | Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||
| Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | |||||
| Max.travel of x-axis | mm | 320 | 630 | 800 | |||
| Carriage | Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||
| Indexing time | s | 2.5 | 4 | ||||
| Indexing repeatility | mm | 0.008 | 0.01 | ||||
| Section of tool shank | mm | 32 | 40 | ||||
| Tailstock | Diameter of tailstock quill | mm | 100 | 160 | |||
| Travel of tailstock quill | mm | 250 | 300 | ||||
| Taper hole of tailstock quill | Morse 5 | Morse 6 | |||||
Standard Configurations:
- SIEMENS CNCsystem
- Vertical 4-station electric tool-post
- Electric Tailstock
- Manual 4-jaw chuck
- Central lubrication system
- Working light
- Coolant system
- Semi-closed cover
- Electric cabiner with air Conditioner
- Tool box and tools
- Programming manual
- Operator manual
Optional Configurations:
- FANUC/FAGOR CNC system
- Hydraulic chuck
- Hydraulic or manual tailstock
- Six and eight stations tool-post
- Live center
- Special accessories
Detail Images

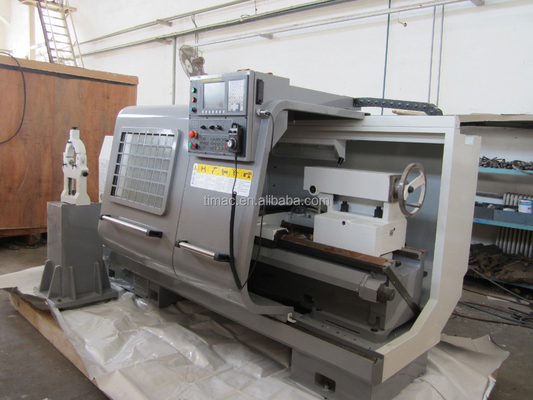

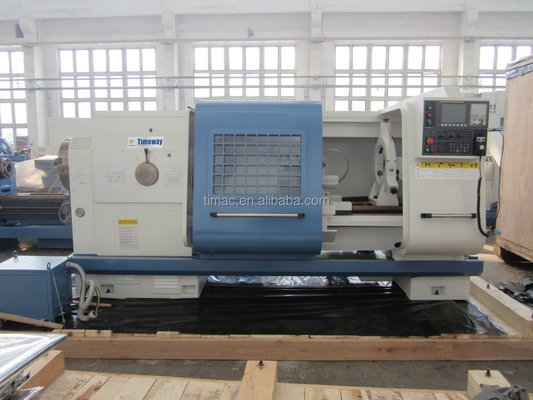

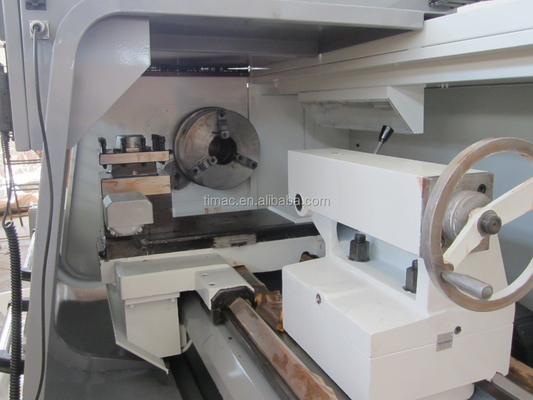

For more real machine, please check the following Photos:

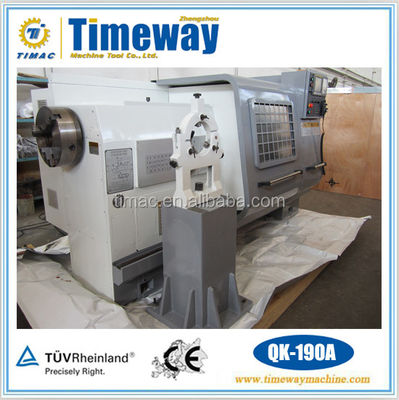

QK-120A & QK-190A
QK-260A
QK-350A & QK-460A
Automatic Bar Feeder Production Line
