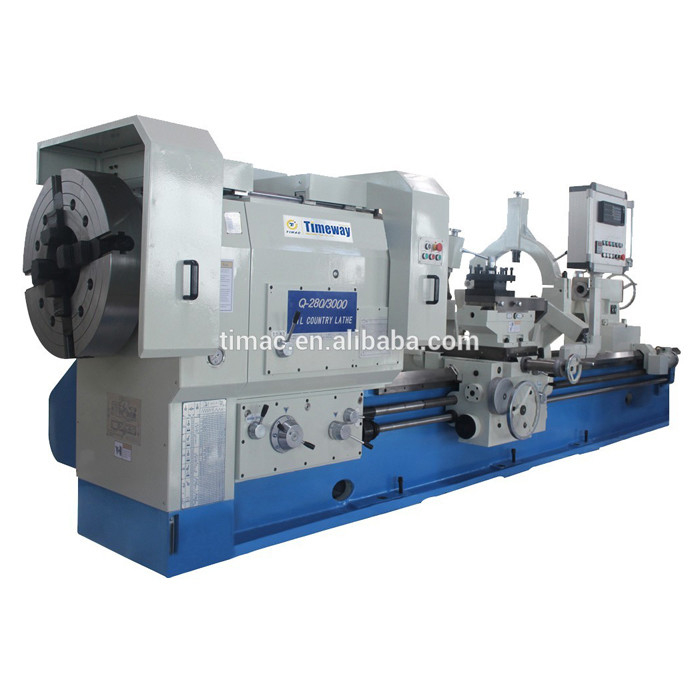

Special Oil Country Lathe Machine For Pipe Threading Max. Length of Workpiece 9000mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | Q-280S, Q-360S, Q-460S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $60,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 9000 | Range Of Spindle Speed(r.p.m): | 5 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 600 |
| Type: | Horizontal | Spindle Motor Power(kW): | 18.5 |
| Voltage: | 380v 50hz | Dimension(L*W*H): | As Actual |
| Weight (KG): | 15000 KG | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Other |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | After-sales Service Provided: | Engineers Available To Service Machinery Overseas |
| Color: | Customized Option | Spindle Bore: | 280/360/460mm |
| Bed Width: | 600/755/970mm | Spindle Speed: | 5/6.3-315rpm(8steps) |
| Name: | Pipe Threading Machine | Max. Swing Diameter: | 1000/1250mm |
| Max. Workpiece Length Between Centers: | 9000mm | Processing Capacity: | Heavy Duty |
| Max. Load Capacity Between Two Centers: | 4000kg | Condition: | New |
| Showroom Location: | France, Indonesia, Russia, Thailand, Chile, Malaysia, Australia | Spindle Bore(mm): | 460 |
| Max. Turned Length (mm): | 8800 Mm | Applicable Industries: | Manufacturing Plant, Other |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other | Port: | China Port |
Product Description
Summary
1.The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.
2.This lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage. 3.It is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
Product Description
Pipe Threading Machine
Feature：

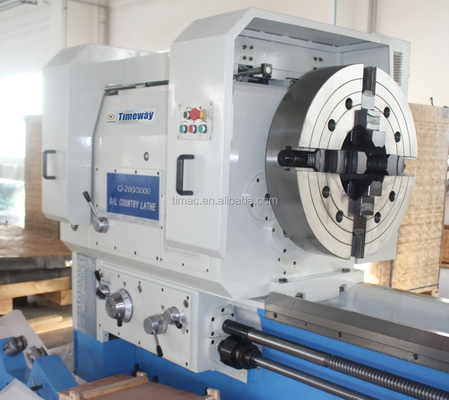

* The machine is equipped with a tapering unit which can work out a 1:4 taper. * The machine is able to cut both metric and with threads without changing the translating gear. * The dripping worm in the apron can protect the mechanisms of the lathe automatically. * The guide way is hardened and finely finished. * The great power of the machine is competent at heavy load and power cutting. * The floor center rest can be moved freely as required by the user. * The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor. * The double 4-jaw chucks offer free clamp of both short and long pipes.
Specification

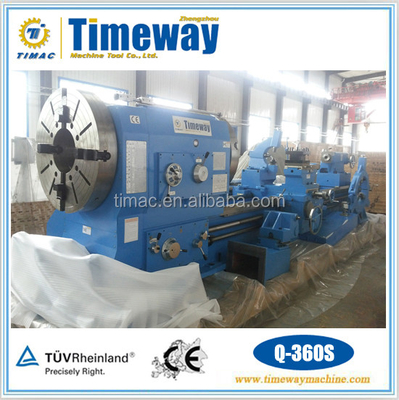

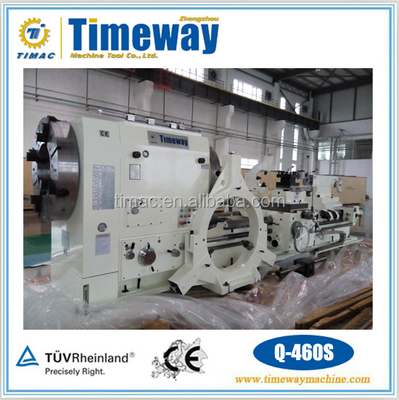

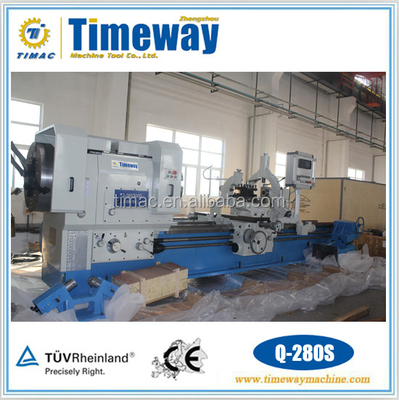

Specification | Unit | Q-280S | Q-360S | Q-460S | ||
Diameter of spindle bore | mm | Φ280 | Φ360 | Φ460 | ||
Max. swing over bed | mm | Φ1000 | Φ1000 | Φ1250 | ||
Max. swing over tool post | mm | Φ700 | Φ640 | Φ890 | ||
Max. workpiece lengt between centers | mm | 1500/2000/3000/4000/5000/6000/7000/8000/9000 | ||||
Max. turning length. | mm | 1300/1800/2800/3800/4800/5800/6800/7800/8800 | ||||
Max. load capacity between two centers | kg | 4000 | 6000 | 6000 | ||
Width of bed | mm | 600 | 755 | 970 | ||
Spindle speed step | steps | 8 | 8 | 8 | ||
Spindle speed range | rpm | 5-315 | 6.3-315 | 6.3-315 | ||
Main motor power | kw | AC18.5 | AC22 | AC30 | ||
Coolant pump power | kw | 0.15 | 0.15 | 0.15 | ||
Standard Configuration:
* 4-jaw chuch(front & rear) Steady rest Follow rest Taper turning attachment Oil gun Coolant system Working light Electric tailstock General tools Foundation bolts Operation manual(English edition)
