Large-scale Machining Capacity Heavy Duty Oil Country Manual Lathe with accuracy
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | Q-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 Mm | Range Of Spindle Speed(r.p.m): | 20 - 460 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Width Of Bed (mm): | 550 |
| Type: | Horizontal | Spindle Motor Power(kW): | 22 |
| Voltage: | 380v 50hz | Dimension(L*W*H): | 5000x2100x1630mm |
| Weight (KG): | 11500 KG | Warranty: | 1 Year, 1 Year |
| Key Selling Points: | High-accuracy | Marketing Type: | Ordinary Product |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | Normal |
| Machine Type: | Large Bore Pipe Threading Lathe | Max. Diameter Of Workpiece: | 320mm |
| Spindle Bore: | 330mm | Bed Width: | 755mm |
| Spindle Speed: | 7.5-280mm(12steps) | Width Of Bed: | 755MM |
| Max. Swing Diameter: | 1000mm | Max. Swing Diameter (mm): | 130 |
| Condition: | New | Spindle Bore(mm): | 130 |
| Applicable Industries: | Manufacturing Plant | Showroom Location: | Italy, Germany, Viet Nam, Romania, Australia |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other, PLC | Max. Turned Length (mm): | 3000 Mm |
| Port: | China Port | ||
Product Description

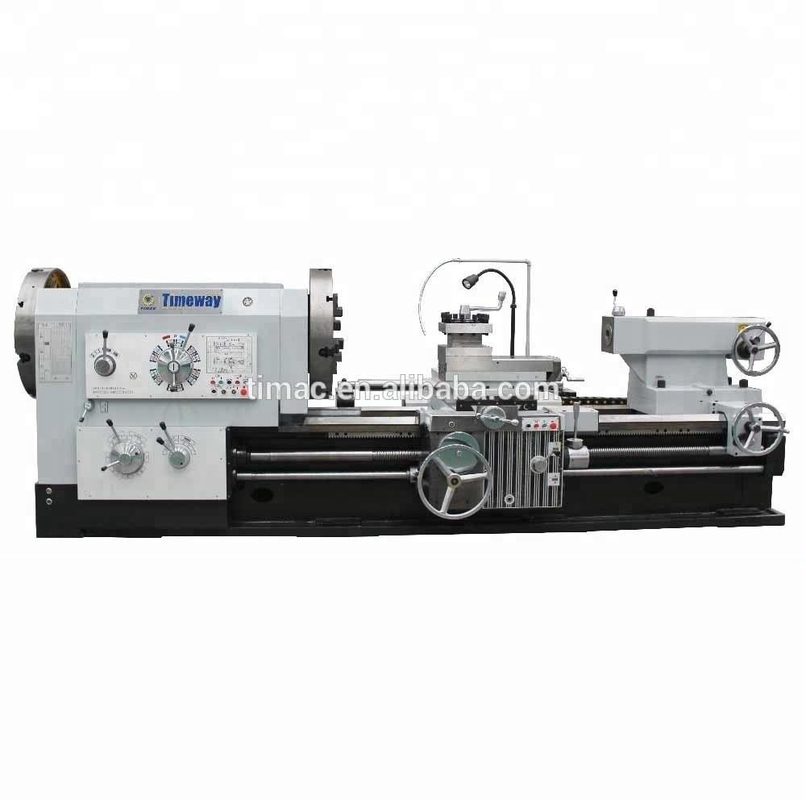

Oil Country Heavy Duty Manual Lathe
Application:
The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.
According to different diameter of workpieces, customer can choose different machine tools. We can provide follows:
Q-130 (130mm), Q-200 (200mm),
Q-225 (225mm), Q-240 (240mm),
Q-280 (280mm), Q-330 (330mm),
Q-390 (390mm), Q-440 (440mm),
Q-520 (520mm).

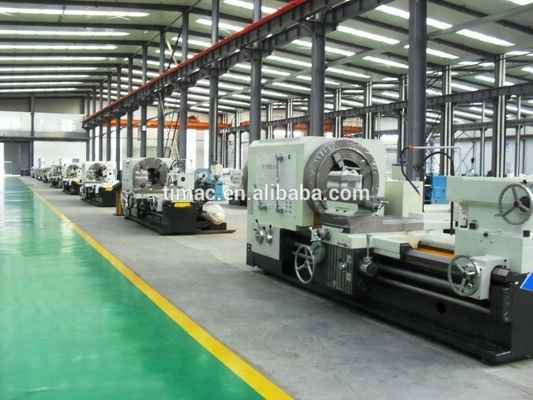

Main Outlook
Product Description
Features:
- The oil country lathes are used for turning pipe threads, inside and outside.
- They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
- Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
- High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
- Heavy machine bed made of premium cast-iron with hardened and ground guideways.
- Central, practical controls for feeds and thread leads.
- Wide spectrum of inch and metric threads.
- Gears are hardened and ground.
- Heavy-duty 4-station tool holder.
- Coolant system is included.
Technical Parameter:
Q-130 Q-200 Q-225 Q-240
| Specification | Unit | Q-130 | Q-200 | Q-225 | Q-240 | |
| Capacity | Swing over bed | mm | Φ630/Φ800 | Φ630/Φ800 | Φ630/Φ800 | Φ800 |
| Swing over cross slide | mm | Φ340/Φ540 | Φ340/Φ540 | Φ340/Φ540 | Φ480 | |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| Pipe threading range | mm | Φ30-126 | Φ50-193 | Φ50-220 | Φ60-230 | |
| Bed width | mm | 550 | 550 | 550 | 705 | |
| X-axis travel | mm | 320 | 320 | 320 | 320 | |
| Z-axis travel | mm | 1310/2810 | 1310/2810 | 1310/2810 | 1310/2810 | |
| Max. load capacity | kg | 3000 | 3000 | 3000 | 3000 | |
| Spindle | Spindle bore | mm | Φ130 | Φ200 | Φ225 | Φ240 |
| Spindle speed steps | steps | FWD.18/REV.9 | FWD.12/REV.6 | FWD.12/REV.6 | 12 | |
| Spindle speed | rpm | 12-642/19-800 | 24-300/38-384 | 24-300/38-384 | 20-460 | |
| Chuck size | mm | Φ400 | Φ520 | Φ520 | Φ630 | |
| Chuck type | - | 3-jaw manual | 4-jaw manual | 4-jaw manual | 4-jaw electric | |
| Turret | Turret type | - | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations |
| Tool shank size | mm | 32x32 | 32x32 | 32x32 | 32x32 | |
| Turret travel | mm | 200 | 200 | 200 | 200 | |
| Feed | X-axis feed kinds/range | mm/r | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 |
| X-axis rapid feed | mm/min | 2300 | 2300 | 2300 | 2300 | |
| Z-axis feed kinds/range | mm/r | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | |
| Z-axis rapid feed | mm/min | 4000 | 4000 | 4000 | 4000 | |
| Thread Cutting | No. of Metric thread and range | mm | 52/1-224 | 24/1-14 | 24/1-14 | 1-15 |
| No. of Inch thread and range | T.P.I. | 40/2-28 | 40/2-28 | 40/2-28 | 1-14 | |
| No. of Module thread and range | mm | - | - | - | 0.5-7.5 | |
| No. of DP thread and range | D.P. | - | - | - | 2-28 | |
| Tailstock | Tailstock quill diameter | mm | Φ100 | Φ100 | Φ100 | Φ100 |
| Tailstock quill taper | - | MT5# | MT5# | MT5# | MT5# | |
| Tailstock quill travel | mm | 250 | 250 | 250 | 250 | |
| Power | Main motor power | kw | 7.5 | 7.5 | 7.5 | 18.5 |
| Rapid motor power | kw | 0.3 | 0.3 | 0.3 | 1.1 | |
| Coolant motor power | kw | 0.125 | 0.125 | 0.125 | 0.125 | |
| Others | Machine dimensions | mm | 3657/5157 x1360x1480 | 3657/5157 x1360x1555 | 3657/5157 x1360x1555 | 4190/5690 x2000x1520 |
| Machine weight | kg | 3800/4600 | 4200/5050 | 4300/5150 | 8500/9500 | |
Q-280 Q-330 Q-390 Q-440 Q-520
| Specification | Unit | Q-280 | Q-330 | Q-390 | Q-440 | Q-520 | |
| Capacity | Swing over bed | mm | Φ1000 | Φ1000 | Φ1000 | Φ1000 | Φ1250 |
| Swing over cross slide | mm | Φ610 | Φ610 | Φ610 | Φ610 | Φ810 | |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| Pipe threading range | mm | Φ130-270 | Φ190-320 | Φ190-380 | Φ270-430 | Φ350-510 | |
| Bed width | mm | 755 | 755 | 755 | 755 | 755 | |
| X-axis travel | mm | 520 | 520 | 520 | 520 | 520 | |
| Z-axis travel | mm | 1300/2800 | 1300/2800 | 1300/2800 | 1300/2800 | 1300/2800 | |
| Max. load capacity | kg | 5000 | 5000 | 5000 | 5000 | 5000 | |
| Spindle | Spindle bore | mm | Φ280 | Φ330 | Φ390 | Φ440 | Φ520 |
| Spindle speed steps | steps | 12 | 9 | 9 | 9 | 9 | |
| Spindle speed | rpm | 16-380 | 7.5-280 | 6-205 | 4.9-180 | 4.9-180 | |
| Chuck size | mm | Φ800 | Φ780 | Φ850 | Φ1000 | Φ1000 | |
| Chuck type | - | 4-jaw manual | 4-jaw electric | 4-jaw electric | 4-jaw electric | 4-jaw electric | |
| Turret | Turret type | - | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations |
| Tool shank size | mm | 40x40 | 40x40 | 40x40 | 40x40 | 40x40 | |
| Turret travel | mm | 300 | 300 | 300 | 300 | 300 | |
| Feed | X-axis feed kinds/range | mm/r | 64/0.05-12.15 | 22/0.02-0.45 | 32/0.095-1.44 | 22/0.02-0.45 | 32/0.095-1.44 |
| X-axis rapid feed | mm/min | 1870 | 1870 | 1870 | 1870 | 1870 | |
| Z-axis feed kinds/range | mm/r | 64/0.1-24.3 | 26/0.07-1.33 | 32/0.095-1.4 | 26/0.07-1.33 | 32/0.095-1.4 | |
| Z-axis rapid feed | mm/min | 3740 | 3740 | 3740 | 3740 | 3740 | |
| Thread Cutting | No. of Metric thread and range | mm | 30/1-30 | 23/1-15 | 23/1-15 | 23/1-15 | 23/1-15 |
| No. of Inch thread and range | T.P.I. | 27/1-28 | 22/2-28 | 22/2-28 | 22/2-28 | 22/2-28 | |
| No. of Module thread and range | mm | - | - | - | - | - | |
| No. of DP thread and range | D.P. | - | - | - | - | - | |
| Tailstock | Tailstock quill diameter | mm | Φ140 | Φ140 | Φ140 | Φ140 | Φ140 |
| Tailstock quill taper | - | MT6# | MT6# | MT6# | MT6# | MT6# | |
| Tailstock quill travel | mm | 300 | 300 | 300 | 300 | 300 | |
| Power | Main motor power | kw | 22 | 22 | 22 | 22 | 22 |
| Rapid motor power | kw | 1.5 | 1.5 | 1.5 | 1.5 | 1.5 | |
| Coolant motor power | kw | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |
| Others | Machine dimensions | mm | 5000/6500 x2100x1600 | 5000/6500 x2100x1630 | 5000/6500 x2100x1680 | 5000/6500 x2100x1680 | 5000/6500 x2100x1700 |
| Machine weight | kg | 10000/11500 | 11500/13000 | 12800/14300 | 13000/14500 | 15000/16500 | |
Standard Configuration:
- 3/4 - jaw chuck, 2 sets
- Taper turning device, 1 set
- Out board support, 1 piece
- Manual moving tailstock
- Chuck & tool post guard
- Coolant system, Halogen light
- Maintenance tool & tool box
- Operation manual in English
Detail Images

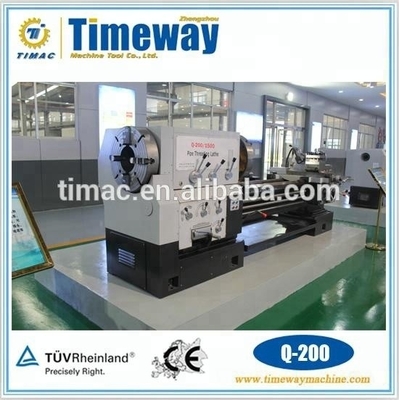

Q-130 & Q-200:

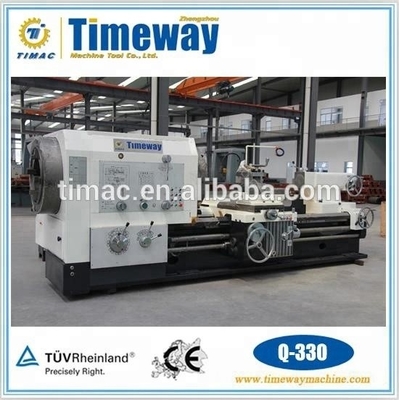

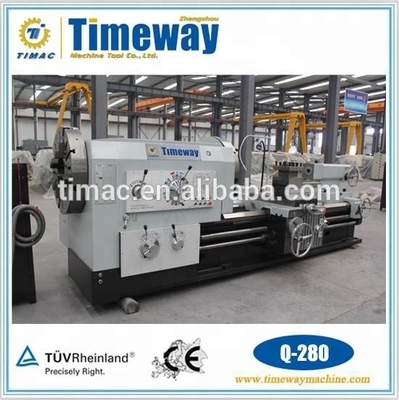

Q-280 & Q-330:

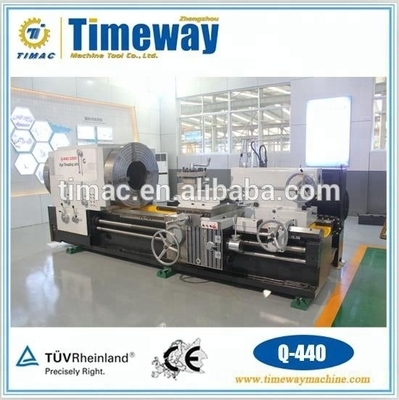

Q-440 & Q-520:
