16-380rpm Spindle Speed Manual Horizontal Tube Threading Lathe for Oil Field 130-270mm
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | Q-280 x3M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $52,736.00/sets 1-2 sets |
| Packaging Details: | In plywood cases. |
| Supply Ability: | 200 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 16 - 380 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Voltage: | As Request |
| Dimension(L*W*H): | 6500x2100x1600mm | Weight (KG): | 11500 KG |
| Warranty: | 1 Year | Key Selling Points: | Energy Saving |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | Engine Pipe Thread Lathe | Machining Pipe Diameter Range: | 130-270mm |
| Spindle Bore: | 280mm | Bed Width: | 755mm |
| Max. Weight Of Workpiece: | 5000kg | Spindle Speed: | 16-380rpm(12steps) |
| Chuck Size: | 800mm(4-jaw Manual) | Max. Swing Diameter: | 1000mm |
| Weight: | 11500kg | Power: | 22kw |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Restaurant, Construction Works , Energy & Mining |
| Showroom Location: | Canada, Turkey, Germany, Indonesia, Mexico, Russia, Romania | Core Components: | Bearing, Gear, Motor, Engine |
| Max. Turned Length (mm): | 3000 Mm | Spindle Bore(mm): | 280 |
| Year: | 2022 | Port: | China Port. |
Product Description
Manual Horizontal Tube Threading Lathe for Oil Field
Q-200 Q-225 Q-240 Q-280 Q-330

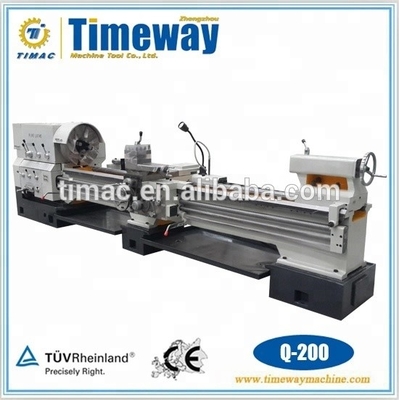

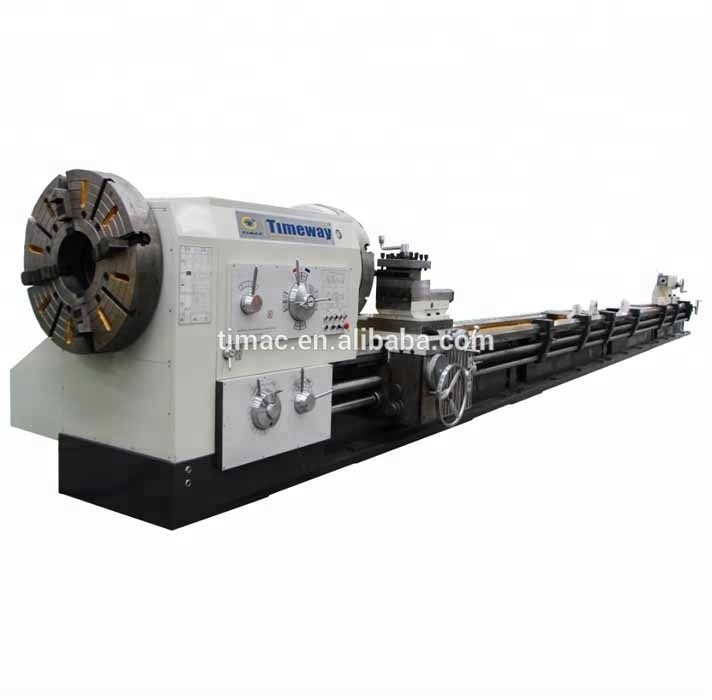

Main Outlook
Product Description
Features:
- The oil country lathes are used for turning pipe threads, inside and outside.
- They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
- Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
- High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
- Heavy machine bed made of premium cast-iron with hardened and ground guideways.
- Central, practical controls for feeds and thread leads.
- Wide spectrum of inch and metric threads.
- Gears are hardened and ground.
- Heavy-duty 4-station tool holder.
- Coolant system is included.

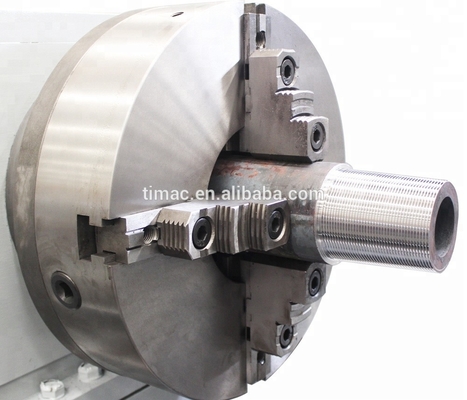

Machining Inner and Outer Taper Threads:
Technical Parameter:
| Specification | Unit | Q-200 | Q-225 | Q-240 | Q-280 | Q-330 | |
| Capacity | Swing over bed | mm | Φ630/Φ800 | Φ630/Φ800 | Φ800 | Φ1000 | Φ1000 |
| Swing over cross slide | mm | Φ340/Φ540 | Φ340/Φ540 | Φ480 | Φ610 | Φ610 | |
| Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | |
| Pipe threading range | mm | Φ50-193 | Φ50-220 | Φ60-230 | Φ130-270 | Φ190-320 | |
| Bed width | mm | 550 | 550 | 705 | 755 | 755 | |
| X-axis travel | mm | 320 | 320 | 320 | 520 | 520 | |
| Z-axis travel | mm | 1310/2810 | 1310/2810 | 1310/2810 | 1300/2800 | 1300/2800 | |
| Max. load capacity | kg | 3000 | 3000 | 3000 | 5000 | 5000 | |
| Spindle | Spindle bore | mm | Φ200 | Φ225 | Φ240 | Φ280 | Φ330 |
| Spindle speed steps | steps | FWD.12/REV.6 | FWD.12/REV.6 | 12 | 12 | 9 | |
| Spindle speed | rpm | 24-300/38-384 | 24-300/38-384 | 20-460 | 16-380 | 7.5-280 | |
| Chuck size | mm | Φ520 | Φ520 | Φ630 | Φ800 | Φ780 | |
| Chuck type | - | 4-jaw manual | 4-jaw manual | 4-jaw electric | 4-jaw manual | 4-jaw electric | |
| Turret | Turret type | - | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations | Manual 4 stations |
| Tool shank size | mm | 32x32 | 32x32 | 32x32 | 40x40 | 40x40 | |
| Turret travel | mm | 200 | 200 | 200 | 300 | 300 | |
| Feed | X-axis feed kinds/range | mm/r | 22/0.02-0.45 | 22/0.02-0.45 | 22/0.02-0.45 | 64/0.05-12.15 | 22/0.02-0.45 |
| X-axis rapid feed | mm/min | 2300 | 2300 | 2300 | 1870 | 1870 | |
| Z-axis feed kinds/range | mm/r | 26/0.07-1.33 | 26/0.07-1.33 | 26/0.07-1.33 | 64/0.1-24.3 | 26/0.07-1.33 | |
| Z-axis rapid feed | mm/min | 4000 | 4000 | 4000 | 3740 | 3740 | |
| Thread Cutting | No. of Metric thread and range | mm | 24/1-14 | 24/1-14 | 1-15 | 30/1-30 | 23/1-15 |
| No. of Inch thread and range | T.P.I. | 40/2-28 | 40/2-28 | 1-14 | 27/1-28 | 22/2-28 | |
| No. of Module thread and range | mm | - | - | 0.5-7.5 | - | - | |
| No. of DP thread and range | D.P. | - | - | 2-28 | - | - | |
| Tailstock | Tailstock quill diameter | mm | Φ100 | Φ100 | Φ100 | Φ140 | Φ140 |
| Tailstock quill taper | - | MT5# | MT5# | MT5# | MT6# | MT6# | |
| Tailstock quill travel | mm | 250 | 250 | 250 | 300 | 300 | |
| Power | Main motor power | kw | 7.5 | 7.5 | 18.5 | 22 | 22 |
| Rapid motor power | kw | 0.3 | 0.3 | 1.1 | 1.5 | 1.5 | |
| Coolant motor power | kw | 0.125 | 0.125 | 0.125 | 0.125 | 0.125 | |
| Others | Machine dimensions | mm | 3657/5157 x1360x1555 | 3657/5157 x1360x1555 | 4190/5690 x2000x1520 | 5000/6500 x2100x1600 | 5000/6500 x2100x1630 |
| Machine weight | kg | 4200/5050 | 4300/5150 | 8500/9500 | 10000/11500 | 11500/13000 | |
Standard Configuration:
- 4 - jaw independent chuck, 2 sets
- Taper turning device, 1 set
- Out board support, 1 piece
- Manual moving tailstock
- Chuck & tool post guard
- Coolant system, Halogen light
- Maintenance tool & tool box
- Operation manual in English
Detail Images

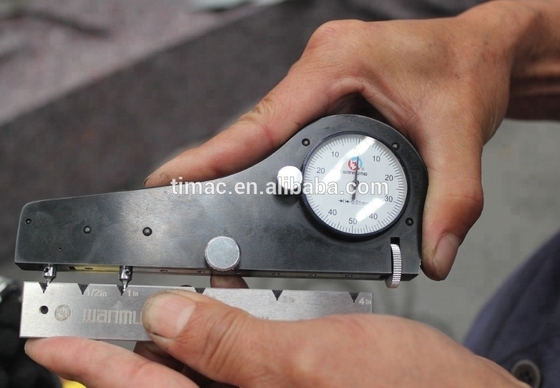

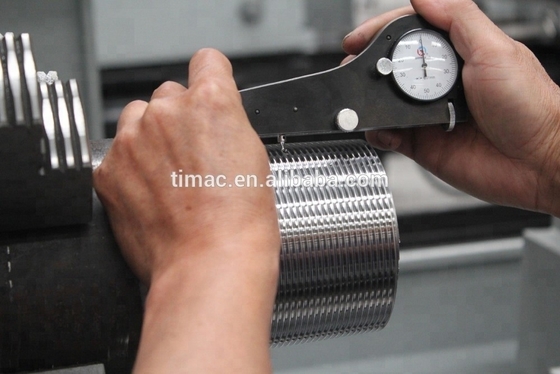

Taper Threads Cutting and Testing:

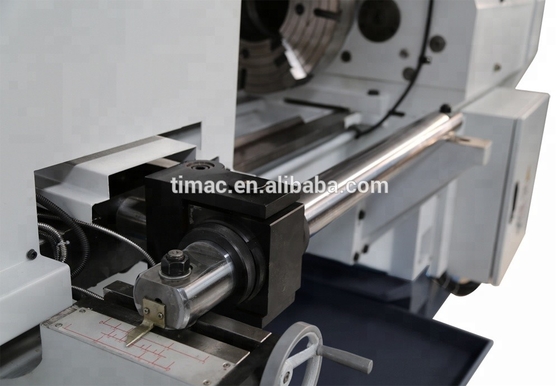

Taper Turning Device:
