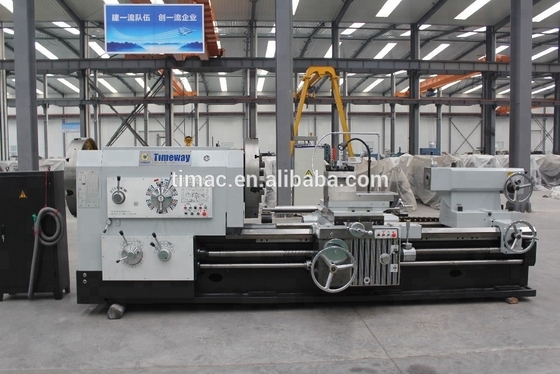

3 Meter Conventional Double Chuck Lathe Machine for and Max. Turned Length of 3000 mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Certification: | CE ISO |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Machining Capacity: | Heavy Duty |
|---|---|---|---|
| Type: | Horizontal | Voltage: | As Per Customer Request |
| Dimension(L*W*H): | 6500x2100x1600mm | Weight (KG): | 11500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | Other | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | Machine Type: | Flat Bed Pipe Thread Turning Machine |
| Workpiece Length: | 3000mm | Spindle Bore: | 280mm |
| Processing Capacity: | Heavy Duty | Max. Weight Of Workpiece: | 5000kg |
| Name: | Pipe Threading Lathe | Chuck Size: | 800mm(4-jaw Manual) |
| Max. Swing Diameter: | 1000mm | Condition: | New |
| Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Construction Works , Other | Showroom Location: | Turkey, Germany, Brazil, Peru, Russia, Thailand, Romania, Malaysia, Australia |
| Core Components: | Bearing, Gear, Motor, Gearbox, Other | Spindle Bore(mm): | 280 |
| Max. Turned Length (mm): | 3000 Mm | Port: | China Port |
Product Description
Summary
1.The series lathe is including all functions and performances of common lathe, it is used for turning internal and external (taper) threads. So pipe threading lathe can become a kind of special-use lathe.
2.The oil country lathes are used for turning pipe threads, inside and outside. 3.They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
Product Description

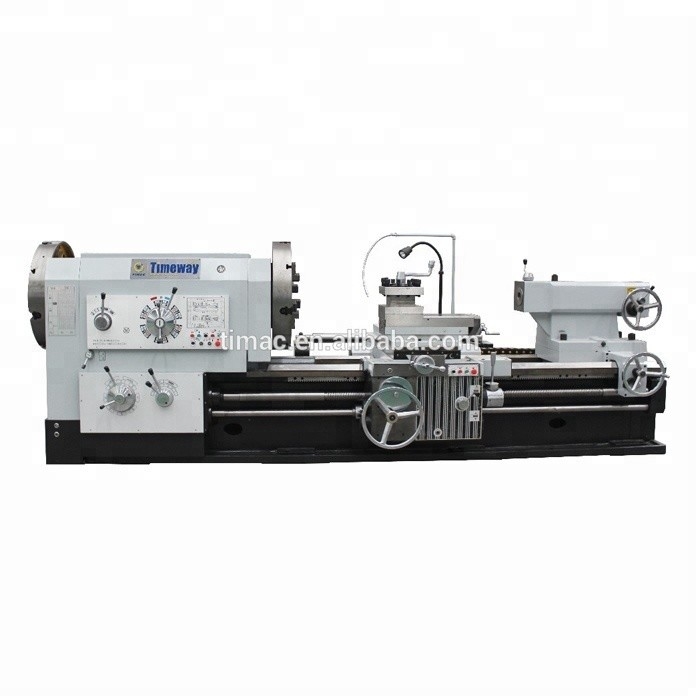

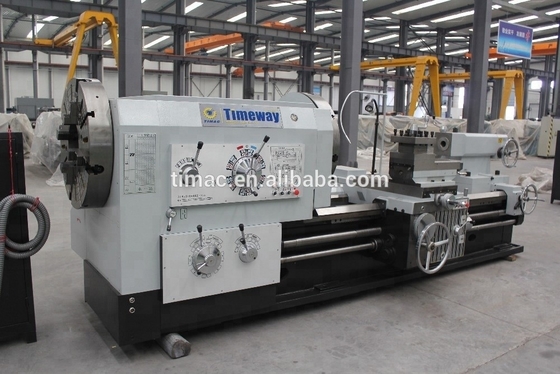

Big Bore Double Chuck Horizontal Lathe
Feature：

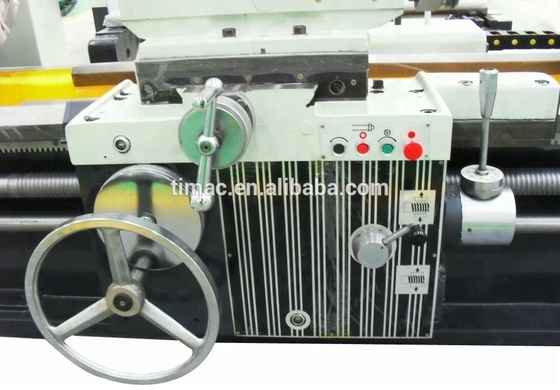

1.Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides 2.High torque at the working spindle ensures high chip removal rates when machining parts with large diameters. 3.Heavy machine bed made of premium cast-iron with hardened and ground guideways. Central, practical controls for feeds and thread leads. 4.Wide spectrum of inch and metric threads. 5.Gears are hardened and ground. 6.Heavy-duty 4-station tool holder. 7.Coolant system is included.
Specification
Specification | Unit | Q-130 | Q-200 | Q-225 | Q-240 | ||
Capacity | Swing over bed | mm | Φ630/Φ800 | Φ630/Φ800 | Φ630/Φ800 | Φ800 | |
Swing over cross slide | mm | Φ340/Φ540 | Φ340/Φ540 | Φ340/Φ540 | Φ480 | ||
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 | ||
Pipe threading range | mm | Φ30-126 | Φ50-193 | Φ50-220 | Φ60-230 | ||
Bed width | mm | 550 | 550 | 550 | 705 | ||
X-axis travel | mm | 320 | 320 | 320 | 320 | ||
Z-axis travel | mm | 1310/2810 | 1310/2810 | 1310/2810 | 1310/2810 | ||
Max. load capacity | kg | 3000 | 3000 | 3000 | 3000 | ||
Spindle | Spindle bore | mm | Φ130 | Φ200 | Φ225 | Φ240 | |
Spindle speed steps | steps | FWD.18/REV.9 | FWD.12/REV.6 | FWD.12/REV.6 | 12 | ||
Spindle speed | rpm | 12-642/19-800 | 24-300/38-384 | 24-300/38-384 | 20-460 | ||
Chuck size | mm | Φ400 | Φ520 | Φ520 | Φ630 | ||
Chuck type | - | 3-jaw manual | 4-jaw manual | 4-jaw manual | 4-jaw electric | ||
Standard Configuration:
* 4 - jaw chuck, 2 sets

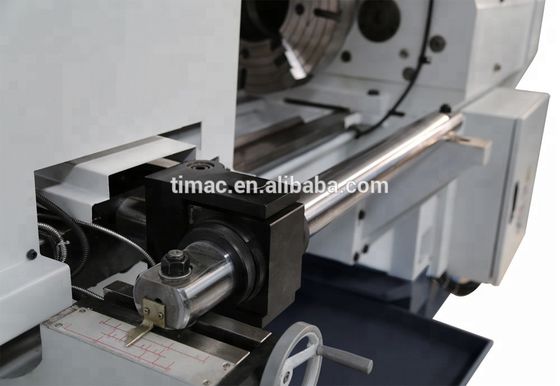

* Taper turning device, 1 set

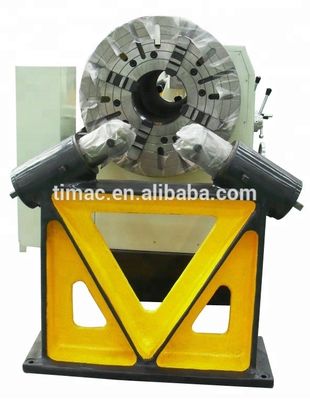

* Out board support, 1 piece
* Manual/electric moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
* DRO (Optional)
* Taper turning device, 1 set
* Out board support, 1 piece
* Manual/electric moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
* DRO (Optional)
