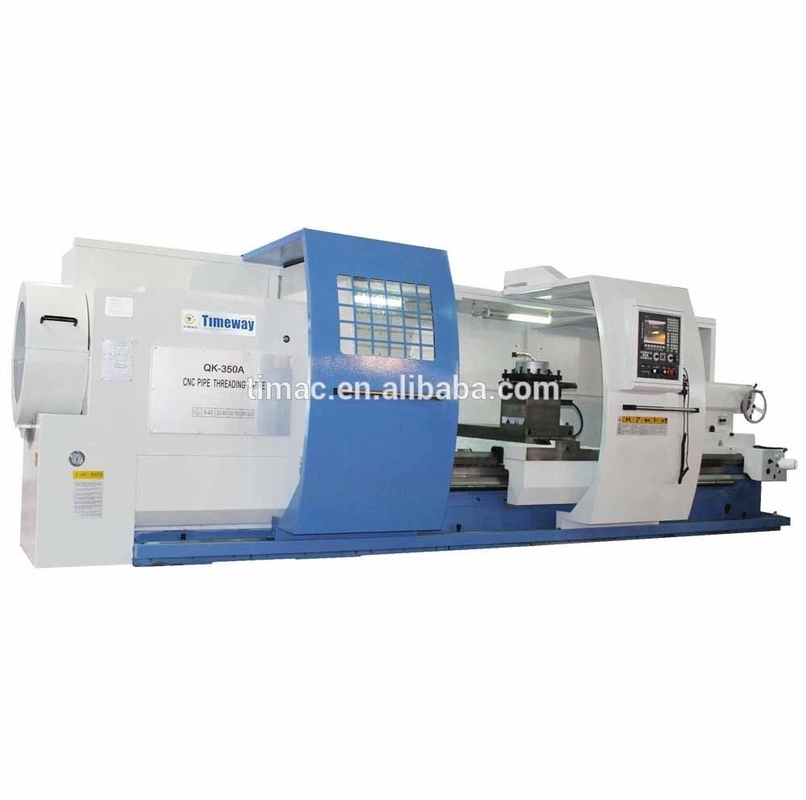

13000kg Heavy Duty CNC Oil Country Lathe for Large Bore Pipe Threading Solutions
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC, TIMEWAY |
| Certification: | CE ISO |
| Model Number: | QK-350A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $180,000.00/sets >=1 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 5000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 5000 | Width Of Bed (mm): | 755 Mm |
| Spindle Motor Power(kW): | 18.5 | No. Of Spindles: | Twin |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 1100 Mm |
| Travel (Z Axis)(mm): | 730 Mm | Dimension(L*W*H): | 8300x2520x2120mm |
| Voltage: | As Per Customer Request | CNC Control System: | Siemens |
| Tool Post Stations: | 4 | Weight (KG): | 13000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Pipe Threading Lathe |
| Max. Length Of Workpiece: | 5000mm | Max. Diameter Of Pipe: | 340mm |
| Spindle Bore: | 355mm | Spindle Speed: | 5-320rpm(4shifts, Stepless) |
| Control System: | SIEMENS Or FANUC Or FAGOR | Max. Swing Diameter: | 1100mm |
| Weight: | 13000kg | Power: | 18.5kw |
| Condition: | New | Applicable Industries: | Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Food & Beverage Factory, Construction Works , Energy & Mining |
| Showroom Location: | United States, Germany, Brazil, Saudi Arabia, Indonesia, Mexico, Russia, Kazakhstan | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Pump, Gear | Year: | Latest Day |
| Max. Spindle Speed (r.p.m): | 320 R.p.m | Spindle Bore(mm): | 355 |
| Max. Turned Length (mm): | 4800 | Port: | China Port |
Product Description
Product Description
pipe threading lathe
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.

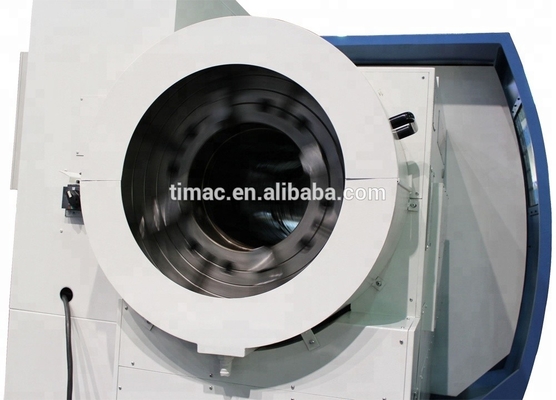

This machine was designed for use in demanding petroleum industry applications and integrates decades of experience. Massive headstock with mian spindle running in tapered roller bearins, and two lathe chuck mounts.
Feature：
The wide machine bed features large, hardened and ground guideways and high rigidity. High torque drives and preloaded ball screws on all axes. Automatic 4-step gears with infinitely variable speed ranges. Hardened and ground gears for effective power transmission. Heavy-duty 4-station tool holder with automatic tool changing function. Including high performance coolant system, and central lubrication unit. Control technology with award-winning reliability and many years of experience-FANUC or SIEMENS CNC system. Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.
Specification
Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |||||
Capacity | Centre height | 385 | 500 | 550 | 650 | ||||||
Swing over bed | mm | 770 | 1000 | 1100 | 1250 | ||||||
Swing over carriage | mm | 480 | 630 | 730 | 900 | ||||||
External diameter of pipes (manual chuck) | mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |||||
Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||||||
Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||||||
Width of guideway | mm | 550 | 755 | 1100 | |||||||
Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 | ||||
Spindle nose | C11 | A2-15 | A2-28 | ||||||||
Chuck type(manual chuck) | manual 3 jaw 380 | manual 3 jaw 500 | manual 4 jaw 630 | manual 4 jaw 800 | manual 4 jaw 630 | ||||||
CNC system | Alternatives | FANUC 0i TD; SIEMENS 828D; FAGOR | |||||||||
Standard Configurations:
* FANUC CNCsystem

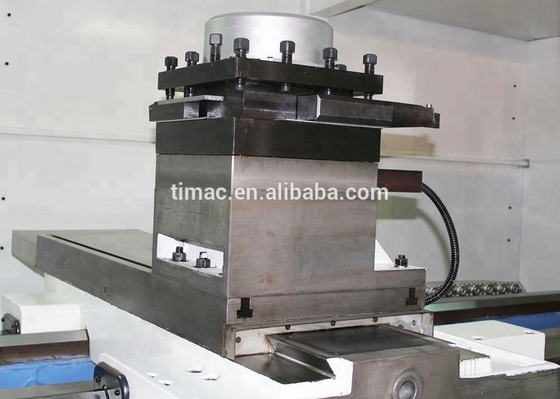

* Vertical 4-station electric tool-post
* Electric Tailstock

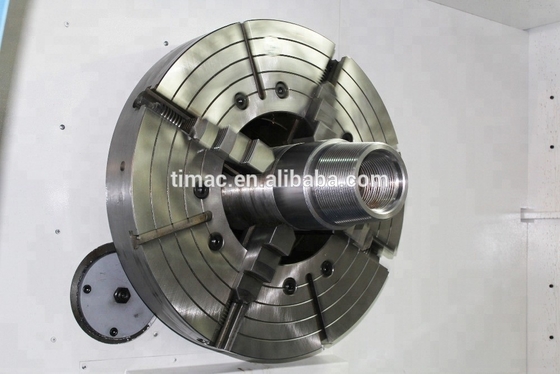

* Manual 4-jaw chuck
* Central lubrication system
* Working light
* Coolant system
* Semi-closed cover
* Electric cabiner with air Conditioner
* Tool box and tools
* Programming manual
* Operator manual
* Vertical 4-station electric tool-post
* Electric Tailstock
* Manual 4-jaw chuck
* Central lubrication system
* Working light
* Coolant system
* Semi-closed cover
* Electric cabiner with air Conditioner
* Tool box and tools
* Programming manual
* Operator manual
Optional Configurations:
* SIEMENS/FAGOR CNC system
* Hydraulic chuck
* Hydraulic or manual tailstock
* Six and eight stations tool-post
* Hydraulic or pneumatic 3-jaw chuck
* Live center
* Special accessories
* Hydraulic chuck
* Hydraulic or manual tailstock
* Six and eight stations tool-post
* Hydraulic or pneumatic 3-jaw chuck
* Live center
* Special accessories
