User-Friendly Manual Pipe Threading Lathe for CNC or Normal Manufacturing
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Model Number: | Q-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $150,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 500 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 20 - 480 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Voltage: | 380v 50hz |
| Dimension(L*W*H): | As Actual | Weight (KG): | 4300 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| Machine Type: | Pipe Threading Lathe Machine | Spindle Bore: | 200mm |
| Max. Swing Diameter: | 630/800mm | Weight: | As Actual |
| Power(W): | 11kw | X-axis Rapid Feed Speed: | 2300mm/min |
| After-sales Service Provided: | Online Support | Distance Between Centers: | 1500/2000/3000mm |
| Condition: | New | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Home Use, Retail, Construction Works , Energy & Mining |
| Showroom Location: | Egypt, Italy, Peru, Russia, Sri Lanka, Romania, Bangladesh, South Africa, Kazakhstan | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine |
| Spindle Bore(mm): | 200 | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2020 | Port: | China Port |
Product Description

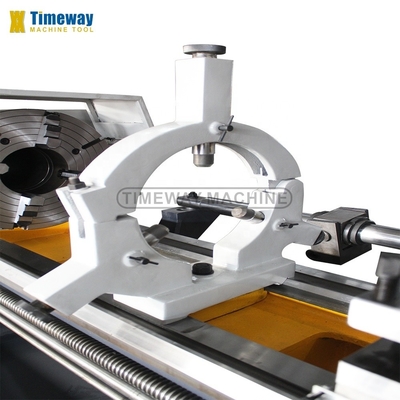

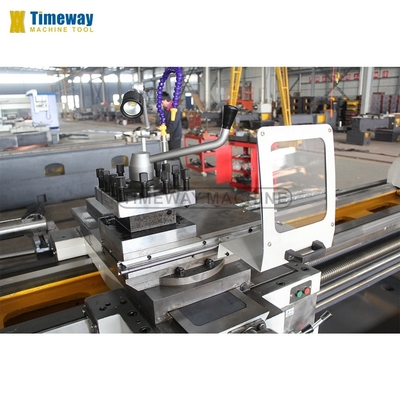

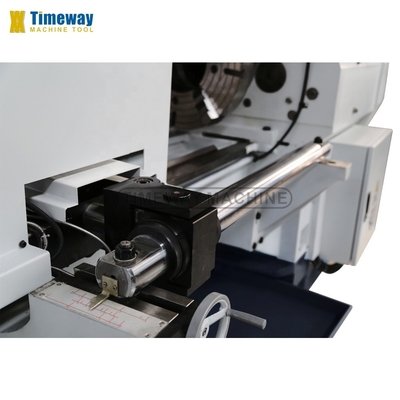

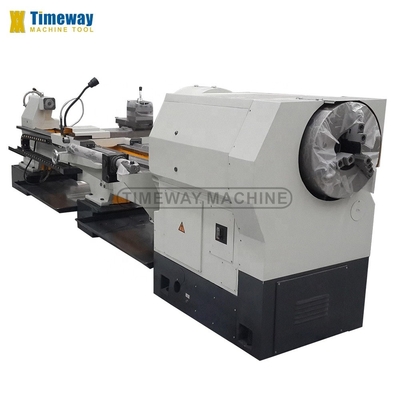

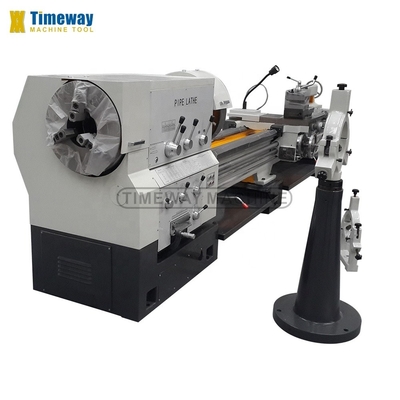

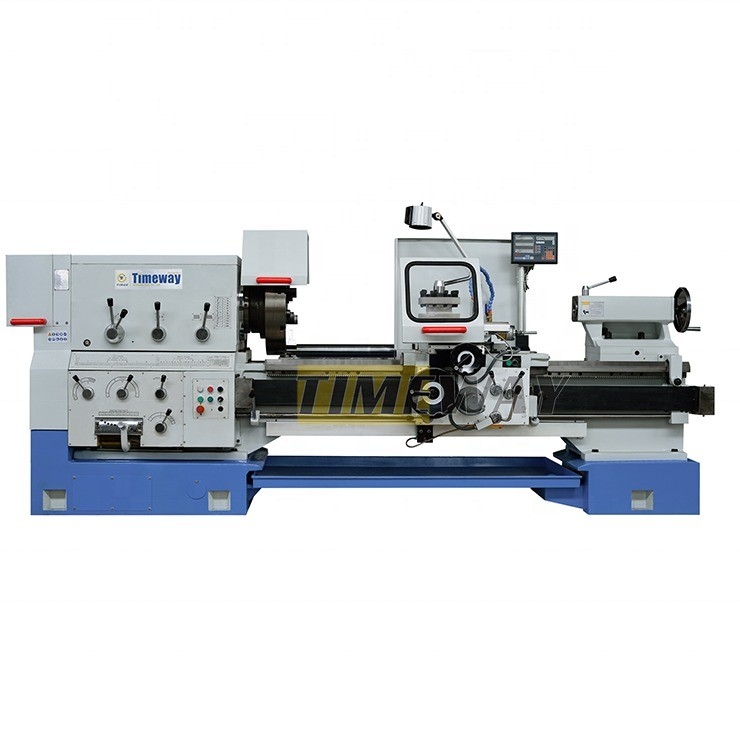

China Pipe Threading Lather
Features: 1.This machine was designed for use in often harsh and demanding environment associated with oil tool production and integrates decades of experience. 2.550mm width bed made of premium cast-iron, by ultrasonic frequency quenched and precision grinding by imported rails grinder, excellent stability, high rigidity. The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle. 3.Hardened and precision grinding spindle adopts two support structure with high-precision grade bearings, to ensure spindle running stable. 4.Pipe threading lathe with large spindle bore and double lathe chuck (3-jaw chuck or 4-jaw chuck) on both sides for long pipes. 5.Equipped with taper turning attachment, can automatic feed turning cone surface and taper threads, and some common taper scale indications. 6.All lathes are equipped with rapid feed motor for X/Z-axis quickly positioning, reduce operating intensity and machining assistance time, improve machining efficiency. 7.Wide spindle speed range for choosing reasonable speed, various steps feed speed for meeting different processing process and threads cutting. 8.The lathe machine is mainly developed for the turning of oil field pipe thread, it is not only suitable for all kinds of pipe thread turning, but also can be used as ordinary lathe, suitable for processing complex shape of the shaft, sets, disk parts, such as turning inside and outside cylindrical surface, conical surface, end face. Especially for multi-species, small batch of turning processing. Standard accessories: 3-jaw chuck (Q-130)， 4-jaw independent chuck (Q-200, Q-225)， Steady rest， Follow rest， Dead center of tailstock， 4-station tool post， Taper turning attachment， Cooling system， Work lamp， Chip plate， Tools， Leveling wedge and bolts， Operation manual (English). Optional accessories: 4-jaw chuck (Q-130), Face plate, 2 or 3-axis digital indicator, Chuck guard, Tool-post guard, Rear splash guard, Quick changing tool post.
PRODUCT SPECIFICATIONS
Specification | Unit | Q-130 | Q-200 | Q-225 |
Max. swing over bed | mm | 630/800 | 630/800 | 630/800 |
Max. swing over cross slide | mm | 340/520 | 340/520 | 340/520 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
Pipe threading range | mm | 30-126 | 50-193 | 50-220 |
Bed width | mm | 550 | 550 | 550 |
X-axis travel | mm | 320/420 | 320/420 | 320/420 |
Z-axis travel | mm | 1350/2850 | 1350/2850 | 1350/2850 |
Loading capacity | kg | 3000 | 3000 | 3000 |
Spindle bore | mm | 130 | 200 | 225 |
Spindle speed steps | steps | CCW: 18/CW: 9 | CCW: 12/CW: 9 | CCW: 12/CW: 9 |
Spindle speed | rpm | 30-650 | 20-480 | 20-480 |
Chuck size | mm | 400 | 520 | 520 |
Chuck type (manual) | - | 3-jaw | 4-jaw | 4-jaw |
Turret type (manual) | - | V4 | V4 | V4 |
Tool shank size | mm | 30x30 | 32x32 | 30x30 |
X-axis feed range (steps) | mm/r | 0.02-0.45 (22) | 0.02-0.45 (22) | 0.02-0.45 (22) |
X-axis rapid feed speed | mm/min | 2300 | 2300 | 2300 |
Z-axis feed range (steps) | mm/r | 0.07-1.33 (26) | 0.07-1.33 (26) | 0.07-1.33 (26) |
Z-axis rapid feed speed | mm/min | 4000 | 4000 | 4000 |
No. of Metric thread and range | mm | 1-24(52) | 1-14 (24) | 1-14 (24) |
No. of Inch thread and range | TPI | 2-28(40) | 28-2 (40) | 28-2 (40) |
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Main motor power | kw | 11 | 11 | 11 |
Rapid feed motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant motor power | kw | 0.125 | 0.125 | 0.125 |
Machine dimensions (LxWxH) | mm | 3700/5200x1500x1500 | 3700/5200x1550x1550 | 3700/5200x1650x1550 |
Machine weight | kg | 4000/5200 | 4300/5500 | 4500/5700 |
