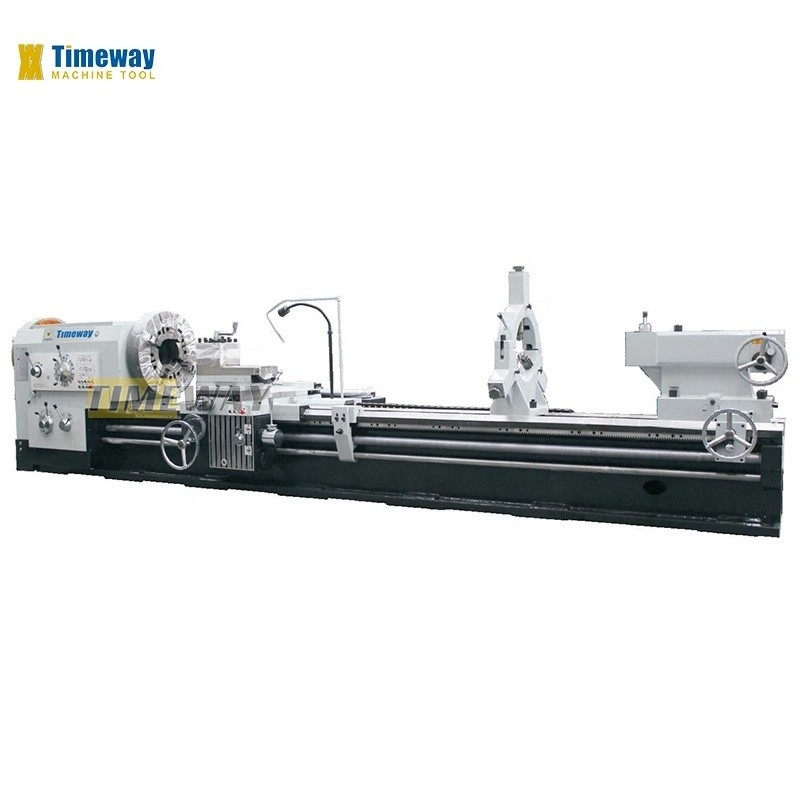

22kw Large Spindle Bore Pipe Thread Lathe Designed for Oil Country Requirements
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | TIMAC |
| Certification: | ISO, CE |
| Model Number: | Q-360 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00/sets >=1 sets |
| Packaging Details: | wooden case(can be fumigated) or plywood case |
| Supply Ability: | 100 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 6.3 - 315 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Voltage: | 220v 380v 400v |
| Dimension(L*W*H): | 6100x2045x1945mm | Weight (KG): | 12500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2020 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | Normal | Automatic Grade: | Manual |
| After-sales Service Provided: | Online Support | Max. Swing Diameter: | 1250mm |
| Weight: | 12500kg | Power: | 22kw |
| Color: | Standard | Spindle Speed: | 6.3-315 Rpm |
| Bed Width: | 755mm | Condition: | New |
| Applicable Industries: | Manufacturing Plant, Retail | Showroom Location: | United States, Germany, Peru, Russia, Chile, UAE, Algeria, Uzbekistan, Malaysia |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine | Spindle Bore(mm): | 360 |
| Max. Turned Length (mm): | 3000 Mm | Port: | China Port |
Product Description
Products Description
Features:
1. The Pipe Thread Turning Lathe (Oil Country Lathe) machine is equipped with a tapering unit which can work out a ±1:4 taper.
2. The machine is able to cut both metric and with threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The great power of the machine is competent at heavy load and power cutting
6. The floor center rest can be moved freely as required by the user. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
7. The 4-jaw head stock offers free clamp of both short and long pipes.
1. The Pipe Thread Turning Lathe (Oil Country Lathe) machine is equipped with a tapering unit which can work out a ±1:4 taper.
2. The machine is able to cut both metric and with threads without changing the translating gear.
3. The dripping worm in the apron can protect the mechanisms of the lathe automatically.
4. The guide way is hardened and finely finished.
5. The great power of the machine is competent at heavy load and power cutting
6. The floor center rest can be moved freely as required by the user. The center rest is provided with an adjustable clamp unit for long pipes, greatly reducing intensity of labor.
7. The 4-jaw head stock offers free clamp of both short and long pipes.
Specification | Unit | Q-360 |
Max. Swing over bed | mm | 1000, or 1250 |
Max. Swing over carriage | mm | 640, or 900 |
Distance between two centers | mm | 3000 |
Width of bed | mm | 755 |
Diameter of spindle inner hole | mm | 360 |
Min. Clamped diameter of chuck | mm | 240 |
Range of spindle speed | r.p.m. | 6.3 to 315 with 18steps |
Main motor power | kw | 22 |
Kind of metric thread and pitch range | 56kinds, 1 to 120mm | |
Kind of whitworth thread and range | 37kinds, 30 to 1.125teeth/in. | |
Kind of modular thread and range | 46kinds, 0.5 to 60mm | |
Kind of radial thread and range | 46kinds, 0.5 to 60 d.p. With 4 way toolpost | |
Tool section ( H×W ) | mm | 45×45 |
Max. Travel of tool post | mm | 300 |
Max. Travel of cross slide | mm | 695 |
Rapid traverse of tool post (Longitudinal, Cross, Up tool post) | mm/min | 3740,1870, 935 |
Diameter of tailstock sleeve | mm | 160 |
Travel of tailstock sleeve | mm | 300 |
Taper for taper hole of tailstock sleeve | metric no. 80 | |
Machining length of taper scale | mm | 300 |
Taper turning | ±1:4 | |
Net dimension of machine | mm | 6100×2045×1915 or 6100x2045x1945 |
Net weight of machine | kg | 12500 |
Big bore chuck (Front & Rear), Dead center 4-station tool post Taper turning attachment Cooling system Work lamp Chip collecting plate General tools Leveling wedge and bolts Operation manual (English) | 2 or 3-axis DRO Chuck guard Tool-post guard Rear splash guard Rear support for long pipe |
