11kW Spindle Motor CNC Roll Notching Engraving Lathe for Metal Engraving Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac TIMEWAY |
| Certification: | ISO9001:2008, CE |
| Model Number: | RPK-500CJ |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets >=1 sets |
| Packaging Details: | Material: Wooden case (fumigated); <br>Packing numbers: 2pcs <br>Packing size(LxWxH): 4300x1750x1800mm+1000x800x1800mm |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 2500 Mm |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 750 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Twin | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 600 Mm | Travel (Z Axis)(mm): | 500 Mm |
| Positioning Accuracy (mm): | 0.02 Mm | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 4300x1750x1800mm | Voltage: | As Requirement |
| CNC Control System: | FANUC | Tool Post Stations: | None |
| Weight (KG): | 5980 | Warranty: | 1 Year, 1year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| CNC Or Not: | CNC | Automatic Grade: | Automatic |
| After-sales Service Provided: | Engineers Available To Service Machinery Overseas | CNC Roll Processing Machine: | CNC ROLL NOTCHING & ENGRAVING LATHE |
| Max. Swing Diameter (mm): | 500 | Max. Length Of Work Piece: | 2500mm |
| Machine Type: | Cnc Machine Lathe | Function: | Turning Lathe |
| Condition: | New | Spindle Bore(mm): | Other |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant | Showroom Location: | France, Brazil, Peru, Mexico, Russia, Chile, Algeria, South Africa, CAMEROUN |
| Marketing Type: | Other | Core Components: | Bearing, Motor, Gear, PLC, Other, Gearbox |
| Max. Spindle Speed (r.p.m): | 2850 R.p.m | Max. Turned Length (mm): | 2500 |
| Port: | China Port | ||
Product Description
Products Description
CNC metal engraving machinery

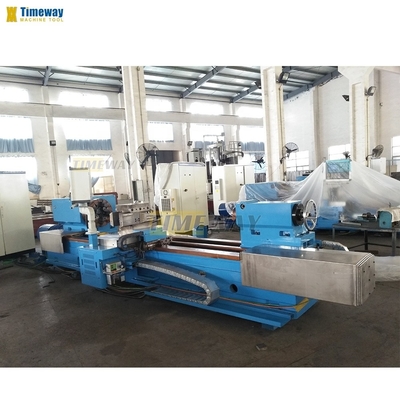

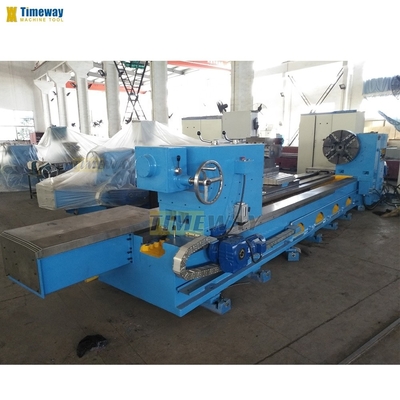

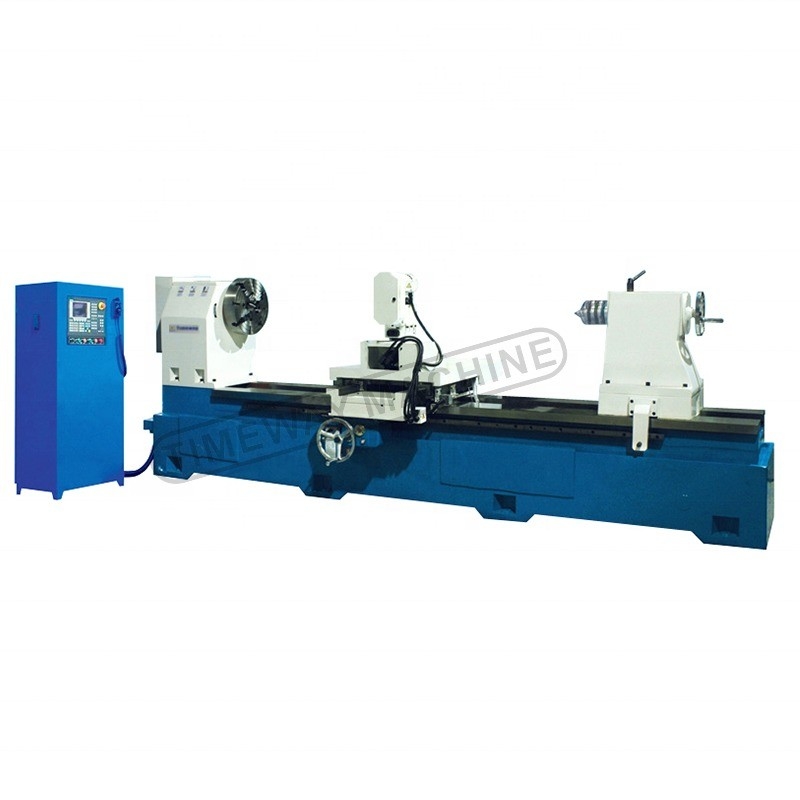

RPK-500CJ is a professional multi-Function CNC Roll Processing Machine used for machining ribs (notching) and engraving letter & logo on roll.
It’s equipped with famous brand SIEMENS Sinumerik802C CNC controller& YASKAWA servomotors.
SIEMENS Sinumerik 802C guarantees the advance function & stable quality for CNC and it offers 4-axes controls and 3 axis simultaneous movement.
It’s equipped with famous brand SIEMENS Sinumerik802C CNC controller& YASKAWA servomotors.
SIEMENS Sinumerik 802C guarantees the advance function & stable quality for CNC and it offers 4-axes controls and 3 axis simultaneous movement.
Specificaion | Unit | RPK-500CJ |
Max. Diameter of work piece | mm | Ø500 |
Max. Length of work piece | mm | 2500 |
Suitable thread specification | mm | 10-40 |
Max. Spindle speed of flyer cutting milling head: | rpm | 550 |
Max. Spindle speed of swivel milling head: | rpm | 2850 |
Spindle bore of headstock: | MT#5 | |
Headstock chuck (4 jaw chuck) | 400 | 400 |
Main power of swivel head | kw | 1.1(380v) |
CNC control system | SIEMENS Sinumerik802C | |
CNC control system power | 220v/50hz | |
Net weight (machine + electrical cabinet) | 5200+ 220 | |
Gross weight (machine + electrical cabinet) | kg | 5700 + 280 |
Packing size (machine unit) (LxWxH) | mm | 4300x1750x1800 |
Packing size (Electrical cabinet) (LxWxH) | mm | 1000x800x1800 |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
