2022 Year CNC Tube Threading Lathe Machine with 5050 KG Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
| Packaging Details: | Standard Package |
| Supply Ability: | 500 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Slant Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 550 | Width Of Bed (mm): | 550 Mm |
| Spindle Motor Power(kW): | 7.5 | No. Of Spindles: | Twin |
| Number Of Axes: | 2 | Travel (X Axis)(mm): | 2750 Mm |
| Travel (Z Axis)(mm): | 320 Mm | Dimension(L*W*H): | 5157x1360x1555mm |
| Voltage: | 380v 50hz | CNC Control System: | Siemens |
| Tool Post Stations: | 12 | Weight (KG): | 5050 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Max. Workpiece Length: | 3000mm |
| Clamped Pipe Diameter: | 50-193mm | Spindle Bore Diameter: | 200mm |
| Spindle Speed Range: | 30-300rpm(stepless) | Bed Width: | 550mm |
| Chuck: | Manual 3 Jaw Chuck(standard) | CNC System: | FANUC 0i-mate TD |
| Max. Swing Diameter: | 630mm | Weight: | 5050kg |
| Power: | 7.5/11kw(main Motor) | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Construction Works , Energy & Mining | Showroom Location: | United States, Italy, France, Saudi Arabia, Pakistan, Argentina, South Africa, Australia |
| Marketing Type: | New Product 2020 | Core Components: | Bearing, Motor, Pump, Gear |
| Max. Turned Length (mm): | 3000 | Year: | 2022 |
| Max. Spindle Speed (r.p.m): | 300 R.p.m | Spindle Bore(mm): | 200 |
| Port: | China Port | ||
Product Description

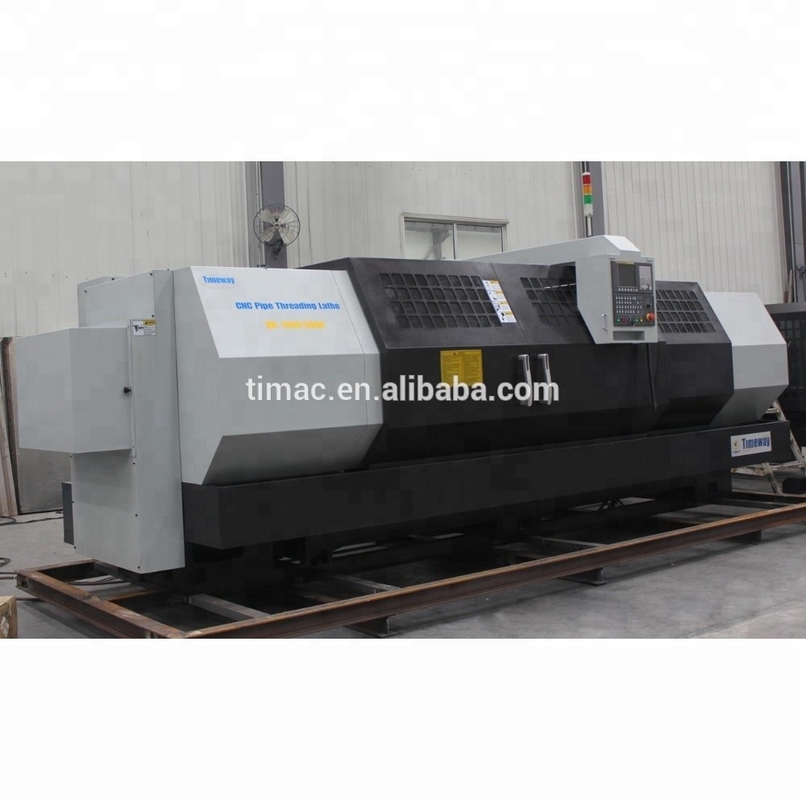

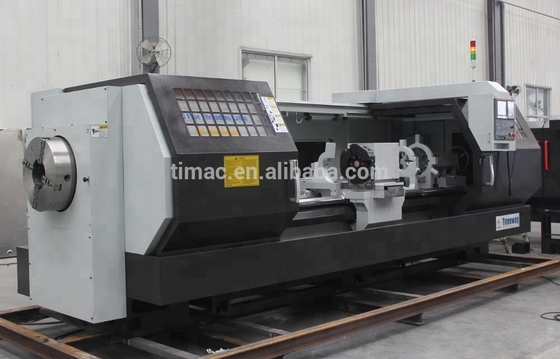

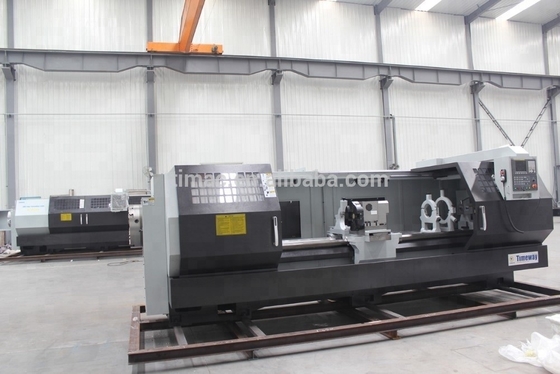

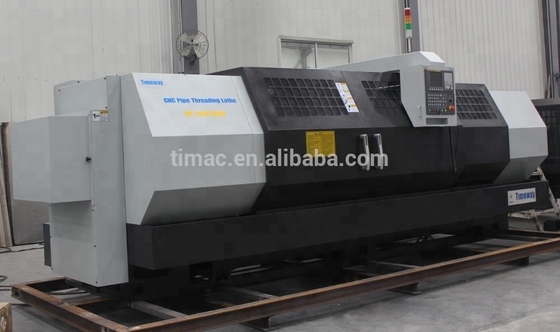

CNC Tube Threading Lathe
QK-190A QK-360A QK-510A
Features:
- The machine is developed for oil pipe threading turning, and suitable for all kinds of pipe thread turning.
- It is full-closed loop control system CNC pipe threading lathe, also can be used as ordinary CNC lathe.
- It is suitable for processing complex shape of shaft, set, the dish parts, such as turning internal and external cylindrical face, internal and external cone face, circular arc surface, end face, cutting and corner, turning thread etc.
- Strong adaptability and high processing efficiency, low scrap rate, finished good consistency, can reduce to requirements of skilled workers.
- Electronic hand-wheel at the control panel for manual operation ensure easy, quick setup of new workpieces and tools.
- High-torque drives and preloaded ball screws on all axes.
- Including high-preformance coolant system, and central lubrication unit, and chain-type chip conveyor.
- According to customer's requirement, we provide 4-jaw self-centering chuck and horizontal 6-station tool-post, but standard equipment is 3-jaw chuck and vertical 4-station tool-post.
•Servo-motor Direct-drive Spindle •Carriage with 6-station Tool-post •Manual Tailstock and Steady Rest
Technical Parameters:
| Specification | Unit | QK-190A | QK-360A | QK-510A |
| Max. Swing over bed | mm | Φ630 | Φ1000 | Φ1200 |
| Max. Swing over carriage | mm | Φ340 | Φ610 | Φ710 |
| Distance between two centers | mm | 3000 | 3000 | 3000 |
| Width of bed | mm | 550 | 755 | 755 |
| Guideway type | - | Double V type (As client’s request) | ||
| Diameter of spindle inner hole | mm | Φ200 | Φ390 | Φ520 |
| Max. Clamped pipe diameter | mm | Φ50-193 | Φ190-380 | Φ330-510 |
| Chuck type | mm | Manual 3 jaw | Manual 4 jaw | Manual 4 jaw |
| Steps of spindle speed | step | 2 | 3 | 3 |
| Range of spindle speed | r.p.m | 30- 300 (stepless) | 10- 200 (stepless) | 10- 200 (stepless) |
| Feed increment and pitch range | mm | 0.001-40 | 0.001-40 | 0.001-40 |
| Max. travel of X/Z-axis | mm | X:320/520; Z:2750 | X:500; Z:2750 | X:500; Z:2750 |
| Rapid speed of X/Z-axis | mm/min | 4000 | 4000 | 4000 |
| X/Z-axis feed servo motor power | kw/N.m | X: 1.5/10; Z: 2.3/15 | X: 2.3/15; Z: 4.7/30 | X: 2.3/15; Z: 4.7/30 |
| Number of tools | - | 4 Electro | 4 Electro | 4 Electro |
| Tool section ( H×W ) | mm | 32×32 | 40×40 | 40×40 |
| Diameter of tailstock sleeve | mm | Φ100 | Φ140 | Φ140 |
| Travel of tailstock sleeve | mm | 205 | 300 | 300 |
| Taper of tailstock sleeve | - | MT5 | MT6 | MT6 |
| Main motor power (Inverter) | kw | 7.5/11 | 22 | 37 |
| Coolant pump | kw | 0.125 | 0.15 | 0.15 |
| CNC system | - | FANUC 0i-mate TD controller | ||
| Overall dimensions ( L×W× H) | mm | 5157×1360×1555 | 5157×2200×1520 | 6100 × 2200 × 1750 |
| Machine weight | kg | 5050 | 12000 | 15000 |
Notes: Manual 4-jaw chuck is optional, standard equipment is 3-jaw self-centering chuck; Spindle(servo motor) speed range 30-500rpm(stepless) can be available.
Standard Accessories:
| |
Optional Accessories:
| |
Actual Working Precision:
•Fine turning outside taper pipe thread(Taper: 1:16, Thread pitch: 3.175), meet accumulative error of pitch to 0.035/25.4mm. By precision special measuring instrument for thread. To the machine, can process the high-quality workpieces that customer need through our actual processing and measuring repeatedly.
The Way of Keeping High Precision of Machining Workpiece:(As Follow)
To improve the accuracy of the overall machine tool, we design a new guide on the Z-axis that double V-type guide keep better machining accuracy. So according to your need, the guide can be available.
Electronic Unit and RENISHAW Laser Interferometer:
•Famous brand Renishaw laser interferometer not only can measuring X/Z-axis positioning accuracy and repositioning accuracy and back lash, but also can segmented pitch compensation on the X/Z-axis. Thus improving once- again the overall accuracy of machine tool and machining accuracy, and the accuacy of machining thread.
Standard Packaging of Machine Tool:
Box-iron pallet and integrated framework with square steel tube, around the woodiness plywood encapsulation. Rain-proof on the top of packaging.
