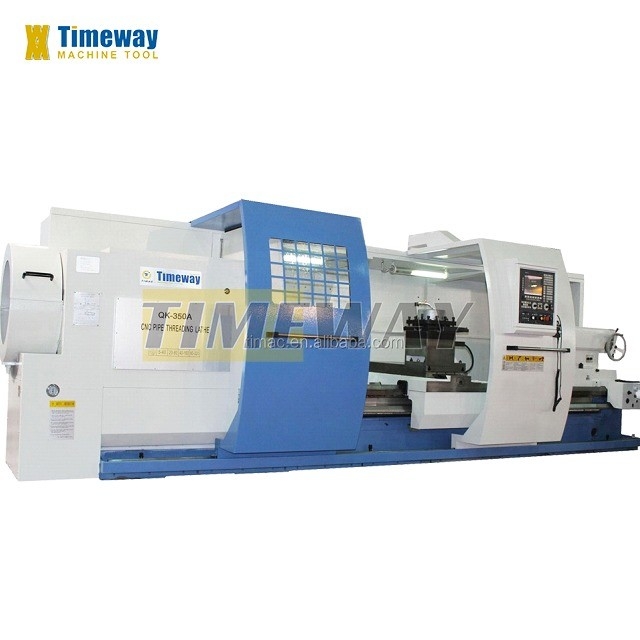

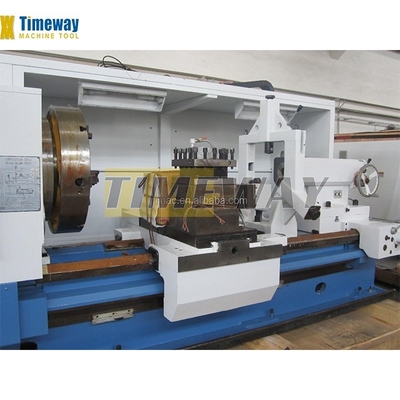

Heavy Duty CNC Horizontal Pipe Threading Turning Machine Max. diameter of pipe 340mm
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC |
| Model Number: | QK-350A |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $8,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 50 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 5000 Mm |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 755 Mm | Spindle Motor Power(kW): | 18.5 |
| No. Of Spindles: | Twin | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 1100 Mm | Travel (Z Axis)(mm): | 730 Mm |
| Positioning Accuracy (mm): | 0.02 Mm | Repeatability (X/Y/Z) (mm): | 0.01 |
| Dimension(L*W*H): | 6300x2520x2120mm | Voltage: | As Request |
| CNC Control System: | FANUC | Tool Post Stations: | None |
| Weight (KG): | 11000 | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | CNC Pipe Threading Turning Machine | Color: | Customized Option |

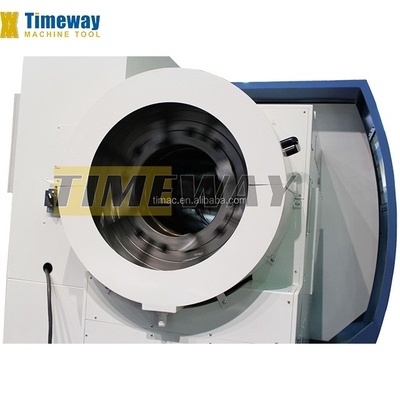

| Max. Diameter Of Pipe: | 340mm | Spindle Bore: | 355mm |
| Bed Width: | 755mm | Max. Weight Of Workpiece: | 5000kg |
| Spindle Speed: | 5-320rpm(4shifts, Stepless) | Max. Swing Diameter: | 1100mm |
| Weight: | 11000kg | Power(W): | 18.5kw |
| Condition: | New | Applicable Industries: | Manufacturing Plant |
| Showroom Location: | Turkey, Brazil, Indonesia, Russia, Romania, South Africa | Marketing Type: | Ordinary Product |
| Core Components: | Bearing, Motor, Gear, Engine, Other | Max. Spindle Speed (r.p.m): | 320 R.p.m |
| Spindle Bore(mm): | 355 M'm | Max. Turned Length (mm): | 4800 |
| Port: | China Port | ||
Product Description
Products Description
Application:

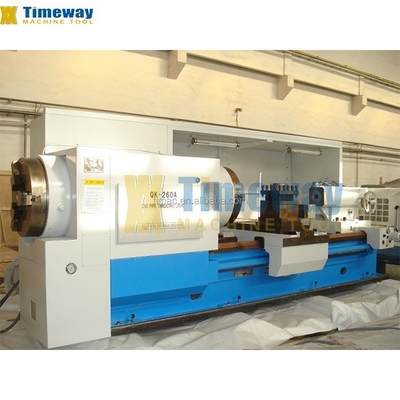

We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Features:
1. The lathe was developed mainly for the turning of oil-field pipe threads.
2. It is suitable for the turning of arious kinds of pipe threads, and is also can be used as universal CNC Lathe.
3. The machine is simple CNC lathe which use half closed-loop control system, which belong to popular CNC pipe thread lathe.
4. It can cut many complex parts as shaft, sleeve and dish, internal and external cylindrical surfaces, concal surfaces, holows, end plane, grrove, chamfer, screw thread, and so on.
5. It is suitable for repeated and medium batch manufacturing in chief.
We, Timeway Machine sold 6", 8", 10", 14", 18" hollow spindle CNC oil country lathes designed to perform all sizes of the threads used in the oil & gas industry; center height 385mm, 500mm, 550mm, 650mm; distance between centres from 750mm up to 5000mm; 3-jaw self-centering chuck or 4-jaw independent chuck on both sides of gear box. All machines are in conformity to the CE norms.
Features:
1. The lathe was developed mainly for the turning of oil-field pipe threads.
2. It is suitable for the turning of arious kinds of pipe threads, and is also can be used as universal CNC Lathe.
3. The machine is simple CNC lathe which use half closed-loop control system, which belong to popular CNC pipe thread lathe.
4. It can cut many complex parts as shaft, sleeve and dish, internal and external cylindrical surfaces, concal surfaces, holows, end plane, grrove, chamfer, screw thread, and so on.
5. It is suitable for repeated and medium batch manufacturing in chief.
Specification | Unit | QK-120A | QK-190A | QK-260A | QK-350A | QK-460A | |||||
Capacity | Centre height | 385 | 500 | 550 | 650 | ||||||
Swing over bed | mm | 770 | 1000 | 1100 | 1250 | ||||||
Swing over carriage | mm | 480 | 630 | 730 | 900 | ||||||
External diameter of pipes | mm | 120 | 190 | 70-260 | 114-340 | 300-460 | |||||
(manual chuck) | |||||||||||
Maximum length of workpiece | mm | 750/1000/1500/2000/3000 | 1500/3000/5000 | 3000 | |||||||
Maximum turning length | mm | 600/800/1350/1850/2850 | 1300/2800/4800 | 2800 | |||||||
Span of guideway | mm | 550 | 755 | 1100 | |||||||
Spindle | Spndle bore | mm | 130 | 200 | 275 | 355 | 465 | ||||
Spindle nose | C11 | A2-15 | A2-28 | ||||||||
Headstock | Step of Spindle speed(Three-phase asyn-chronous motor) | Manual 3 steps,auto 6 steps 16 speeds | Manual 2 steps,auto 4 steps 8 speeds | --- | --- | --- | |||||
Step of Spindle speed(Variable frequency motor) | --- | --- | Auto 4 gear steps,stepless speed change in the step. | ||||||||
Range of spindle speed(Three-phase asyn-chronous motor) | 25-800 | 90-450 | --- | --- | --- | ||||||
Range of spindle speed(Variable frequency motor) | --- | --- | 6-400 | 5-320 | 5-200 | ||||||
Main motor power(Three-phase asyn-chronous motor) | kw | 11 | --- | --- | --- | ||||||
Main motor power | 18.5 | 28/38 | |||||||||
(Variable frequency motor) | |||||||||||
Chuck type(manual chuck) | Manual 3 jaw 380 | Manual 3 jaw 500 | Manual 4 jaw 630 | Manual 4 jaw 800 | Manual 4 jaw 630 | ||||||
Feed | Min.feed increment of X-/Z-axis | mm | 0.001/0.001 | ||||||||
Rapid speeds of X-/Z-axis | mm/min | 3000/6000 | |||||||||
Max.travel of x-axis | mm | 390 | 630 | 800 | |||||||
Carriage | Tool-post working position | Vertical 4-position240 | Vertical 4-position300 | ||||||||
Indexing time | s | 2.5 | 4 | ||||||||
Indexing repeatility | mm | 0.008 | 0.01 | ||||||||
Section of tool shank | mm | 32 | 40 | ||||||||
Tailstock | Diameter of tailstock quill | mm | 100 | 160 | |||||||
Travel of tailstock quill | mm | 250 | 300 | ||||||||
Taper hole of tailstock quill | Morse 5 | Morse 6 | |||||||||
CNC system | Alternatives | FANUC 0i TD; SIEMENS 840 DSL; FAGOR 8055TC | |||||||||
Standard Configuration: | Optional Configuration: |
· FANUC CNCsystem · Vertical 4-station electric tool-post · Electric Tailstock · Manual 4-jaw chuck · Central lubrication system · Working light · Coolant system · Semi-closed cover · Electric cabiner with air Conditioner · Tool box and tools · Programming manual · Operator manual | · SIEMENS/FAGOR CNC system · Hydraulic chuck · Hydraulic or manual tailstock · Six and eight stations tool-post · Hydraulic or pneumatic 3-jaw chuck · Live center · Special accessories |
