FANUC Control System CNC Oil Country Lathe in with 9 Tons Machine Weight
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC TIMEWAY |
| Model Number: | QK-280 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $40,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 280 Mm |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 45 Mm | Spindle Motor Power(kW): | 18.5 Kw |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 570 Mm | Travel (Z Axis)(mm): | 570 Mm |
| Dimension(L*W*H): | 4800*2520*2120 Mm | Voltage: | 220V/380V,50HZ |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 9000 | Warranty: | 1 Year |
| Key Selling Points: | High-accuracy | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Machine Type: | CNC Oil Country Lathe | CNC Or Not: | CNC |
| Model: | QK-280 | Max. Workpiece Length: | 280mm |
| Color: | Customers' Requirement | Name: | CNC Pipe Threading Lathe |
| Product Name: | CNC Lathe Mechine | Main Motor Power: | 18.6 Kw |
| Machine Size(L*W*H): | 4800*2520*2120 Mm | Machine Weight: | 9 Tons |
| Condition: | New | Showroom Location: | Canada, Turkey, United States, Philippines, Brazil, Peru, Indonesia, India, Russia |
| Marketing Type: | New Product 2020 | Max. Spindle Speed (r.p.m): | 400 R.p.m |
| Spindle Bore(mm): | 275 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Other |
| Core Components: | Bearing, Gear, Other | Port: | China Port |
Product Description
Products Description

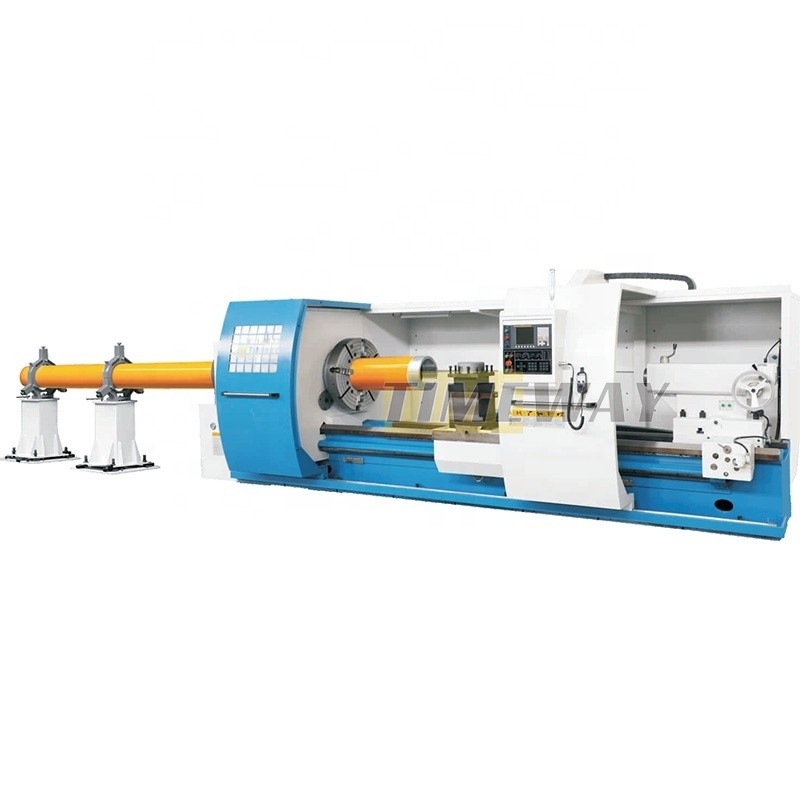

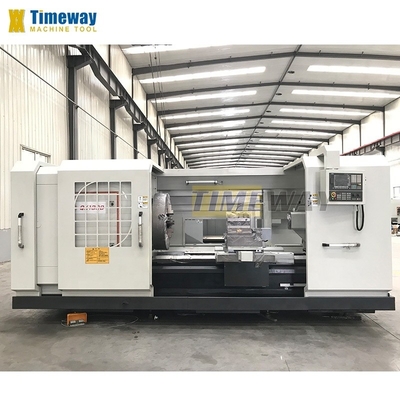

CNC Oil Country Lathe
Specification | Unit | QK-280 | QK-330 | QK-360 | QK-390 |
Pipe threading range | mm | 130-260 | 190-320 | 190-350 | 190-380 |
Max. swing over bed | mm | 1000 | 1000 | 1100 | 1000 |
Max. swing over cross slide | mm | 630 | 610 | 730 | 610 |
Max. length of workpiece | mm | 1500/2000/3000 | 1500/3000 | 1500/2000/3000 | 15003000 |
Max. turning length | mm | 1300/1800/2800 | 1250/2750 | 1300/1800/2800 | 1250/2750 |
Span of guideway | mm | 755 | 755 | 755 | 755 |
Spindle nose | - | A2-20 | Thread-type | A2-20 | Thread-type |
Spindle taper | - | 1:20 | - | 1:20 | - |
Spindle bore | mm | 275 | 330 | 360 | 390 |
Spindle center taper | - | MT6 | - | MT6 | - |
Spindle speed | rpm | 5-400 (auto. 4steps) | 10-280 (manual 3) | 5-320 (auto. 4steps) | 8-205 (manual 3) |
X-axis travel | mm | 570 | 520 | 540 | 520 |
Turret type | mm | V4 | V4 | V4 | V4 |
Machine length | mm | 4800/6300/8300 | 5000/6500 | 4800/6300/8300 | 5000/6500 |
Machine width | mm | 2520 | 2080 | 2520 | 2220 |
Machine height | mm | 2120 | 2080 | 2120 | 2120 |
Machine weight | tons | 9/11/13 | 11.5/12.5 | 9/11/13 | 12/13 |
Standard Accessories | Optional Accessories |

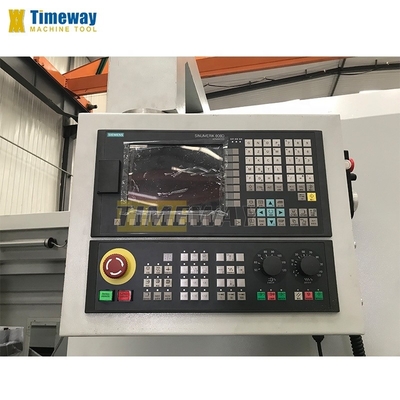

· FANUC/GSK/SIEMENS CNC system, · Big bore chuck (Front & Rear), · 4-station electric tool-post, · Work lamp, · Pilot lamp, · Cooling system, · Semi-closed guard, · Manual pulse generator (MPG), · Dead centers, · Oil gun, · Automatic lubrication pump, · Manual moving tailstock, · Tools& tool-box, · Leveling wedge & bolts, · Operation manual (English). | · Penumatic chuck, · Other tool-post, · Chip conveyor, · Air conditioner, · Rear support for long pipe. |
Client feedback
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
Company Introduction
Factory Display：
Factory Profile：
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited：
So far, we have received many customers from abroad, and they are all very satisfied with our company and products
Company Video
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
