Product Details:

Place of Origin: China
Brand Name: TIMAC Timeway
Model Number: QK-255F/Q-280F

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $82,658.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Type: Horizontal Max. Length Of Workpiece (mm): 3000
Structure: Flat Bed Lathe Machining Capacity: Heavy Duty
Max. Weight Of Workpiece(kg): 4000 Width Of Bed (mm): 300 Mm
Spindle Motor Power(kW): 15 No. Of Spindles: Single
Number Of Axes: 2 Travel (X Axis)(mm): 420 Mm
Travel (Z Axis)(mm): 2850 Mm Dimension(L*W*H): 5600x1930x1900
Voltage: 220V/380V CNC Control System: FANUC
Tool Post Stations: 4 Weight (KG): 7500
Warranty: 1 Year Key Selling Points: Automatic
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Machine Type: Pipe Thread Lathe
Workpiece Length: 3000 Name: Cnc Pipe Threading Lathe
Product Name: Oil Country Lathe Bed Width: 600
Loading Capacity: 4000 Spindle Bore: 255
Spindle Speed Steps (manual): 4steps (inverter) Spindle Speed: 20-420
Chuck Size: 630 Condition: New
Applicable Industries: Machinery Repair Shops, Manufacturing Plant Showroom Location: Canada, Saudi Arabia, South Korea, Colombia
Marketing Type: Other Core Components: Bearing, Motor, Pump
Max. Spindle Speed (r.p.m): 420 R.p.m Spindle Bore(mm): 255
Max. Turned Length (mm): 3000 Port: China Port

Product Description

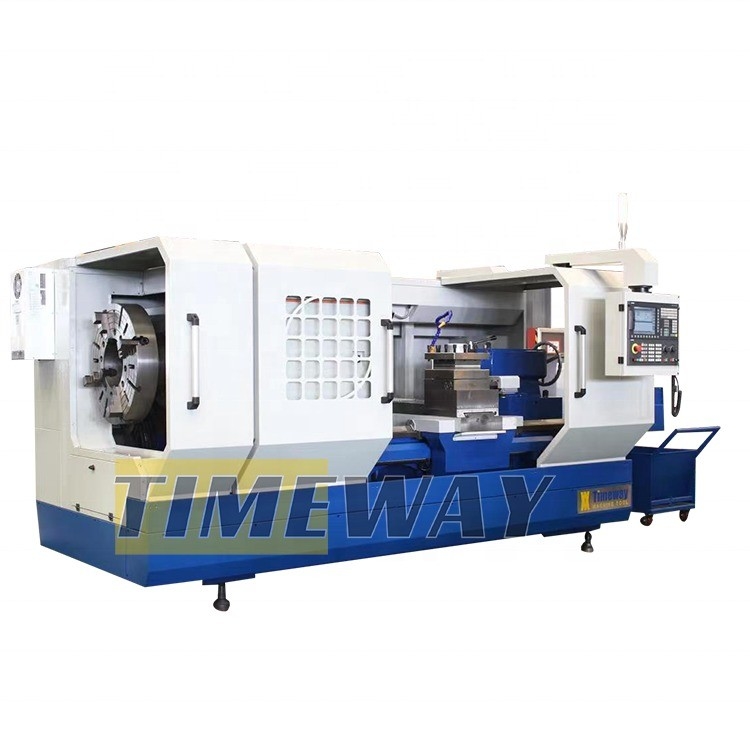

CNC oil country lathe
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 0
Products Description
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 1
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 2
√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Automatic lubrication system
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Pneumatic chuck
_ Other tool post
_ Steady rest
_ Follow rest
_ Air conditioner

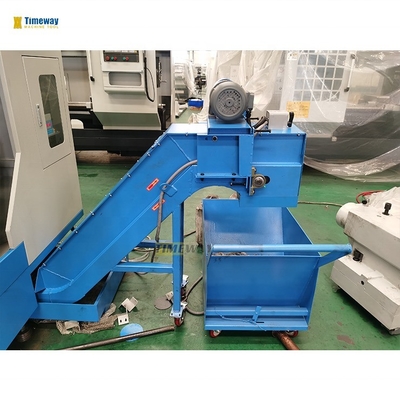

_ Chip conveyor
_ Rear support for long pipe
_ Live centers



Specification
Unit
QK-255F
QK-280F
Capacity
Swing over bed
mm
800
800
Swing over cross slide
mm
480
480
Distance between centers
mm
1000/1500/3000
1000/1500/3000
Pipe threading range
mm
50-250
50-270
Bed width
mm
600
600
Max. load capacity
kg
4000
4000
Spindle
Spindle bore
mm
255
280
Spindle speed steps
steps
stepless (manual 4shifts) or (hydraulic 4shifts)
stepless (manual 4shifts) or (hydraulic 4shifts)
Spindle speed
rpm
20-480
20-480
Chuck size
mm
630
630
Chuck type
-
Manual 4-jaw
Manual 3-jaw
Turret
Turret type
-
V4
V4
Tool shank size
mm
32x32
32x32
Feed
X-axis travel
mm
420
420
Z-axis travel
mm
850/1350/2850
850/1350/2850
X-axis rapid feed speed
mm/min
4000
4000
Z-axis rapid feed
mm/min
6000
6000
Tailstock
Tailstock quill diameter
mm
100
100
Tailstock quill taper
-
MT5
MT5
Tailstock quill travel
mm
250
250
Power
Main motor power
kw
15
15
Coolant motor power
kw
0.125
0.125
Others
Machine dimensions
mm
3800/4300/5800x1900x1750
3800/4300/5800x1900x1750
Machine weight
kg
6000/6500/7500
6200/6700/7700
Machine Details

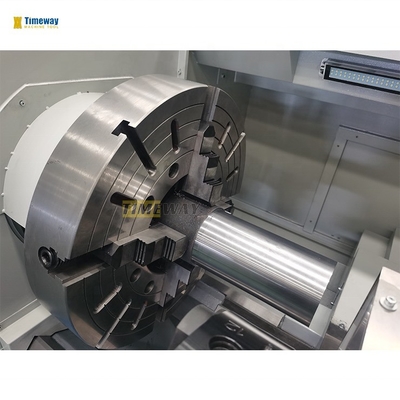

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 3
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 4
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 5

4-stations electric turret:

- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

CNC system:

SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 6
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 7
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 8

Automatic Production Line for Steel Pipe Threads (optional):
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 9
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 10
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 11
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 12
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 13

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 14
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 15
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 16

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 17
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 18
600mm Bed Width 255mm 280mm Spindle Bore CNC Pipe Threading Lathe Tool for Oil Country 19

Comprehensive testing parts (only for CNC oil country lathe):

All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
