--This machine was designed for use in often harsh and demanding environment associated with OCTG industry and integrates decades of experience.
--550mm width bed made of premium cast-iron, by ultrasonic frequency quenched and precision grinding by imported guideway grinder, excellent stability, high rigidity.

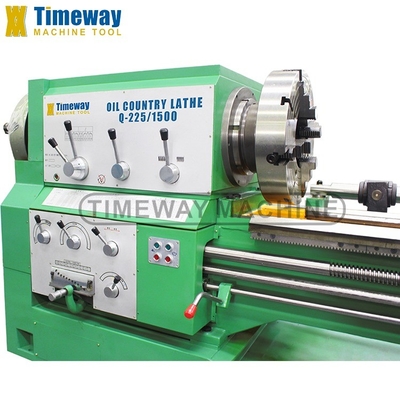

--The spindle box adopts a symmetrical structure to make the thermal deformation uniform and avoid the offset of the center of the spindle. To reduce thermal deformation, the headstock is lubricated with an oil bath cycle.

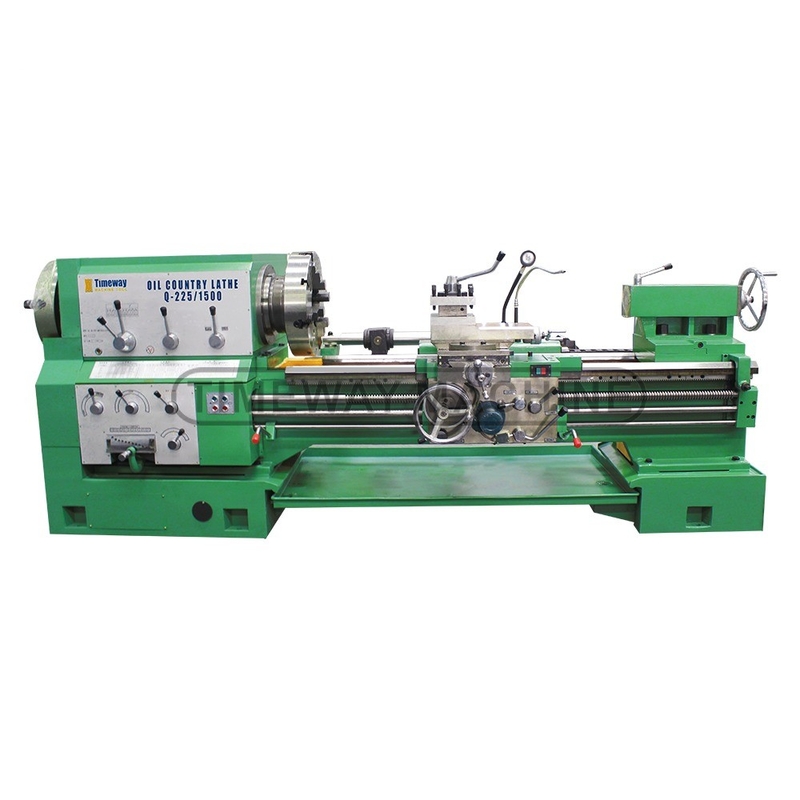

225mm Oil Country Lathe Pipe Threading Lathe After Service 1 Years Spare Parts Support
Product Details:
Place of Origin: | Henan, China |
Brand Name: | TIMAC/Timeway |
Model Number: | Q-225 |
Payment & Shipping Terms:
Minimum Order Quantity: | 1 set |
---|---|
Price: | $32,000.00/sets 1-2 sets |
Packaging Details: | Wooden cases(can be fumigated) |
Supply Ability: | 150 Set/Sets per Month |
Detail Information |
|||
Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 20 - 480 R.p.m |
---|---|---|---|
Machining Capacity: | Medium Duty | Type: | Horizontal |
Dimension(L*W*H): | 5200*1650*1550 | Weight (KG): | 5700 KG |
Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
Name: | Oil Country Lathe | Machine Type: | Horizontal Normal Lathe |
After Warranty Service: | 1 Years Spare Parts Support | CNC Or Not: | Nomal |
Color: | Customers' Request | Model: | Q-225 |
Max. Swing Over Bed: | 630/800mm | Distance Between Centers: | 1500/3200mm |
Spindle Speed: | 20-480rpm | Spindle Bore: | 225mm |
Condition: | New | Applicable Industries: | Home Use, Retail, Construction Works , Energy & Mining |
Showroom Location: | Italy, Germany, Brazil, Saudi Arabia, Pakistan, Spain, Thailand, Kenya, Argentina, South Korea, Algeria, Romania, South Africa, Australia | Core Components: | Bearing, Pump, Gear, Motor, Gearbox, Engine |
Spindle Bore(mm): | 225 | Max. Turned Length (mm): | 3000 Mm |
Port: | China Port |
Product Description
Product Description
Oil Country Lathe

Features:
Specification
Specifications | Unit | Q-130 | Q-200 | Q-225 |
Capacity | ||||
Swing over bed | mm | 630/800 | 630/800 | 630/800 |
Swing over cross slide | mm | 340/540 | 340/540 | 340/540 |
Distance between centers | mm | 1500/3000 | 1500/3000 | 1500/3000 |
Pipe threading range | mm | 30-126 | 50-193 | 50-220 |
Bed width | mm | 550 | 550 | 550 |
X-axis travel | mm | 320/420 | 320/420 | 320/420 |
Z-axis travel | mm | 1350/2850 | 1350/2850 | 1350/2850 |
Max. load capacity | kg | 3000 | 3000 | 3000 |
Spindle | ||||
Spindle bore | mm | 130 | 200 | 225 |
Spindle speed steps | steps | FWD.18/REV.9 | FWD.12/REV.9 | FWD.12/REV.9 |
Spindle speed | rpm | 30-650 | 20-480 | 20-480 |
Chuck size | mm | 400 | 520 | 520 |
Chuck type (manual) | - | 3-jaw | 4-jaw | 4-jaw |
Turret | ||||
Turret type (manual) | - | V4 | V4 | V4 |
Tool shank size | mm | 30x30 | 30x30 | 30x30 |
Feed | ||||
X-axis feed range(steps) | mm/r | 0.02-0.45(22) | 0.02-0.45(22) | 0.02-0.45(22) |
X-axis rapid feed | mm/min | 2300 | 2300 | 2300 |
Z-axis feed range(steps) | mm/r | 0.07-1.33(26) | 0.07-1.33(26) | 0.07-1.33(26) |
Z-axis rapid feed | mm/min | 4000 | 4000 | 4000 |
Thread Cutting | ||||
No. of Metric thread and range | mm | 1-24(52) | 1-14(24) | 1-14(24) |
No. of Inch thread and range | TPI | 2-28(40) | 2-28(40) | 2-28(40) |
Tailstock | ||||
Tailstock quill diameter | mm | 100 | 100 | 100 |
Tailstock quill taper | - | MT5 | MT5 | MT5 |
Tailstock quill travel | mm | 250 | 250 | 250 |
Others | ||||
Main motor power | kw | 11 | 11 | 11 |
Rapid motor power | kw | 0.3 | 0.3 | 0.3 |
Coolant motor power | kw | 0.125 | 0.125 | 0.125 |
Machine dimensions | mm | 3700/5200x1500x1500 | 3700/5200x1550x1550 | 3700/5200x1650x1550 |
Machine weight | kg | 4000/5200 | 4300/5500 | 4500/5700 |
Accessories
Standard accessories:
Big bore chuck (Front & Rear)
Dead center
4-station tool post
Taper turning attachment
Cooling system
Work lamp
Chip collecting plate
General tools
Leveling wedge and bolts
Operation manual (English)
4-station tool post
Taper turning attachment
Cooling system
Work lamp
Chip collecting plate
General tools
Leveling wedge and bolts
Operation manual (English)
Optional accessories:
2 or 3-axis DRO
Chuck guard
Tool-post guard
Rear splash guard
Rear support for long pipe
Tool-post guard
Rear splash guard
Rear support for long pipe
