***Adopt high quality cast iron (HT300) one molding casting, after the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
***Spindle is supported by three-point with heavy load bearing, rotating stability, For QK-200P and QK-240P, spindle is supported by two-point with precision heavy load bearing.

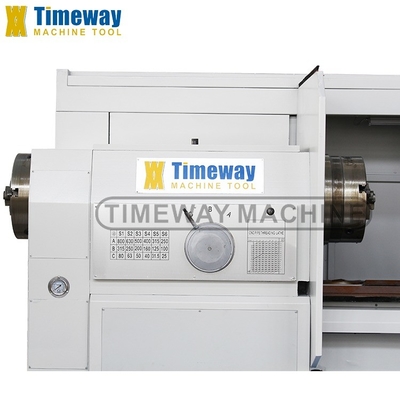

***For QK-130, Adopt 11kw high-power AC main motor, spindle speed change is semi-automatic, manual 3 gear shift and automatic 6 gear shift, total 16 steps.
 |

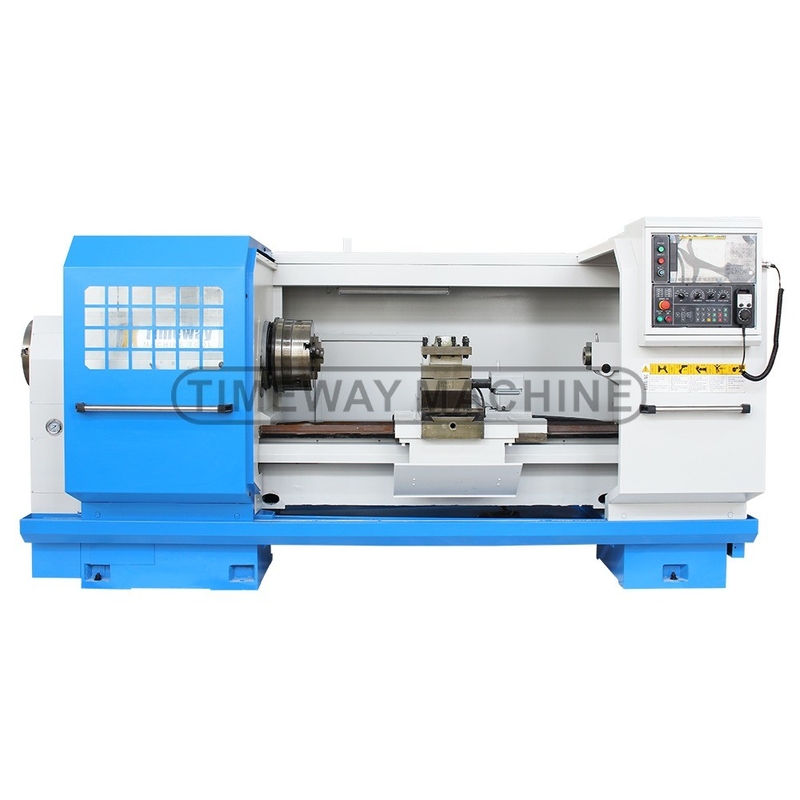

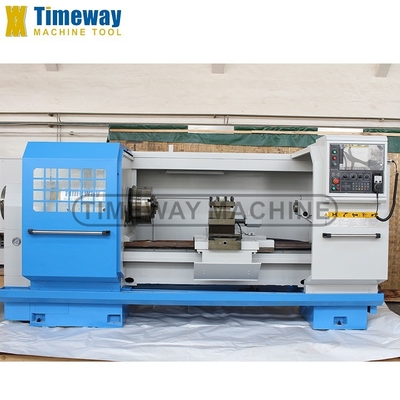

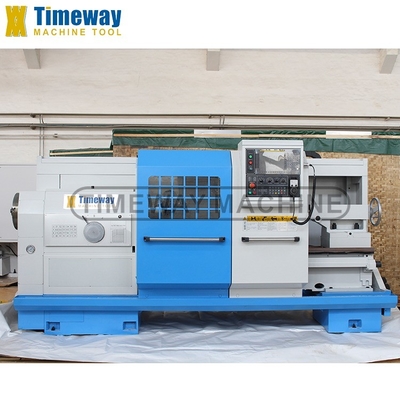

Industry Machinery Essential 's Small CNC Oil Country Lathe with 4 Tool Post Stations
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMAC/Timeway |
| Model Number: | QK-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Width Of Bed (mm): | 800 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 390 Mm | Travel (Z Axis)(mm): | 800 Mm |
| Dimension(L*W*H): | 5177*1800*1850 | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 10000 |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Name: | CNC Pipe Thread Lathe Machine |
| CNC Or Not: | CNC Lathe Machine | CNC Controller: | GSK SIEMENS FANUC SYNTEC |
| Machine Type: | Horizontal CNC Lathe | Color: | Customers' Requirement |
| Max.swing Over Bed: | 800mm | Spindle Speed: | 20-1000rpm |
| Spindle Bore: | 130mm | Bed Width: | 550mm |
| Max. Swing Over Cross Slide: | 450mm | Condition: | New |
| Spindle Bore(mm): | 130 | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Energy & Mining |
| Showroom Location: | Egypt, France, Germany, Viet Nam, Brazil, Russia, Spain, Kenya | Marketing Type: | Hot Product 2019 |
| Core Components: | Bearing, Motor | Max. Spindle Speed (r.p.m): | 1000 R.p.m |
| Port: | China Port | ||
Product Description
Product Description
CNC Oil Country Lathe
Features:
Specification
Specifications | Unit | QK-130 | QK-200 |
Capacity | |||
Swing over bed | mm | 630/800 | 630/800 |
Swing over cross slide | mm | 340/540 | 340/540 |
Distance between centers | mm | 1000/1500/3000 | 1000/1500/3000 |
Pipe threading range | mm | 30-126 | 50-193 |
Bed width | mm | 550 | 550 |
Max. load capacity | kg | 3000 | 3000 |
Spindle | |||
Spindle bore | mm | 130 | 200 |
Spindle speed steps | steps | 3shifts, stepless | 4shifts, stepless (manual or auto.) |
Spindle speed | rpm | 30-650 | 20-500 |
Chuck size | mm | 400 | 500 |
Chuck type (manual) | - | 3-jaw | 3-jaw |
Turret | |||
Turret type (electric) | - | V4 | V4 |
Tool shank size | mm | 32x32 | 32x32 |
Feed | |||
X-axis travel | mm | 320/420 | 320/420 |
Z-axis travel | mm | 850/1350/2850 | 850/1350/2850 |
X-axis rapid feed speed | mm/min | 4000 | 4000 |
Z-axis rapid feed speed | mm/min | 6000 | 6000 |
Tailstock | |||
Tailstock quill diameter | mm | 100 | 100 |
Tailstock quill taper | - | MT5 | MT5 |
Tailstock quill travel | mm | 250 | 250 |
Others | |||
Main motor power | kw | 11 | 11 |
Coolant motor power | kw | 0.125 | 0.125 |
Machine dimensions | mm | 3300/3800/5300x1800x1750 | 3300/3800/5300x1800x1750 |
Machine weight | kg | 4500/5000/6000 | 4600/5100/6100 |
Accessories
Standard accessories:

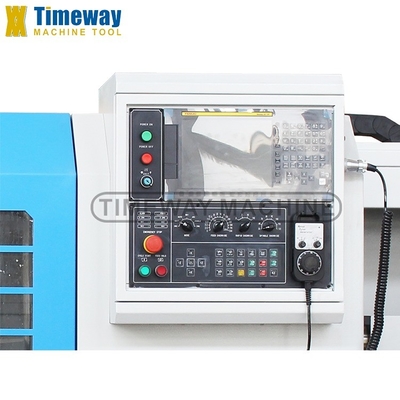

=FANUC/GSK/SIEMENS CNC system
=4-station electric tool-post
=Work lamp
=Pilot lamp
=Cooling system
=Semi-closed guard
=Semi-closed guard
=Manual pulse generator (MPG)
=Dead centers
=Oil gun
=Automatic lubrication pump

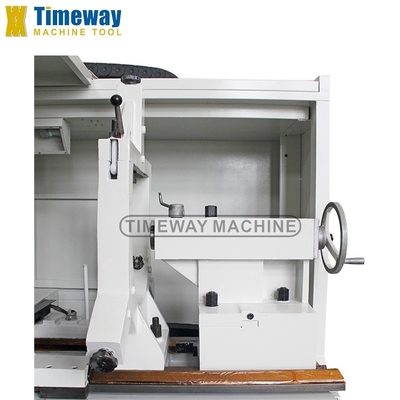

=Manual moving tailstock
=Tools & tool-box
=Leveling wedge & bolts
=Operation manual (English)
Optional accessories:
=Penumatic chuck
=Other tool-post
=Chip conveyor
=Air conditioner
=Rear support for long pipe
