=Adopt high quality cast iron (HT300) one molding casting, bed width (755mm), loading capacity 6000kg. After the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
=Spindle is two-point supported by precision heavy load bearing, rotating stability and smoothly.
=Spindle driven by large torque frequency main motor, torque of spindle is big, heavy-powerful cutting.
=Complete with front and rear hollow chuck as standard, according to users’ need different types of manual, electric, pneumatic and hydraulic chuck can be chosen.
=Standard complete with 4-station turret, it is free lifting and index quickly and easily; the vertical 6-station and horizontal 6/8-station and other electric turret can be chosen.
=The X-direction and Z-direction use the precision and grade ball screw, ensured a high processing accuracy, positioning accuracy and repostioning accuracy.
 |
Pipe Threading Lathe CNC Oil Country Lathe with 1500/3000mm Distance Between Centers
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | QK-440 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $68,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Max. Weight Of Workpiece(kg): | 5000 | Width Of Bed (mm): | 1000 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 520 Mm | Travel (Z Axis)(mm): | 2750 Mm |
| Positioning Accuracy (mm): | ±0.002 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 6500*2220*2120 | CNC Control System: | Fanuc/Siemens/GSK |
| Tool Post Stations: | 4 | Weight (KG): | 14000 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Range Of Spindle Speed(r.p.m): | 23 - 260 R.p.m |
| Travel (Y Axis)(mm): | 3000 Mm | Spindle Taper: | ISO40 |
| Cutting Torque: | 12 N.m | Rapid Feed Speed(mm/min): | 0 - 3000 Mm/min |
| Feed Speed(mm/min): | 0 - 5000 Mm/min | Min. Time Of Tool Change(s): | 0.7 |
| Product Name: | CNC Oil Country Lathe | Machine Type: | Horizontal CNC Lathe |
| After-sales Service Provided: | 1 Year | Control System: | SIEMENS GSK FANUC (optional) |
| Color: | Customers' Requirement | Model: | QK-440 |
| Max.swing Over Bed: | 1000mm | Spindle Speed Ranges: | 23-260rpm |
| Spindle Bore: | 440mm | Distance Between Centers: | 1500/3000mm |
Product Description
Product Description

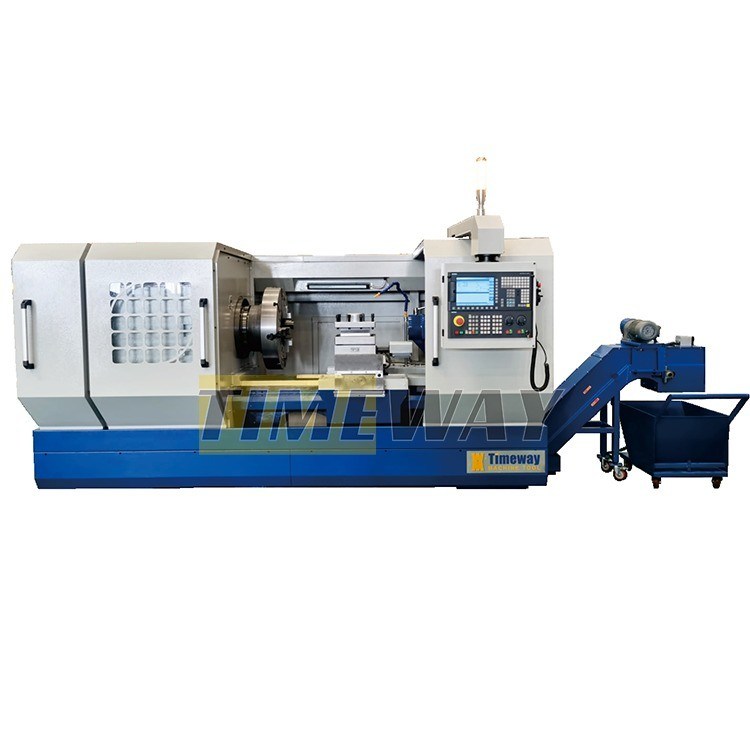

Big Bore CNC Oil Country Pipe Threading Lathe
Pipe threading range Φ270-430mm
Features:
Specification
Specifications | Unit | QK-440 |
Capacity | ||
Swing over bed | mm | 1000 |
Swing over cross slide | mm | 610 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 270-430 |
Bed width | mm | 755 |
Max. load capacity | kg | 6000 |
Spindle | ||
Spindle bore | mm | 440 |
Spindle speed steps | steps | stepless (3shifts) |
Spindle speed | rpm | 8-205 |
Chuck size | mm | 1000 |
Chuck type (electric) | - | 4-jaw |
Turret | ||
Turret type (electric) | - | V4 |
Tool shank size | mm | 40x40 |
Feed | ||
X-axis travel | mm | 520 |
Z-axis travel | mm | 1250 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 4000 |
Tailstock | ||
Tailstock quill diameter | mm | 140 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 300 |
Others | ||
Main motor power | kw | 22 |
Coolant motor power | kw | 0.125 |
Machine dimensions | mm | 5000/6500x2200x2200 |
Machine weight | kg | 13000/14000 |
Detailed Images

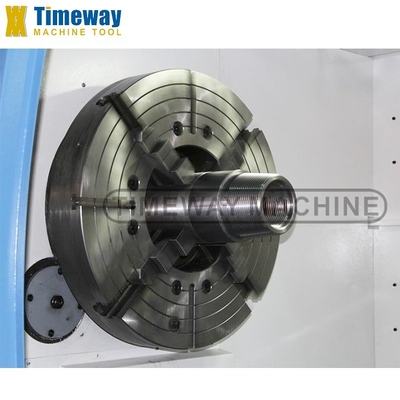

DOUBLE CHUCK
Large spindle hole for different pipes double manual chuck.

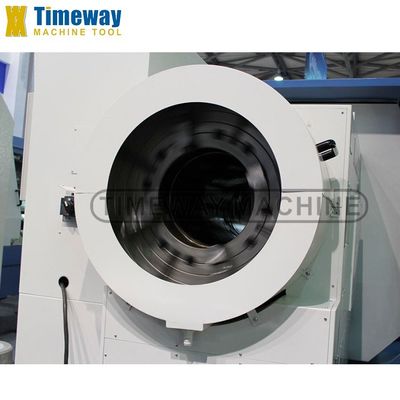

DOUBLE CHUCK
Large spindle hole for different pipes double manual chuck.

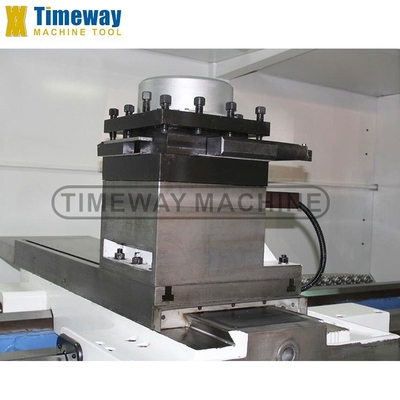

TOOL POST/TURRET
Standard with 4-staion electric toolpost
6/8-station electric turret are optional

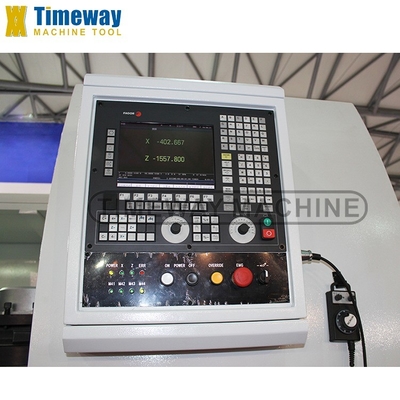

CNC CONTROL SYSTEM
GSK, Siemens,Fanuc,Syntec,Mitsubishi and others.
Accessories
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system
Big bore chuck (Front & Rear)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
OPTIONAL ACCESSORIES:
Penumatic chuck
Other tool-post
Chip conveyor
Air conditioner
Rear support for long pipe
Chip conveyor
Air conditioner
Rear support for long pipe
