330mm Petrol Drilling Manual Pipe Threading Lathe Q-330 Easy Operation and Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | Timac |
| Model Number: | Q-330x1500mm |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 1500 | Range Of Spindle Speed(r.p.m): | 7.5 - 280 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 22 | Voltage: | 380v |
| Dimension(L*W*H): | 5000x2100x1630mm | Weight (KG): | 11500 KG |
| Warranty: | 1 Year | Key Selling Points: | Easy To Operate |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 1000mm | Swing Over Cross Slide: | 610mm |
| Distance Between Centers: | 1500/3000mm | Pipe Threading Range: | 190-320mm |
| Bed Width: | 755mm | X-axis Travel: | 520mm |
| Z-axis Travel: | 1300/2800mm | Max. Loading Capacity: | 5000 |
| Spindle Bore: | 330mm | Spindle Speed Steps: | 9 |
| Condition: | New | Applicable Industries: | Home Use, Retail, Construction Works |
| Showroom Location: | Canada, Russia | Core Components: | Bearing, Pump |
| Spindle Bore(mm): | 330 | Max. Turned Length (mm): | 3000 Mm |
| Year: | 2019 | Port: | China Port |
Product Description
Product Description

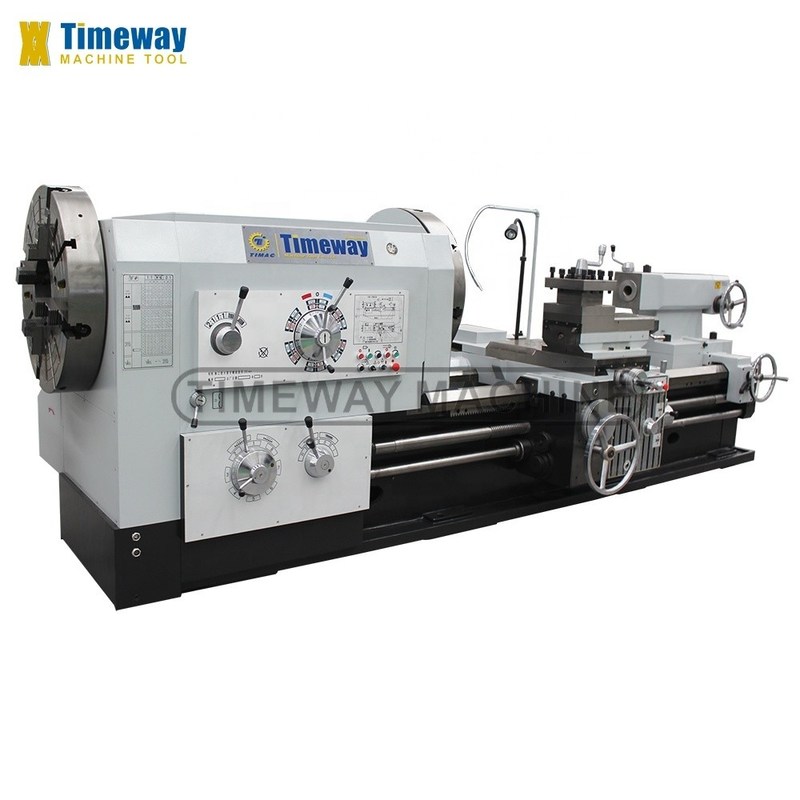

Oil Country Lathe Q-330
Features
• The oil country lathes are used for turning pipe threads, inside and outside.
• They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.

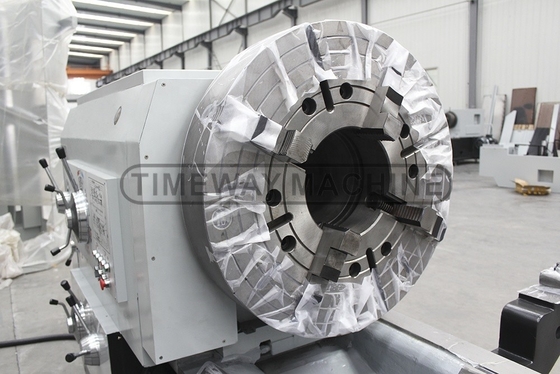

• Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
• Heavy machine bed made of premium cast-iron with hardened and ground guideways.

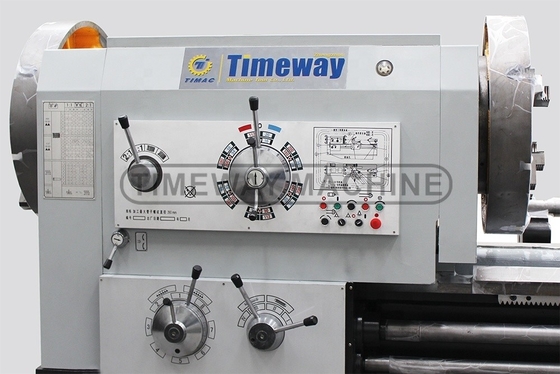

• Central, practical controls for feeds and thread leads.
• Wide spectrum of inch and metric threads.
• Gears are hardened and ground.
• Heavy-duty 4-station tool holder.
• Coolant system is included.
• They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
• Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
• High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
• Heavy machine bed made of premium cast-iron with hardened and ground guideways.
• Central, practical controls for feeds and thread leads.
• Wide spectrum of inch and metric threads.
• Gears are hardened and ground.
• Heavy-duty 4-station tool holder.
• Coolant system is included.
Specification
Specification | Unit | Q-330 |
Swing over bed | mm | 1000 |
Swing over cross slide | mm | 610 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 190-320 |
Bed width | mm | 755 |
X-axis travel | mm | 520 |
Z-axis travel | mm | 1300/2800 |
Max. loading capacity | kg | 5000 |
Spindle bore | mm | 330 |
Spindle speed steps | steps | 9 |
Accessories
Standard accessories:
* 4 - jaw independent chuck, 2 sets
* Taper turning device, 1 set
* Out board support, 1 piece

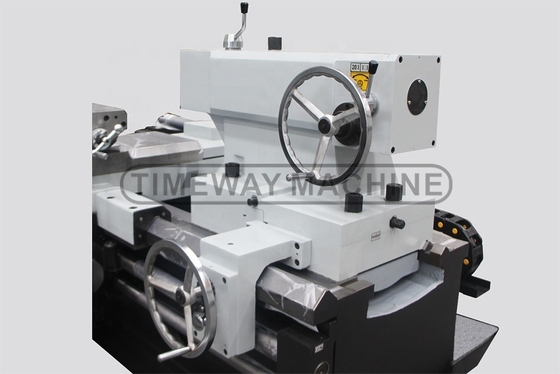

* Manual moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
* Taper turning device, 1 set
* Out board support, 1 piece
* Manual moving tailstock
* Chuck & tool post guard
* Coolant system, Halogen light
* Maintenance tool & tool box
* Operation manual in English
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
