High Precision QK-130 Lathe Machine Swing Over Cross Slide 340/540mm from Timeway
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | QK-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $69,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 11 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 390 Mm | Travel (Z Axis)(mm): | 800 Mm |
| Dimension(L*W*H): | 5177*1800*1850 | Tool Post Stations: | 12, 8, 10, 6, 4 |
| Weight (KG): | 10000 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Swing Over Bed: | 630/800mm | Swing Over Cross Slide: | 340/540mm |
| Distance Between Centers: | 1000/1500/3000mm | Pipe Threading Range: | 30-126mm |
| Bed Width: | 550mm | Max. Loading Capacity: | 3000kg |
| Spindle Bore: | 130mm | Spindle Speed Steps: | 3shifts, Stepless |
| Spindle Speed: | 30-650rpm | Chuck Size: | 400mm |
| Condition: | New | Spindle Bore(mm): | 130 |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R | Core Components: | Bearing, Motor, PLC, Engine |
| Max. Spindle Speed (r.p.m): | 1000 R.p.m | Max. Turned Length (mm): | 3000 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Product Description

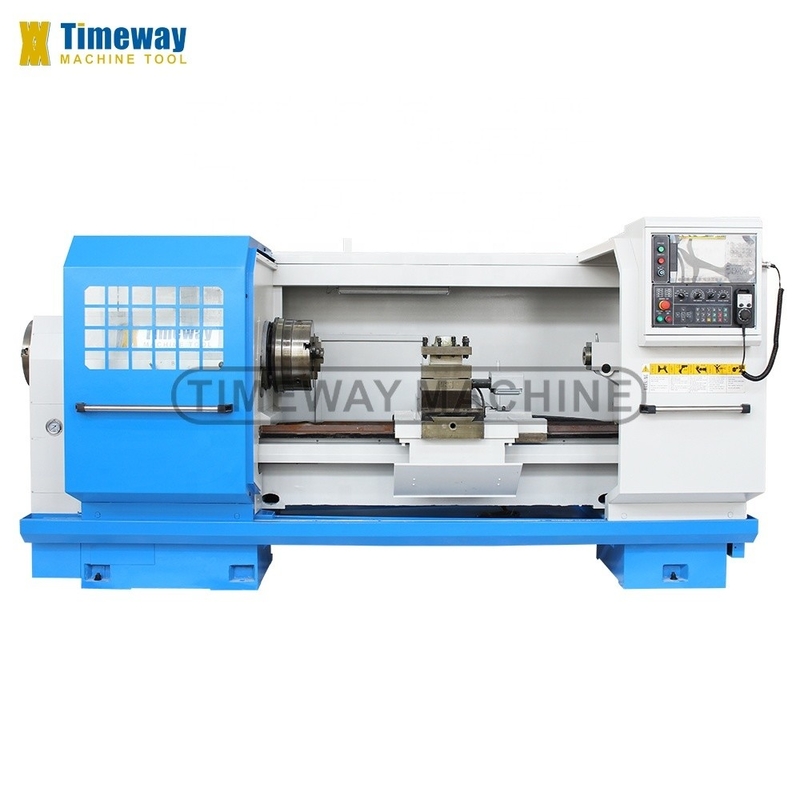

CNC Oil Country Lathe
Specification
Specifications | Unit | QK-130 |
Swing over bed | mm | 630/800 |
Swing over cross slide | mm | 340/540 |
Distance between centers | mm | 1000/1500/3000 |
Pipe threading range | mm | 30-126 |
Bed width | mm | 550 |
Max. loading capacity | kg | 3000 |
Spindle bore | mm | 130 |
Spindle speed steps | steps | 3shifts, stepless |
Spindle speed | rpm | 30-650 |
Chuck size | mm | 400 |
Accessories
Standard accessories:

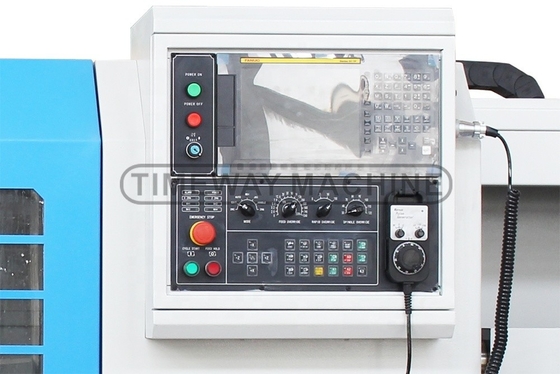

=FANUC/GSK/SIEMENS CNC system
=4-station electric tool-post
=Work lamp
=Pilot lamp
=Cooling system
=Semi-closed guard
=Manual pulse generator (MPG)
=Dead centers
=Oil gun
=Automatic lubrication pump
=Manual moving tailstock
=Tools & tool-box
=Leveling wedge & bolts
=Operation manual (English)
=Work lamp
=Pilot lamp
=Cooling system
=Semi-closed guard
=Manual pulse generator (MPG)
=Dead centers
=Oil gun
=Automatic lubrication pump
=Manual moving tailstock
=Tools & tool-box
=Leveling wedge & bolts
=Operation manual (English)
Optional accessories:
=Penumatic chuck
=Other tool-post
=Chip conveyor
=Air conditioner
=Rear support for long pipe
=Chip conveyor
=Air conditioner
=Rear support for long pipe
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized andcentralized , then they will be shipped to your designated place.
Company Profile
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
Exhibition & Training
This is a picture of clients visiting our company when we hold exhibitions around the world.
Certifications
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
FAQ
Q: Why choose TIMEWAY MACHINE?
A:1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A:(1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
