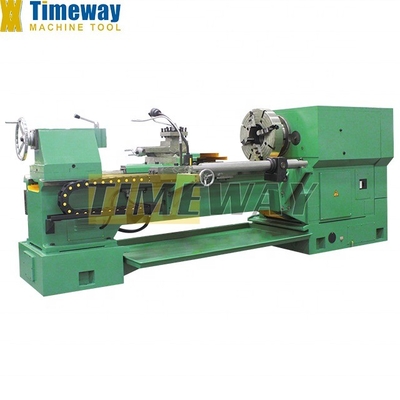

Timeway Z-Axis Travel 2810mm Oil Country Manual Lathe for Pipe Threading Turning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | Q-130 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $100,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 20 - 460 R.p.m |
|---|---|---|---|
| Machining Capacity: | Heavy Duty | Type: | Horizontal |
| Dimension(L*W*H): | 5000x2100x1630mm | Weight (KG): | 11500 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Ordinary Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Max. Weight Of Workpiece(kg): | 4000 | Spindle Taper: | Other |
| Cutting Torque: | 0 N.m | Rapid Feed Speed(mm/min): | 0.02 - 0.45 Mm/min |
| Feed Speed(mm/min): | 0 - 2300 Mm/min | Tool Post Stations: | 4 |
| Swing Over Bed: | 800mm | Swing Over Cross Slide: | 540mm |
| Distance Between Centers: | 3000mm | Pipe Threading Range: | 30-126mm |
| Bed Width: | 550mm | X-axis Travel: | 320mm |
| Z-axis Travel: | 2810mm | Max. Load Capacity: | 3000kg |
| Spindle Bore: | 130mm | Spindle Speed Steps: | FWD.18/REV.9 |
Product Description
Summary
* The oil country lathes are used for turning pipe threads, inside and outside.
* They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.

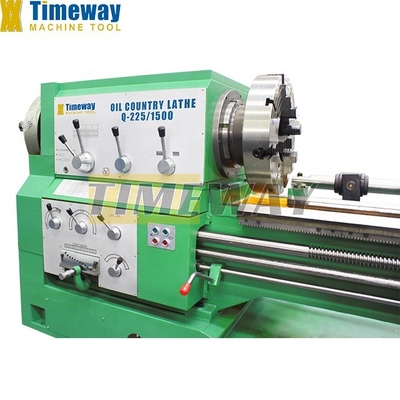

* Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
* High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
* Heavy machine bed made of premium cast-iron with hardened and ground guideways.
* Central, practical controls for feeds and thread leads.
* Wide spectrum of inch and metric threads.
* Gears are hardened and ground.

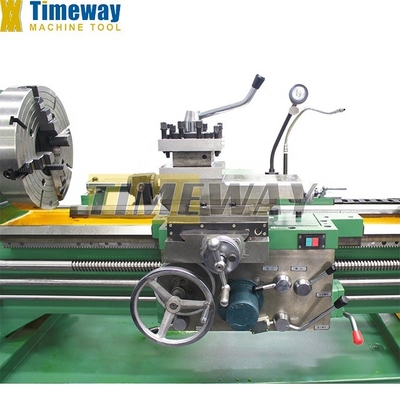

* Heavy-duty 4-station tool holder.
* Coolant system is included.
* They can be used to make external circles, holes and end surfaces of shafts or discs as general machine tools.
* Massive headstock with precision spindle running in tapered roller bearings, 2 lathe chuck mounts on both sides
* High torque at the working spindle ensures high chip removal rates when machining parts with large diameters.
* Heavy machine bed made of premium cast-iron with hardened and ground guideways.
* Central, practical controls for feeds and thread leads.
* Wide spectrum of inch and metric threads.
* Gears are hardened and ground.
* Heavy-duty 4-station tool holder.
* Coolant system is included.
Product Description

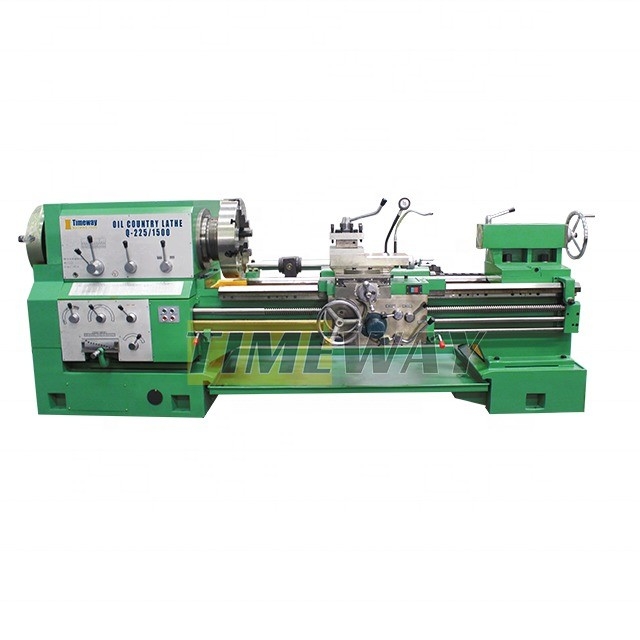

Oil Country Heavy Duty Manual Lathe
Specification
Specification | Unit | Q-130 |
Swing over bed | mm | 800 |
Swing over cross slide | mm | 540 |
Distance between centers | mm | 3000 |
Pipe threading range | mm | 30-126 |
Bed width | mm | 550 |
X-axis travel | mm | 320 |
Z-axis travel | mm | 2810 |
Max. load capacity | kg | 3000 |
Spindle bore | mm | 130 |
Spindle speed steps | steps | FWD.18/REV.9 |
Packing & Delivery
This is the picture of the packaging in our factory！You can see our package is standardized and centralized , then they will be shipped to your designated place.
Company Introduction
Since our company established, we have obtained many certificates. The above picture is for your reference. We will continue to provide excellent machine tools for domestic and foreign users.
Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
Customer Visited
Exhibitions：
Since the establishment of the Ministry of Foreign Trade, we have participated in various domestic and international exhibitions such as the Autumn Canton Fair, Beijing Exhibition, Shanghai Exhibition, Moscow, Ethiopia, and Russia, and have maintained long-term friendly cooperative relations with exhibition customers.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
