3000mm Max. Workpiece Length Pipe Threading Lathe Machine with 22kW Spindle Motor Power
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | QK-520 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $58,000.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Width Of Bed (mm): | 0 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 520 Mm | Travel (Z Axis)(mm): | 1200 Mm |
| Dimension(L*W*H): | 6500*2200*2200 | Tool Post Stations: | 12, 8, 10, 6, 4 |
| Weight (KG): | 16000 | Warranty: | 1 Year |
| Key Selling Points: | Easy To Operate | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Pipe Threading Range: | 330-510mm | Max. Swing Over Bed: | 1200mm |
| Max. Swing Over Cross Slide: | 710mm | Max. Length Of Workpiece: | 1500/3000/5000mm |
| Max. Turning Length: | 1250/2750mm | Span Of Guideway: | 765mm |
| Spindle Nose: | Thread-type | Spindle Bore: | 520mm |
| Spindle Speed: | 8-190rpm | Condition: | New |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Philippines, Brazil, Peru, Saudi Arabia, Indonesia, Mexico, Russia, Spain, Thailand, Morocco, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Sri Lanka, R | Core Components: | Bearing, Motor, PLC, Engine |
| Max. Spindle Speed (r.p.m): | 190 R.p.m | Spindle Bore(mm): | 520 |
| Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Mould, Mental Process | Marketing Type: | Hot Product |
| Port: | China Port | ||
Product Description
Product Description

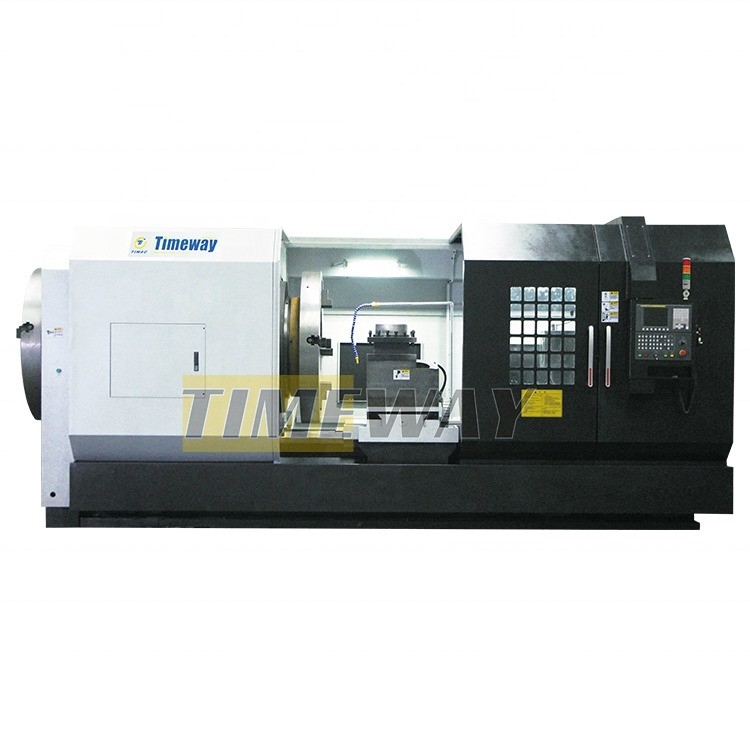

CNC oil country lathe
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.

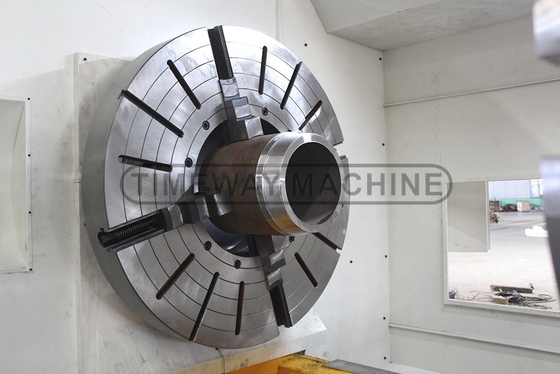

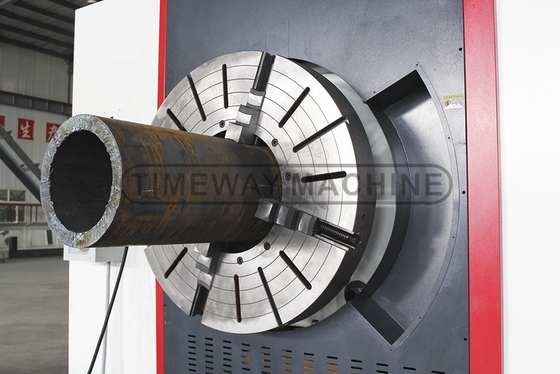

››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
Specification
Specification | Unit | QK-520 | QK-550 | QK-640 |
Pipe threading range | mm | 330-510 | 330-550 | 330-630 |
Max. swing over bed | mm | 1200 | 1250 | 1400 |
Max. swing over cross slide | mm | 710 | 900 | 800 |
Max. length of workpiece | mm | 1500/3000/5000 | 1500/3000/5000 | 1500/3000/5000 |
Max. turning length | mm | 1250/2750 | 1250/2750/4750 | 1250/2750/4750 |
Span of guideway | mm | 765 | 1100 | 1100 |
Spindle nose | - | Thread-type | A2-28 | Thread-type |
Spindle bore | mm | 520 | 550 | 640 |
Spindle speed | rpm | 8-190 (manual 3steps) | 23-258 (Manual 2steps) | 2-120 (manual 3steps) |
Chuck size | mm | 1000 (electric) | 1250 (manual) | 1250 (manual) |
Min. feed increment of X/Z-axis | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
X/Z-axis rapid feed speed | m/min | 4/4 | 4/4 | 4/4 |
X-axis travel | mm | 520 | 750 | 750 |

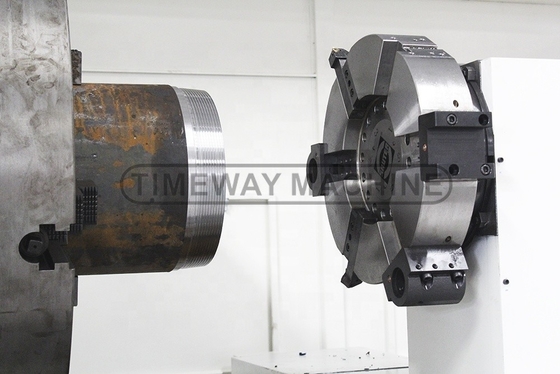

Turret type | mm | V4 | V4 | V4 |
Section of tool shank | mm | 50x50 | 50x50 | 50x50 |
Indexing repeatility | mm | 0.008 | 0.008 | 0.008 |
Max. cutting force | N | 30000 | 30000 | 30000 |
Tailstock quill diameter | mm | 160 | 260 | 260 (rotary quill) |
Tailstock quill travel | mm | 300 | 300 | 300 |
Tailstock quill taper | - | MT6 | metric 80 | Metric 80 |
Main motor power | kw | 22 | 37 | 37 |
Working accuracy | um | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness | um | Ra1.6 | Ra1.6 | Ra1.6 |
Machine length | mm | 5000/6500/9000 | 5500/7000/9000 | 5600/7100/9100 |
Machine width | mm | 2300 | 2500 | 2500 |
Machine height | mm | 2200 | 2500 | 2500 |
Machine weight | tons | 15/16/20 | 17.8/19/23 | 18/19.3/24 |

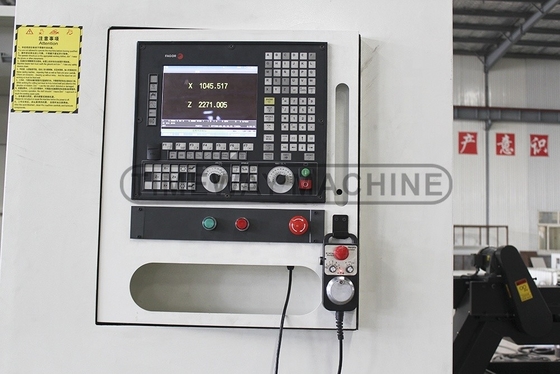

CNC system | - | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS |
