Our factory was established in 2014. It has professional technicians, a research and development team, manufactures and sells CNC equipment and provides professional customized services.Our products are widely used in mold processing, 3C products, agricultural machinery, petroleum machinery, auto parts processing, aerospace industry, etc., selling more than 60 countries and regions in domestic and abroad.
 |
Medium Duty Oil Country Lathe Q-225 Advanced Technical Equipment for and Production
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | Q-225 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $20,000.00/sets 1-2 sets |

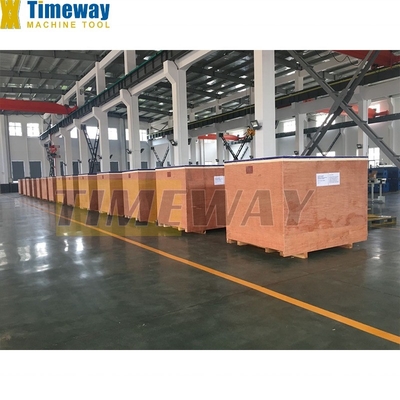

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 800 | Machining Capacity: | Medium Duty |
|---|---|---|---|
| Type: | Horizontal | Weight (KG): | 5700 KG |
| Warranty: | 1 Year | Key Selling Points: | Competitive Price |
| Marketing Type: | Hot Product | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Bench Lathe | Machine Type: | Metal Work Lathe |
| Product Name: | Machine Lathe | Keyword: | Metalworking Machine |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Processing: | Metal Workpiece | Key Word: | Horizontal Manual Lathe Machine |
| Color: | Customrized | Usage: | Metal Processing Lathe Machine |
| Condition: | New | Showroom Location: | Canada, United Kingdom, United States, France, Germany, Philippines, Saudi Arabia, Pakistan, Russia, Thailand, Kenya, Argentina, South Korea, Chile, UAE, Colombia, Algeria, Bangladesh, Japan |
| Core Components: | Bearing, Pump, Gear, Motor, Gearbox, PLC, Engine | Spindle Bore(mm): | 225 |
| Max. Turned Length (mm): | 3000 Mm | Applicable Industries: | Machinery Repair Shops, Manufacturing Plant, Retail, Construction Works , Energy & Mining, Other |
| Port: | China Port | ||
Product Description
Products Description
Q-225

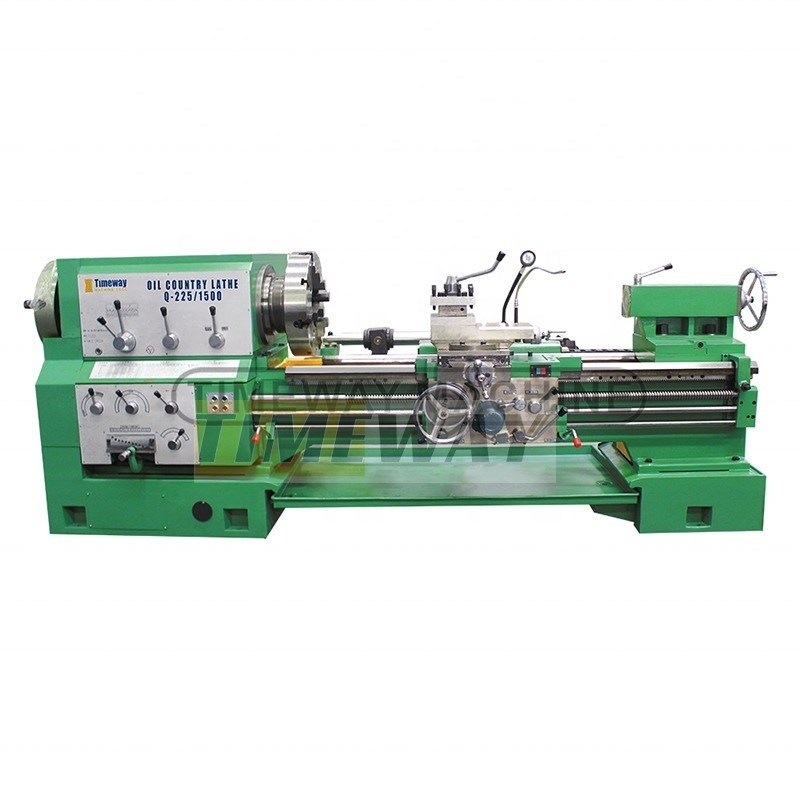

Oil Country Lathe:
Specification | Unit | Q-225 |
Max. swing over bed | mm | 630/800 |
Max. swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 50-220 |
Bed width | mm | 550 |
X-axis travel | mm | 320/420 |
Z-axis travel | mm | 1350/2850 |
Loading capacity | kg | 3000 |
Spindle bore | mm | 225 |
Spindle speed steps | steps | CCW: 12/CW: 9 |
Spindle speed | rpm | 20-480 |
Chuck size | mm | 520 |
Chuck type (manual) | - | 4-jaw |
Turret type (manual) | - | V4 |
Tool shank size | mm | 30x30 |
X-axis feed range (steps) | mm/r | 0.02-0.45 (22) |
X-axis rapid feed speed | mm/min | 2300 |
Z-axis feed range (steps) | mm/r | 0.07-1.33 (26) |
Z-axis rapid feed speed | mm/min | 4000 |
No. of Metric thread and range | mm | 1-14 (24) |
No. of Inch thread and range | TPI | 28-2 (40) |
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 11 |
Rapid feed motor power | kw | 0.3 |
Coolant motor power | kw | 0.125 |
Machine dimensions (LxWxH) | mm | 3700/5200x1650x1550 |
Machine weight | kg | 4500/5700 |
Positive Comments From Customers
Company Introduction

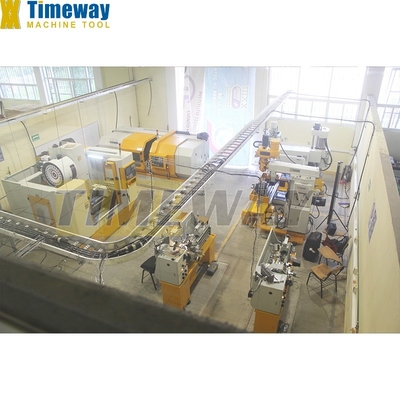

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
Want to Know more details about this product
