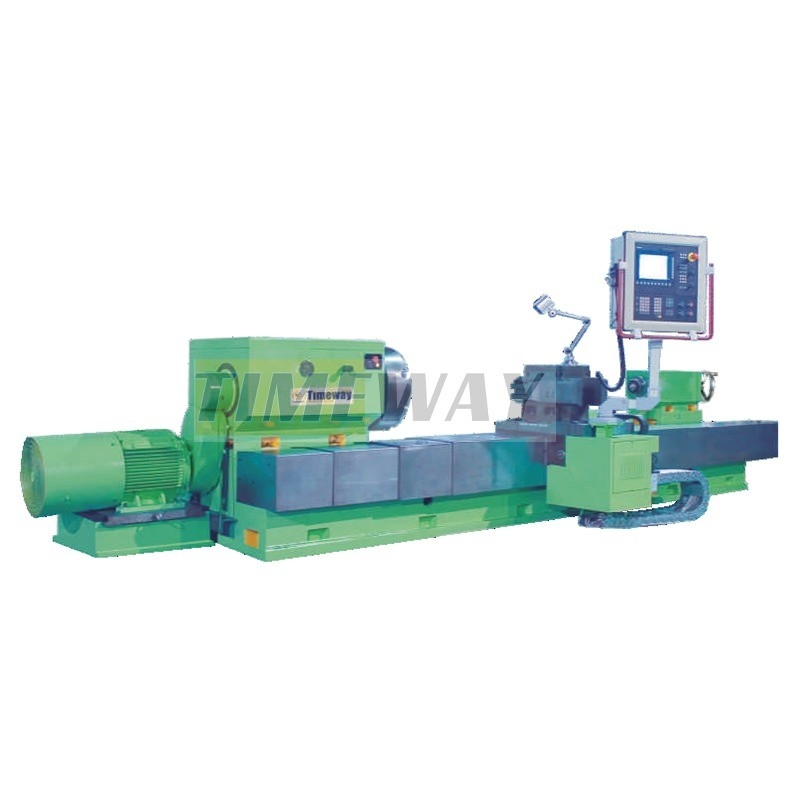

Metal Workpiece Processing Customrized Heavy Duty Guide Rail Horizontal Rolling CNC Lathe
Product Details:
| Place of Origin: | China |
| Brand Name: | TIMEWAY |
| Model Number: | NLK-500 NLK-650 NLK-800 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $86,000.00/sets 1-2 sets |

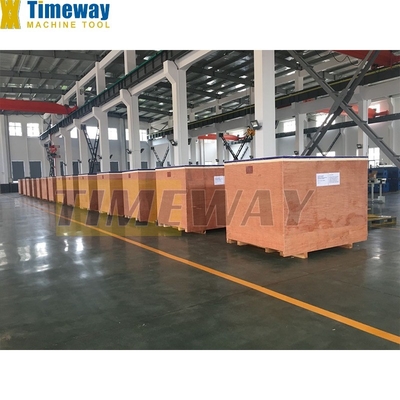

| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 5000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 550 Mm | Spindle Motor Power(kW): | 55 |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 300 Mm | Travel (Z Axis)(mm): | 5000 Mm |
| Tool Post Stations: | 12, 8, 10, 6, 4 | Weight (KG): | 24000 |
| Warranty: | 1 Year | Key Selling Points: | Multifunctional |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Machine Type: | Metal Work Lathe |
| Product Name: | Machine Lathe | Keyword: | Metalworking Machine |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Processing: | Metal Workpiece | Key Word: | Horizontal Manual Lathe Machine |
| Color: | Customrized | Usage: | Metal Processing Lathe Machine |
| Name: | Metal Cnc Lathe | Condition: | New |
| Spindle Bore(mm): | 800 | Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant |
| Showroom Location: | Egypt, Canada, Turkey, United Kingdom, United States, Italy, France, Germany, Viet Nam, Brazil | Max. Spindle Speed (r.p.m): | 400 R.p.m |
| Marketing Type: | Hot Product | Core Components: | Bearing, Motor, Pump, Gear, Pressure Vessel, Engine, Gearbox, Other |
| Port: | China Port | ||
Product Description
Products Description
NLK-800
CNC Oil Country Lathe:
SPECIFICATION | UNIT | NLK-500 | NLK-650 | NLK-800 |
Max. swing diameter over bed | mm | 500 | 650 | 800 |
Max. length of workpiece | mm | 2500 | 3500 | 4000/5000 |
Center hight | mm | 400 | 470 | 550 |
Load capacity | kg | 3500 | 6000 | 12000 |
Max. Cutting force | KN | 25 | 40 | 50 |
Spindle chuck torque | KN.m | 6 | 12 | 16 |
Spindle speed range | rpm | 2-400 | 1.5-300 | 1.25-250 |
Spindle speed steps | - | stepless | stepless | stepless |
Changing gears type | - | hydraulic auto. | hydrualic auto. | hydraulic auto. |
Chuck diameter | mm | 500 | 650 | 800 |
Spindle taper | - | No.120 | No.120 | φ100, 1:7 |
Feed speed steps | - | stepless | stepless | stepless |
Longitudinal feed speed (Z) | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
Z-axis rapid feed speed | mm/min | 4000 | 4000 | 4000 |
Cross feed speed (X) | mm/min | 0.1-1000 | 0.1-1000 | 0.1-1000 |
X-axis rapid feed speed | mm/min | 2000 | 2000 | 2000 |
Tailstock quill travel | mm | 250 | 200 | 300 |
Tailstock quill diameter | mm | 180 | 200 | 280 |
Tailstock rapid feed speed | mm/min | 3000 | 3000 | 3000 |
Tailstock quill taper | - | MT5 | φ60, 1:7 | φ80, 1:7 |
Controlled type of tailstock | - | electric | electric | electric |
Variable frequency AC motor power | kw | 22 | 37 | 55 |
Torque of longitudinal feed motor (Z) | N.m | 27 | 36 | 36 |
Torque of cross feed motor (X) | N.m | 18 | 27 | 27 |

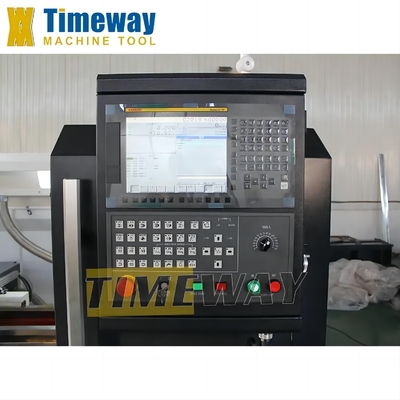

CNC Controller | - | SIEMENS | SIEMENS | SIEMENS |
Machine dimensions (Lx W x H) | mm | 6600×2100×1400 | 7600×1715×1600 | 9380/10240x2300x1800 |
Machine weight (approx) | kg | 11000 | 15000 | 25000/30000 |
Positive Comments From Customers
Company Introduction

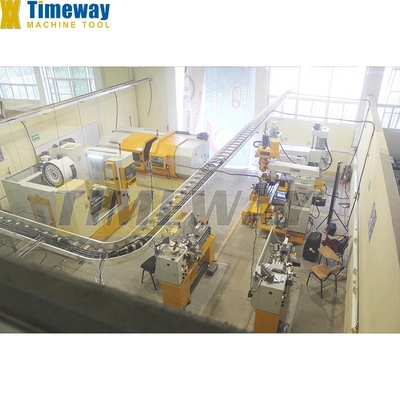

Factory Display：
Text Introduction：
Company Profile：
Timeway Machine Tool Co., Ltd. is a professional machine tool manufacturing enterprises, the main products include lathe, milling machine, grinding machine, etc., and according to customer needs we also can design and manufacture various special purpose machines, to provide relative technology upgrading and transformation services in machine tool field.
FAQ
Q: Why choose TIMEWAY MACHINE?
A: 1 . High quality with competitive price; 2 . Professional R&D team and 25 years export experience; 3 . Exported more than 60 countries; 4 . CE, ISO Certificates; 5 . 24 HOURS ONLINE SERVICE (SKYPE, WhatsApp, Wechat, Trademanager); 6 . 12 months quality warranty; 7 . Oversea engineers available for problem resolving; Q: Do you have QC or any safety standards for your machinery? A: yes, we have established a highly strict quality control department to guanrantee good quality. Q: What's the MOQ? A: 1 set (Only some low cost machines will be more than 1 set ) Q: What about the payment terms? A: (1) T/T with 30% advanced payment, and 70% balance payment to be paid before shipment; (2) Irrevocable LC at sight; (3) Western Union, MoneyGram, etc. Q: How about the warranty? A: Warranty Period is one year after delivery. Even beyond the period, we will supply lifetime service for machine.
