››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
 |

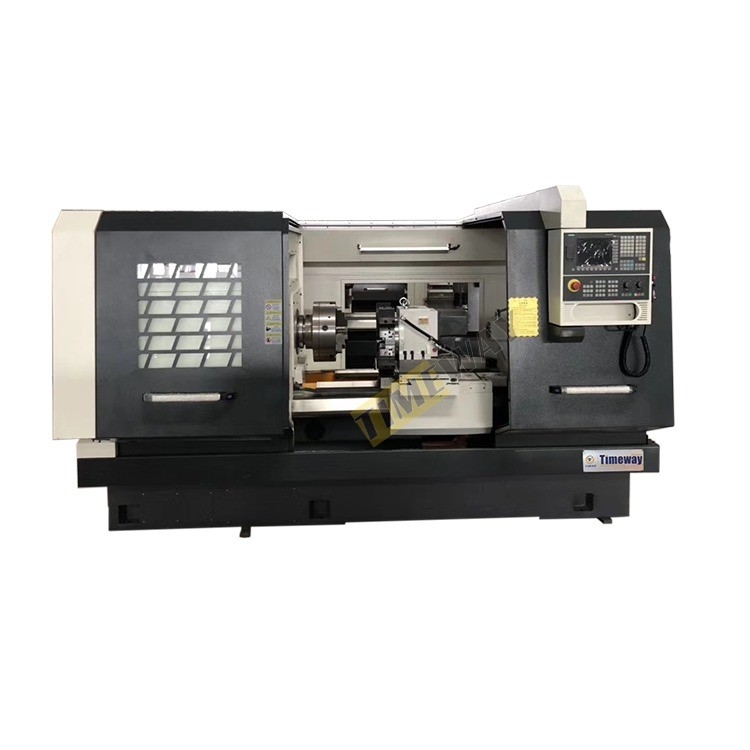

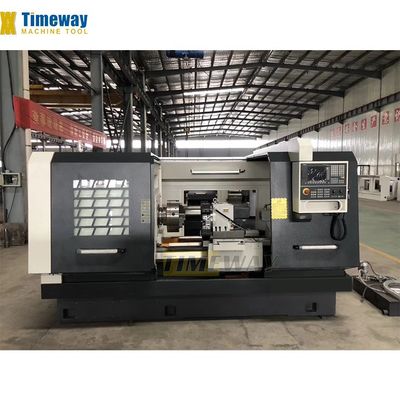

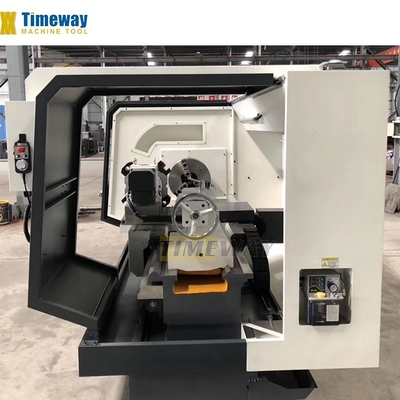

Customizable CNC Pipe Threading Lathe 5600*1930*1900 Max. Weight of Workpiece kg 9000
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Certification: | ISO9001 |
| Model Number: | QK-280 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,850.00/sets 1-2 sets |
| Packaging Details: | Wooden cases(can be fumigated) |
| Supply Ability: | 150 Set/Sets per Month |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Light Duty |
| Max. Weight Of Workpiece(kg): | 9000 | Width Of Bed (mm): | 356 Mm |
| Spindle Motor Power(kW): | 11 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 570 Mm |
| Travel (Z Axis)(mm): | 850 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 5600*1930*1900 |
| Voltage: | 220V | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 7700 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Lathe Machine CNC | Product Name: | CNC Lathe Mechine |
| Function: | Machining Metal | Precision: | High Precision Machine |
| Product Type: | Economical CNC Lathe | Color: | Customer Optional |
| Processing: | Metal Working Lathe Machine | Spindle Speed: | 5-400rpm |
| Condition: | New | Toolpost Brand: | Hongda |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | None |
| Marketing Type: | Hot Product 2019 | Core Components: | Motor, Pump |
| Year: | 2023 | Max. Spindle Speed (r.p.m): | 400 R.p.m |
| Spindle Bore(mm): | 275 | Max. Turned Length (mm): | 3000 |
| Port: | China Port | ||
Product Description
Products Description
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
√ FANUC/SIEMENS/GSK CNC system √ Big bore chuck (Front & Rear)√ Dead centers √ 4-station electric tool-post √ Cooling system √ Work lamp √ Pilot lamp √ Semi-closed guard √ Manual pulse generator (MPG) √ Automatic lubrication system √ Oil gun √ Manual moving tailstock √ Tools & tool-box √ Leveling wedge & bolts √ Operation manual (English) | _ Pneumatic chuck _ Other tool post _ Steady rest _ Follow rest _ Air conditioner _ Chip conveyor _ Rear support for long pipe _ Live centers |
Specification | Unit | QK-280 | QK-330 | QK-390 | QK-440 |
Pipe threading range | mm | 130-270 | 190-320 | 190-380 | 270-430 |
Max. swing over bed | mm | 1000 | 1000 | 1000 | 1000 |
Max. swing over cross slide | mm | 610 | 610 | 610 | 610 |
Max. length of workpiece | mm | 1500/3000 | 1500/3000 | 1500/3000 | 1500/3000 |
Max. turning length | mm | 1250/2750 | 1250/2750 | 1250/2750 | 1250/2750 |
Span of guideway | mm | 755 | 755 | 755 | 755 |
Spindle nose | - | Thread type | Thread-type | Thread-type | Thread-type |
Spindle bore | mm | 280 | 330 | 390 | 440 |
Spindle speed | rpm | 10-320 (manual 4steps) | 10-280 (manual 3steps) | 8-205 (manual 3steps) | 8-205 (manual 3steps) |
Chuck size | mm | 800 (manual) | 780 (electric) | 850 (electric) | 1000 (electric) |
Min. feed increment of X/Z-axis | mm | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 | 0.001/0.001 |
X/Z-axis rapid feed speed | m/min | 4/4 | 4/4 | 4/4 | 4/4 |
X-axis travel | mm | 520 | 520 | 520 | 520 |
Turret type | mm | V4 | V4 | V4 | V4 |
Section of tool shank | mm | 40x40 | 40x40 | 40x40 | 40x40 |
Indexing repeatility | mm | 0.008 | 0.008 | 0.008 | 0.008 |
Max. cutting force | N | 29400 | 29400 | 29400 | 29400 |
Tailstock quill diameter | mm | 160 | 160 | 160 | 160 |
Tailstock quill travel | mm | 300 | 300 | 300 | 300 |
Tailstock quill taper | - | MT6 | MT6 | MT6 | MT6 |
Main motor power | kw | 22 | 22 | 22 | 22 |
Working accuracy | um | IT6-IT7 | IT6-IT7 | IT6-IT7 | IT6-IT7 |
Surface roughness | um | Ra1.6 | Ra1.6 | Ra1.6 | Ra1.6 |
Machine length | mm | 4950/6450 | 5000/6500 | 5000/6500 | 5000/6500 |
Machine width | mm | 2050 | 2080 | 2220 | 2220 |
Machine height | mm | 2050 | 2080 | 2120 | 2120 |
Machine weight | tons | 10.5/12.2 | 11.5/12.5 | 12/13 | 13/14 |
CNC system | - | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS | FANUC/SIEMENS |
Machine Details

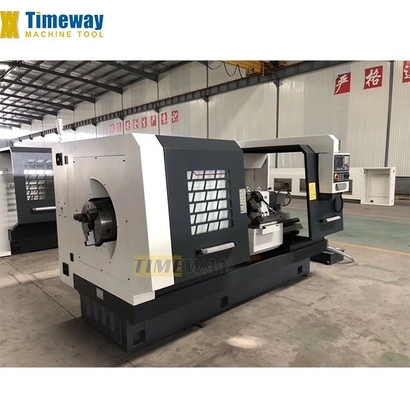

Double chucks (Front & Rear):
The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

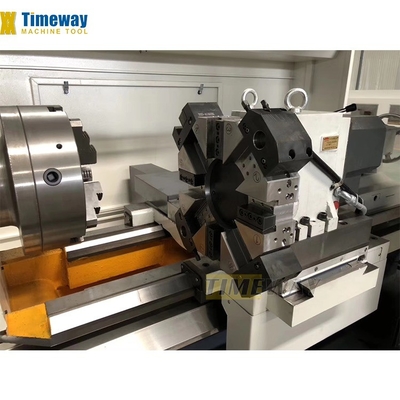

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.
Tailstock:
- Manual moving tailstock comes standard, the electric moving taisltock comes optional.

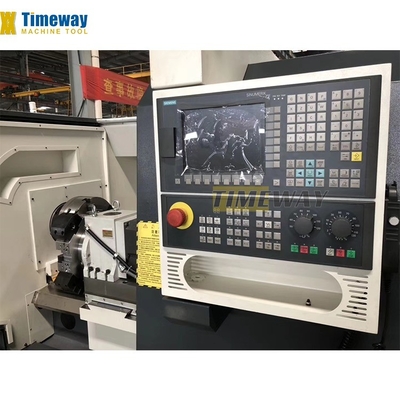

CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Automatic Production Line for Steel Pipe Threads (optional):
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC oil country lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
Why Choose Us
Renishaw laser interferometer (only for CNC oil country lathe)：
Before the delivery, it adopts UK RENISHAW laser to do dynamic precision testing and offset, so the machine has the high positioning accuracy and re-positioning accuracy.
