High Precision Multifunctional Special CNC Oil Country Lathe for Pipe Threading Needs
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timac |
| Model Number: | QK-330 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $62,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 0 | Width Of Bed (mm): | 0 Mm |
| No. Of Spindles: | Twin | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 520 Mm | Travel (Z Axis)(mm): | 2750 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.001 |
| Dimension(L*W*H): | 6500*2080*2080 | Voltage: | 280v |
| CNC Control System: | FANUC | Tool Post Stations: | 8, 4 |
| Weight (KG): | 125000 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 10 - 280 R.p.m | Travel (Y Axis)(mm): | 0 Mm |
| Spindle Taper: | BT40 | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 4000 Mm/min | Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | Swing Over Bed: | 1000mm |
| Swing Over Cross Slide: | 610mm | Distance Between Centers: | 1500/3000mm |
| Pipe Threading Range: | 190-320mm | Bed Width: | 755mm |
| Max. Load Capacity: | 6000kg | Spindle Bore: | 330mm |
| Spindle Speed Steps: | Stepless | Spindle Speed: | 10-240rpm |
| Chuck Size: | 780mm | ||
Product Description
Product Description

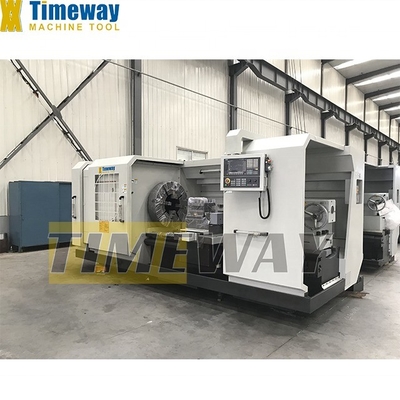

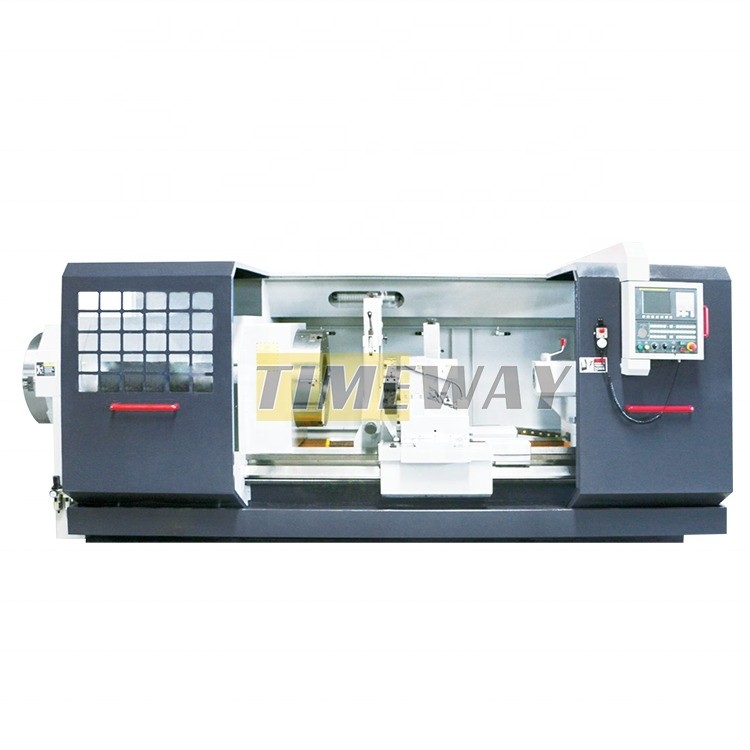

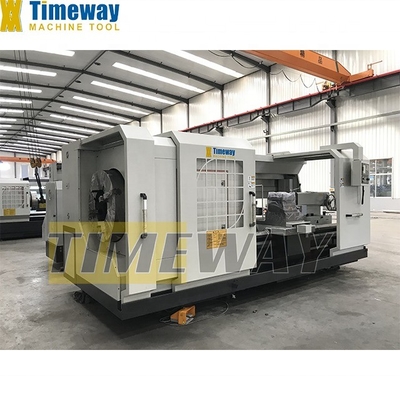

CNC Oil Country Lathe
Features:
=Adopt high quality cast iron (HT300) one molding casting, bed width (755mm), loading capacity 6000kg. After the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
=Spindle is two-point supported by precision heavy load bearing, rotating stability and smoothly.
=Spindle driven by large torque frequency main motor, torque of spindle is big, heavy-powerful cutting.
=Complete with front and rear hollow chuck as standard, according to users’ need different types of manual, electric, pneumatic and hydraulic chuck can be chosen.
=Standard complete with 4-station turret, it is free lifting and index quickly and easily; the vertical 6-station and horizontal 6/8-station and other electric turret can be chosen.
=The X-direction and Z-direction use the precision and grade ball screw, ensured a high processing accuracy, positioning accuracy and repostioning accuracy.
=Spindle is two-point supported by precision heavy load bearing, rotating stability and smoothly.
=Spindle driven by large torque frequency main motor, torque of spindle is big, heavy-powerful cutting.
=Complete with front and rear hollow chuck as standard, according to users’ need different types of manual, electric, pneumatic and hydraulic chuck can be chosen.
=Standard complete with 4-station turret, it is free lifting and index quickly and easily; the vertical 6-station and horizontal 6/8-station and other electric turret can be chosen.
=The X-direction and Z-direction use the precision and grade ball screw, ensured a high processing accuracy, positioning accuracy and repostioning accuracy.
Specification
Specifications | Unit | QK-330 |
Capacity | ||
Swing over bed | mm | 1000 |
Swing over cross slide | mm | 610 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 190-320 |
Bed width | mm | 755 |
Max. load capacity | kg | 6000 |
Spindle | ||
Spindle bore | mm | 330 |
Spindle speed steps | steps | stepless (3shifts) |
Spindle speed | rpm | 10-240 |
Chuck size | mm | 780 |
Chuck type | - | Electrical 4-jaw |
Turret | ||
Turret type (electric) | - | V4 |
Tool shank size | mm | 40x40 |
Feed | ||
X-axis travel | mm | 520 |
Z-axis travel | mm | 1250 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 4000 |
Tailstock | ||
Tailstock quill diameter | mm | 140 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 300 |
Others | ||
Main motor power | kw | 22 |
Coolant motor power | kw | 0.125 |
Machine dimensions | mm | 4900/6400x2100x2100 |
Machine weight | kg | 11500/12500 |
Accessories
STANDARD ACCESSORIES:

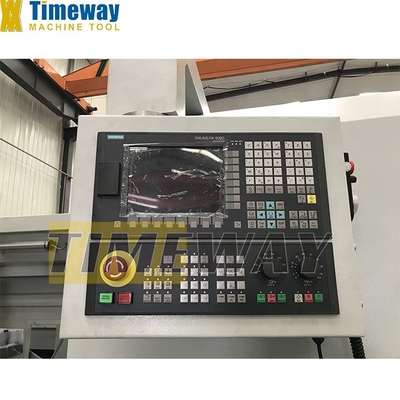

FANUC/GSK/SIEMENS CNC system
Big bore chuck (Front & Rear)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
OPTIONAL ACCESSORIES:
Penumatic chuck
Other tool-post
Chip conveyor
Air conditioner
Rear support for long pipe
Chip conveyor
Air conditioner
Rear support for long pipe
