4-Station Tool Post QK-300F CNC Oil Country Lathe Perfect for Pipe Thread Turning
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | QK-300F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 0 | Width Of Bed (mm): | 0 Mm |
| No. Of Spindles: | Single | Number Of Axes: | 3 |
| Travel (X Axis)(mm): | 450 Mm | Travel (Z Axis)(mm): | 1250 Mm |
| Positioning Accuracy (mm): | ±0.001 | Repeatability (X/Y/Z) (mm): | ±0.002 |
| Dimension(L*W*H): | 4100/5600*2100*2100 | Voltage: | 220V/380V |
| CNC Control System: | FANUC | Tool Post Stations: | 4 |
| Weight (KG): | 7500 | Warranty: | 1 Year |
| Key Selling Points: | Multifunctional, Competitive Price, High-accuracy, Sustainable | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Range Of Spindle Speed(r.p.m): | 20 - 300 R.p.m | Travel (Y Axis)(mm): | 0 Mm |
| Spindle Taper: | BT40 | Cutting Torque: | 0 N.m |
| Rapid Feed Speed(mm/min): | 0 - 4000 Mm/min | Feed Speed(mm/min): | 0 - 4000 Mm/min |
| Min. Time Of Tool Change(s): | 0.7 | Swing Over Bed: | 800mm |
| Swing Over Cross Slide: | 480mm | Distance Between Centers: | 1500/3000mm |
| Pipe Threading Range: | 130-300mm | Bed Width: | 600mm |
| Max. Load Capacity: | 4000kg | Spindle Bore: | 305mm |
| Spindle Speed: | 20-300rpm | Chuck Size: | 630mm |
| Chuck Type (manual): | 4-jaw | ||
Product Description
Product Description

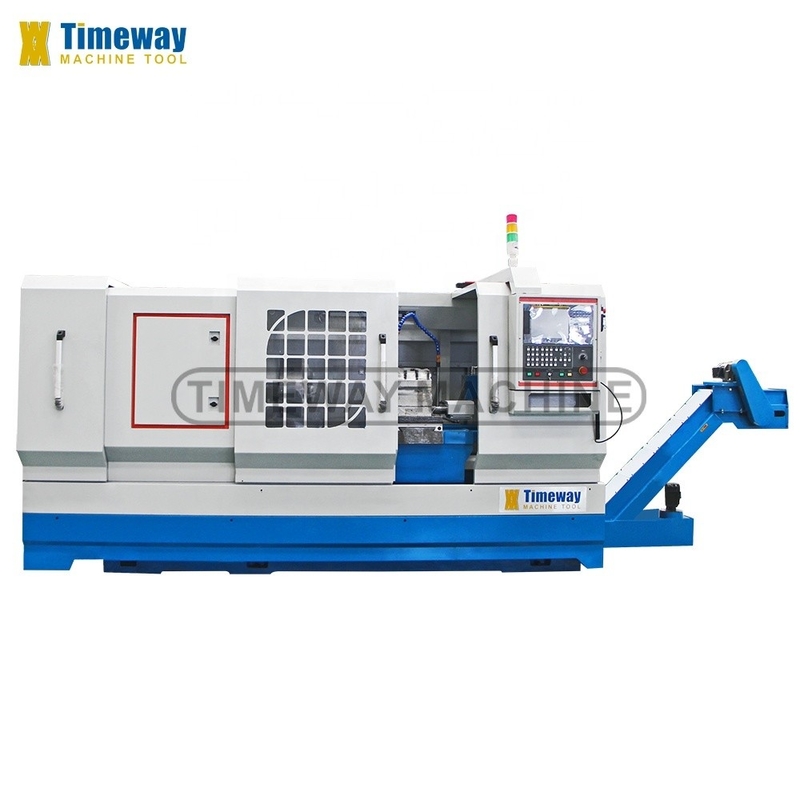

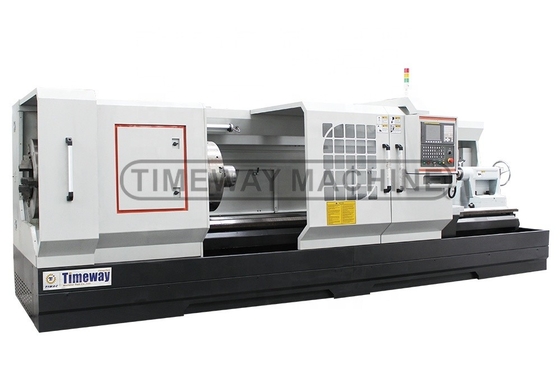

CNC Oil Country Lathe
Features:
CNC oil country lathe is mainly developed for the turning of oil field pipe thread, it is not only suitable for all kinds of pipe thread turning, but also can be used for ordinary CNC lathe, suitable for processing complex shape of the shaft, disk parts, such as turning inner and outer cylindrical surface, conical surface, circular surface, end face, chamfer. Especially for multi-species, small batch of turning processing, process adaptability, high processing efficiency, low scrap rate, good product consistency, easy programming, simple operation,reducing the technical requirements of workers, it is the ideal medium mechanical processing equipment.
Specification
Specifications | Unit | QK-300F |
Capacity | ||
Swing over bed | mm | 800 |
Swing over cross slide | mm | 480 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 130-300 |
Bed width | mm | 600 |
Max. load capacity | kg | 4000 |
Spindle | ||
Spindle bore | mm | 305 |
Spindle speed | rpm | 20-300 |
Chuck size | mm | 630 |
Chuck type (manual) | - | 4-jaw |
Turret | ||

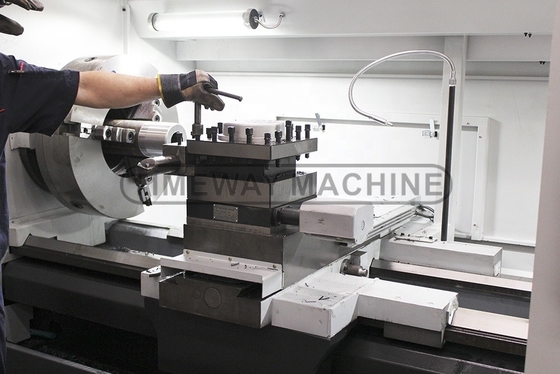

Turret type (electric) | - | 4-stations |
Tool shank size | mm | 32x32 |
Feed | ||
X-axis travel | mm | 450 |
Z-axis travel | mm | 1250/2750 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 4000 |

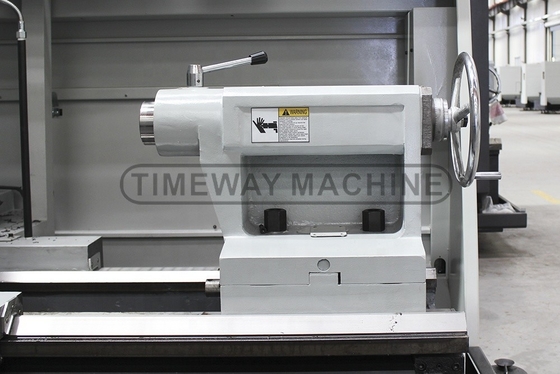

Tailstock | ||
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 250 |
Others | ||
Main motor power | kw | 15 |
Coolant motor power | kw | 0.125 |
Machine dimensions | mm | 4100/5600x2100x2100 |
Machine weight | kg | 6700/9000 |
Accessories
Standard accessories:

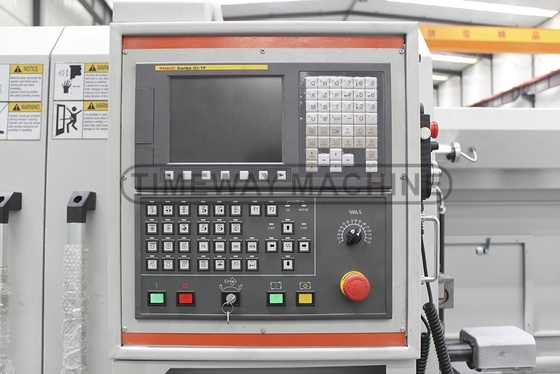

FANUC/GSK/SIEMENS CNC system
Big bore chuck (Front & Rear)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)

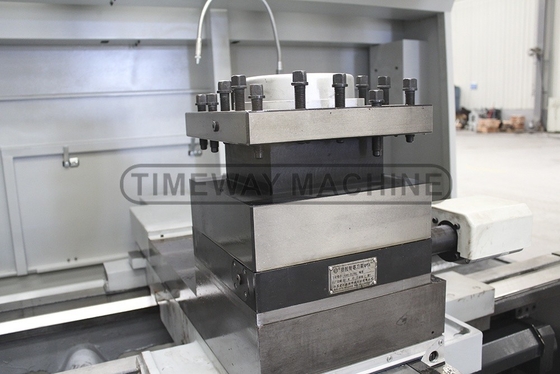

4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
Optional accessories:
Penumatic chuck
Other tool-post
Chip conveyor
Air conditioner
Rear support for long pipe
Chip conveyor
Air conditioner
Rear support for long pipe
