Product Details:

Place of Origin: Henan, China
Brand Name: timeway/timac
Model Number: Q-280

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $50,000.00/sets 1-2 sets
Packaging Details: Wooden cases(can be fumigated)
Supply Ability: 150 Set/Sets per Month
Get Best Price Contact Now

Detail Information
Max. Length Of Workpiece (mm): 3000 Range Of Spindle Speed(r.p.m): 16 - 380 R.p.m
Machining Capacity: Medium Duty Type: Horizontal
Spindle Motor Power(kW): 22 Dimension(L*W*H): 6400*2100*1600
Weight (KG): 11500 KG Warranty: 1 Year
Key Selling Points: Easy To Operate Marketing Type: Ordinary Product
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 1 Year Name: Pipe Thread Lathe
Machine Type: Horizontal Normal Lathe Model: Q-280
Color: Customer Appoint Distance Between Centers: 1500/3000mm
Spindle Bore: 280mm Spindle Speed: 16-380rpm
Max.swing Over Bed: 1000mm Bed Width: 755mm
Machine Weight: 11500kg Condition: New
Applicable Industries: Building Material Shops, Machinery Repair Shops, Home Use, Retail, Printing Shops, Construction Works , Energy & Mining Showroom Location: United Kingdom, Italy, Russia, Spain, Kenya, South Korea
Core Components: Bearing, Pump, Gear, Motor, Gearbox, PLC, Pressure Vessel, Engine Spindle Bore(mm): 280
Max. Turned Length (mm): 3000 Mm

Product Description

Products Description

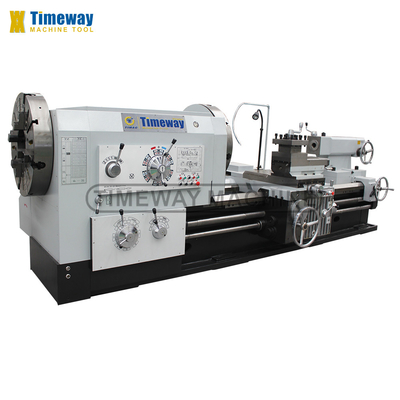

22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 0

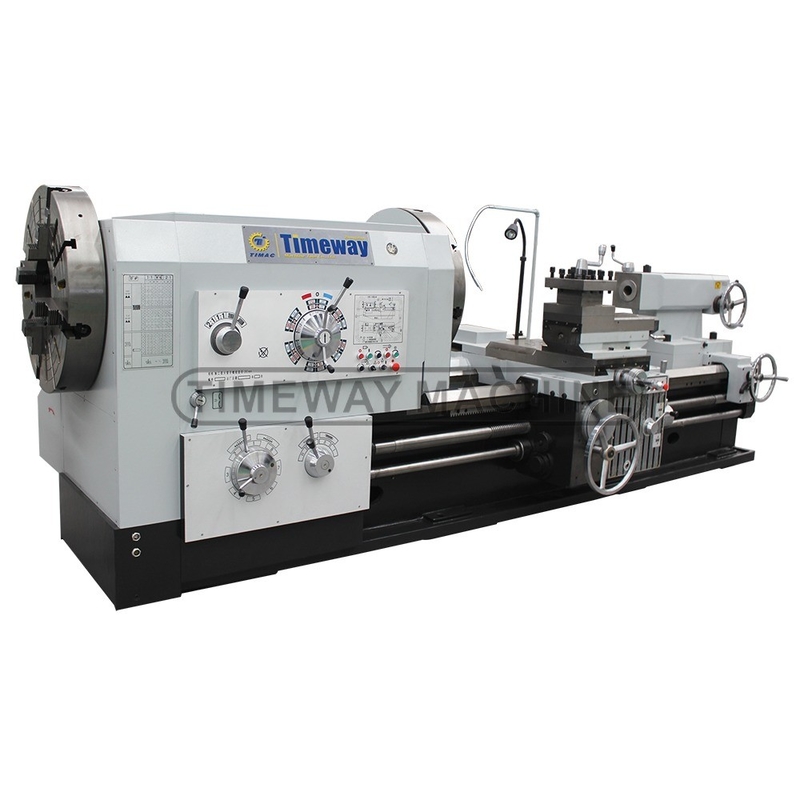

22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 1
Applications of the oil country lathe:
The oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with a taper turning attachment which can work out long taper.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 2
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station tool-post
√ Taper turning attachment
√ Cooling system
√ Work lamp
√ Chip collecting plate
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)

_ Steady rest
_ Follow rest
_ Rear support for long pipe
_ Live centers
_ 2 or 3-axis DRO
_ Quick changing tool post
_ Chuck guard
_ Tool post guard
_ Rear splash guard


22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 3
Specification
Unit
Q-280
Q-330
Q-360
Max. swing over bed
mm
1000
1000
1000
Max. swing over cross slide
mm
610
610
610
Distance between centers
mm
1500/3000
1500/3000
1500
Pipe threading range
mm
130-270
190-320
190-350
Bed width
mm
755
755
755
X-axis travel
mm
520
520
520
Z-axis travel
mm
1350/2850
1350/2850
1350/2850
Max. load capacity
kg
6000
6000
6000
Spindle bore
mm
280
330
360
Spindle speed steps
steps
12
9
2 (inverter)
Spindle speed
rpm
16-380
7.5-280
30-260
Chuck size
mm
800
780
780
Chuck type
-
4-jaw manual
4-jaw electric
4-jaw electric
Turret type (manual)
-
V4
V4
V4
Tool shank size
mm
45x45
45x45
45x45
X-axis feed range(steps)
mm/r
0.05-1.5(40)
0.05-0.75(32)
0.05-0.75 (32)
X-axis rapid feed
mm/min
1870
1870
1870
Z-axis feed range(steps)
mm/r
0.1-3(40)
0.1-1.5(32)
0.1-1.5 (32)
Z-axis rapid feed
mm/min
3740
3740
3740
No. of Metric thread and range
mm
1-30(30)
1-15(23)
1-15 (23)
No. of Inch thread and range
TPI
1-28(27)
2-28(22)
2-28(22)
Tailstock quill diameter
mm
140
140
140
Tailstock quill taper
-
MT6
MT6
MT6
Tailstock quill travel
mm
300
300
300
Main motor power
kw
22
22
22
Rapid motor power
kw
1.5
1.5
1.5
Coolant motor power
kw
0.125
0.125
0.125
Machine dimensions (LxWxH)
mm
4800/6400x2100x1600
4900/6400x2100x1650
4900/6400x2100x1680
Machine weight
kg
10000/11500
11500/13000
12000/13500
Machine Details
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 4

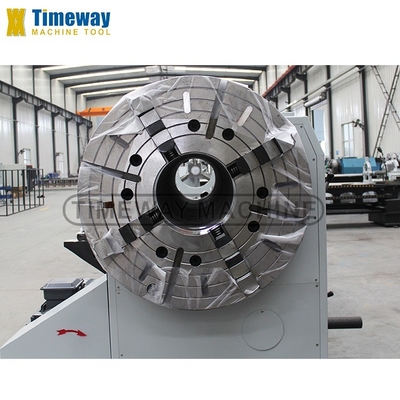

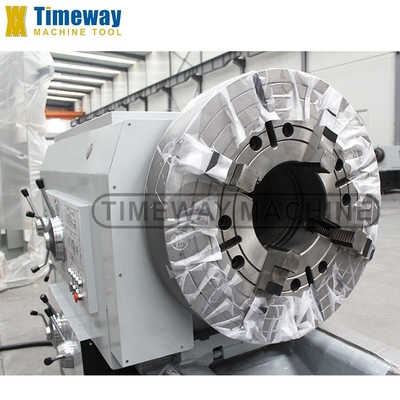

Double chucks (Front & Rear):

The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 5
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 6
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 7



Taper turning attachment:

The taper turning attachment is a standard configuration for the oil country lathe, the lathe can cut different tapered angle long cone and taper threads by the taper turning attachment.
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 8
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 9
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 10

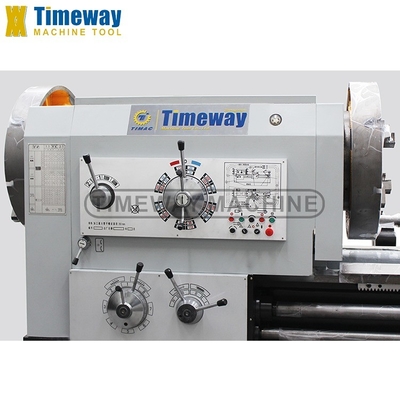

Spindle box:

- Wide spindle speeds for different processing requirements.

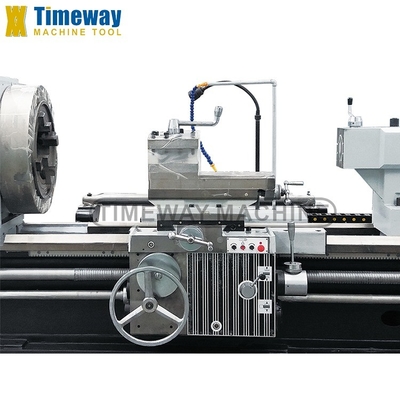

4-stations turret:

- Adopt famous brand manual turret, high positioning accuracy.

Tailstock:

- Manual moving tailstock comes standard, the electric moving taisltock comes optional.
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 11
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 12
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 13

Test - roundness & cylindricity:

Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm

Test - verticality:

Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm

Test - roughness:

Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 14
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 15
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 16

Threads turning test:

Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 17
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 18
22kW Spindle Motor Swing 280mm Pipe Thread Lathe for Performance and Customer Appoint 19
Our Services
1. Free replacing parts available in the warranty period. Cost price replacing parts available beyond the warranty period. 2. Quick action and reply for the technical questions at any time in the whole life of the machine. 3. Overseas after service center available in some region. 4. Engineer overseas service available on the requirement of customer(relative cost born by customer).
