=Adopt high quality cast iron (HT300) one molding casting, bed width (755mm), loading capacity 6000kg. After the second aging treatment, it has the feature of stable performance, good rigidity, anti-vibration ability.
=Spindle is two-point supported by precision heavy load bearing, rotating stability and smoothly.
=Spindle driven by large torque frequency main motor, torque of spindle is big, heavy-powerful cutting.
=Complete with front and rear hollow chuck as standard, according to users’ need different types of manual, electric, pneumatic and hydraulic chuck can be chosen.
=Standard complete with 4-station turret, it is free lifting and index quickly and easily; the vertical 6-station and horizontal 6/8-station and other electric turret can be chosen.
=The X-direction and Z-direction use the precision and grade ball screw, ensured a high processing accuracy, positioning accuracy and repostioning accuracy.
 |

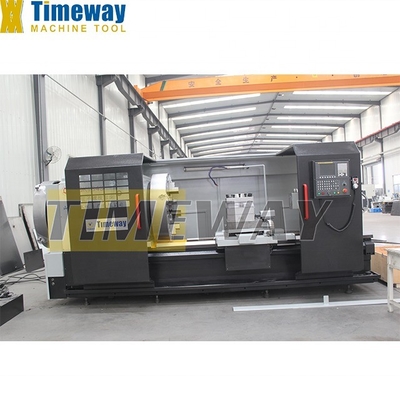

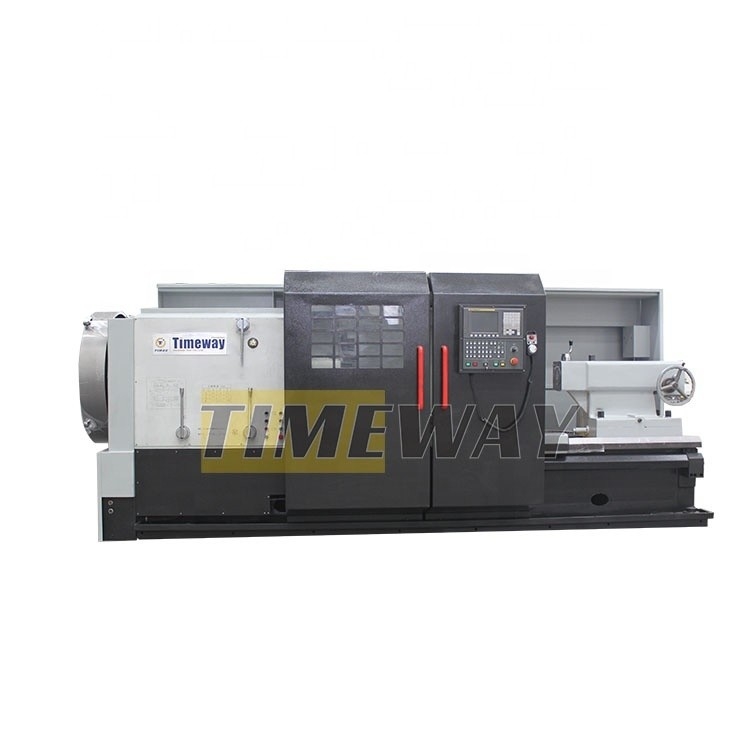

CNC Oil Country Lathe Machine with 440mm Spindle Bore and SIEMENS Control System
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | timeway |
| Model Number: | QK-440 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $68,000.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Heavy Duty |
| Width Of Bed (mm): | 1000 Mm | Spindle Motor Power(kW): | 22 |
| No. Of Spindles: | Single | Number Of Axes: | 2 |
| Travel (X Axis)(mm): | 520 Mm | Travel (Z Axis)(mm): | 2750 Mm |
| Dimension(L*W*H): | 6500*2220*2120 | CNC Control System: | Fanuc/Siemens/GSK |
| Tool Post Stations: | 4 | Weight (KG): | 14000 |
| Warranty: | 1 Year | Key Selling Points: | High Productivity |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Product Name: | CNC Oil Country Lathe |
| Machine Type: | Horizontal CNC Lathe | After-sales Service Provided: | 1 Year |
| Control System: | SIEMENS GSK FANUC (optional) | Color: | Customers' Requirement |
| Model: | QK-440 | Max.swing Over Bed: | 1000mm |
| Spindle Speed Ranges: | 8-205rpm | Spindle Bore: | 440mm |
| Distance Between Centers: | 1500/3000mm | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Printing Shops, Construction Works , Energy & Mining | Showroom Location: | Egypt, Viet Nam, Russia, Kenya, Algeria, Romania, South Africa |
| Marketing Type: | Hot Product 2019 | Max. Spindle Speed (r.p.m): | 205 R.p.m |
| Spindle Bore(mm): | 440 | Core Components: | Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox, Enquiry Us |
Product Description
Product Description
CNC oil country lathe
CNC pipe thread lathe
Features:
Applications of the CNC oil country lathe:
The CNC oil country lathe meets the special requirements of users in the petroleum, geological, mining and chemical industries, and in agricultural irrigation and drainage, it is able to cut various straight and taper pipe threads of union joints, drill rods, casting pipes, drain pipes, well castings and water pump pipes more economically and efficiently as compared with the engine lathe, however, it may serve as an engine lathe to cut various metric, withworth and module threads, shafts and disks.
››››› The lathe is equipped with double chucks which can powerful clamp long parts.
››››› The lathe is equipped with rear support which can auxiliary support longer parts.
Specification
Specifications | Unit | QK-440 |
Capacity | ||
Swing over bed | mm | 1000 |
Swing over cross slide | mm | 610 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 270-430 |
Bed width | mm | 755 |
Max. load capacity | kg | 6000 |
Spindle | ||
Spindle bore | mm | 440 |
Spindle speed steps | steps | stepless (3shifts) |
Spindle speed | rpm | 8-205 |
Chuck size | mm | 1000 |
Chuck type (electric) | - | 4-jaw |
Turret | ||
Turret type (electric) | - | V4 |
Tool shank size | mm | 40x40 |
Feed | ||
X-axis travel | mm | 520 |
Z-axis travel | mm | 1250 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 4000 |
Tailstock | ||
Tailstock quill diameter | mm | 140 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 300 |
Others | ||
Main motor power | kw | 22 |
Coolant motor power | kw | 0.125 |
Machine dimensions | mm | 5000/6500x2200x2200 |
Machine weight | kg | 13000/14000 |
Accessories
STANDARD ACCESSORIES:
FANUC/GSK/SIEMENS CNC system
Big bore chuck (Front & Rear)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
4-station electric tool-post
Work lamp
Pilot lamp
Cooling system
Semi-closed guard
Manual pulse generator (MPG)
Dead centers
Oil gun
Automatic lubrication pump
Manual moving tailstock
Tools & tool-box
Leveling wedge & bolts
Operation manual (English)
OPTIONAL ACCESSORIES:
Penumatic chuck
Other tool-post
Chip conveyor
Air conditioner
Rear support for long pipe
Chip conveyor
Air conditioner
Rear support for long pipe
Machine Details

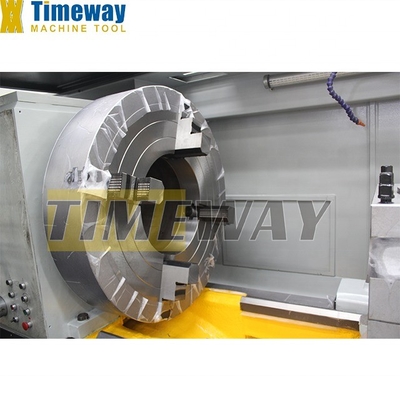

Double chucks (Front & Rear):
The lathe standard is equipped with dual chucks (3-jaw or 4-jaw), the spindle can meet different diameter long-bars, the spindle bore includes 130mm, 200mm, 225mm, 255mm, 280mm, 300mm, 330mm, 360mm, 390mm, 440mm, 520mm, 630mm, and customized spindle bore ( 5.1" ~ 24.8” ).

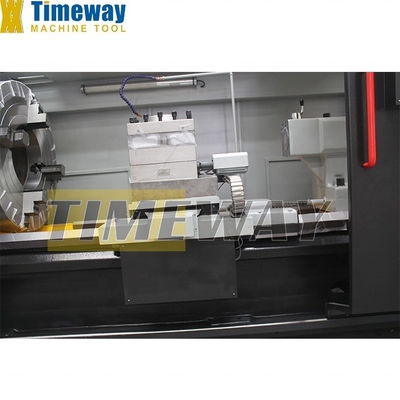

4-stations electric turret:
- Adopt famous brand electric turret, high positioning accuracy. Other tool post comes optional.

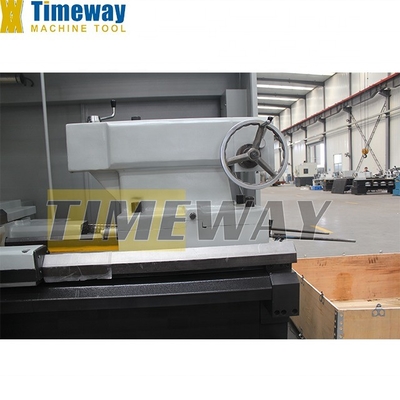

Tailstock:
- Manual moving tailstock comes standard, the electric moving taisltock comes optional.
CNC system:
SIEMENS, FANUC, MITSUBISHI, FAGOR, KND, HNC, GSK, etc. for you choice.
Automatic Production Line for Steel Pipe Threads (optional):
Test - roundness & cylindricity:
Precision turning the external surface of the bar, test accuracy:
Roundness: less than 0.01mm;
Cylindricity: less than 0.025/300mm
Test - verticality:
Precision turning the end surface of the disc, test accuracy:
Verticality: less than 0.02/300mm
Test - roughness:
Precision turning the external surface of the bar, test accuracy: Roughness: Ra1.6um
Threads turning test:
Fine turning taper threads (Taper: 1:16, Thread pitch: 3.175mm), after testing by special measuring device, it can meet accumulative error of pitch to 0.015/25.4mm.
Comprehensive testing parts (only for CNC oil country lathe):
All CNC lathes must make a final cutting process after all standard inspections of the machine, through cutting external surface, steps, arc surface, tapered surface, etc., in order to inspect stability of CNC system and overall performance of the machine.
