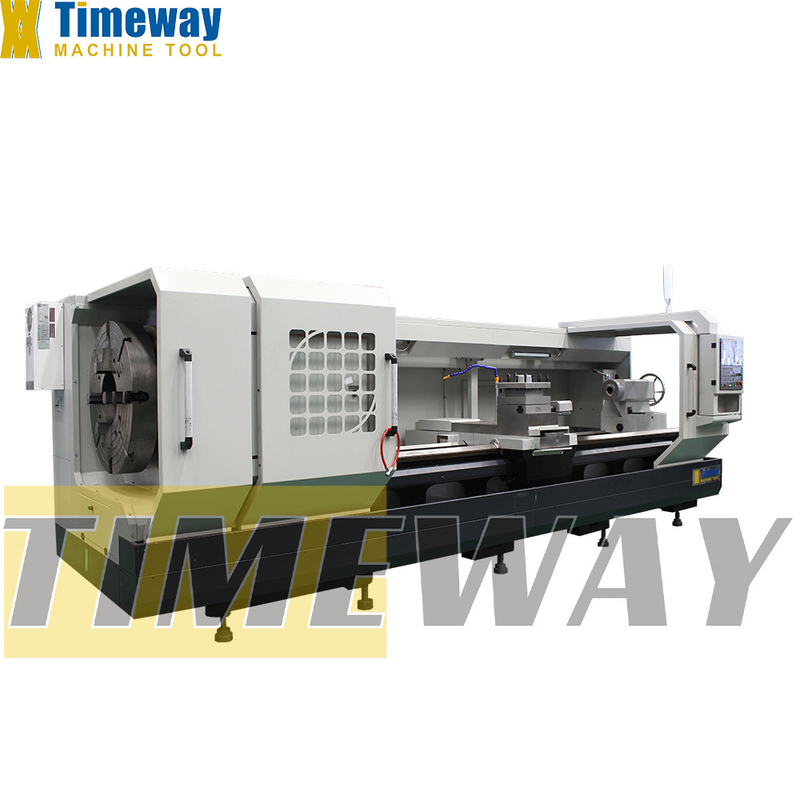

345mm Width QK-255F CNC Oil Country Lathe for Turning Pipe Threads in Oil Fields
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | QK-255F |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $36,850.00/sets 1-2 sets |
|
Detail Information |
|||
| Type: | Horizontal | Max. Length Of Workpiece (mm): | 3000 |
|---|---|---|---|
| Structure: | Flat Bed Lathe | Machining Capacity: | Medium Duty |
| Max. Weight Of Workpiece(kg): | 4000 | Width Of Bed (mm): | 345 Mm |
| Spindle Motor Power(kW): | 15 | No. Of Spindles: | Single |
| Number Of Axes: | 3 | Travel (X Axis)(mm): | 420 Mm |
| Travel (Z Axis)(mm): | 850 Mm | Positioning Accuracy (mm): | ±0.001 |
| Repeatability (X/Y/Z) (mm): | ±0.002 | Dimension(L*W*H): | 3600*1930*1900 |
| Voltage: | 220v | CNC Control System: | FANUC |
| Tool Post Stations: | 4 | Weight (KG): | 6000 |
| Warranty: | 1 Year | Key Selling Points: | Automatic |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | CNC Or Not: | CNC |
| Machine Type: | Lathe Machine CNC | Product Name: | CNC Lathe Mechine |
| Precision: | High Precision Machine | Color: | Customer Optional |
| Max. Swing Over Bed: | 800mm | Spindle Bore: | 255mm |
| Spindle Speed: | 20-420rpm | Keyword: | Automatic CNC Lathe Machine |
| Function: | Machining Metal | Condition: | New |
| Applicable Industries: | Building Material Shops, Machinery Repair Shops, Manufacturing Plant | Showroom Location: | Egypt, Canada, United Kingdom, Italy, France, Germany, Viet Nam, Philippines, Peru, Indonesia, Mexico, Russia, Morocco, South Korea, Chile, Colombia, Romania, South Africa, Kazakhstan, Japan, Malaysia, None |
| Core Components: | Bearing, Motor, PLC, Engine | Year: | 2024 |
| Max. Spindle Speed (r.p.m): | 420 R.p.m | Spindle Bore(mm): | 255 |
| Max. Turned Length (mm): | 3000 | Marketing Type: | Hot Product 2024 |
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
STANDARD ACCESSORIES:

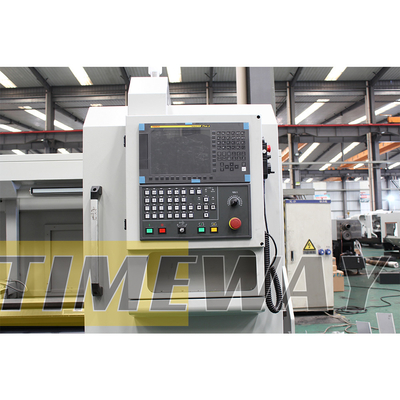

√ FANUC/SIEMENS/GSK CNC system
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Big bore chuck (Front & Rear)√ Dead centers
√ 4-station electric tool-post
√ Cooling system
√ Work lamp
√ Pilot lamp
√ Semi-closed guard
√ Manual pulse generator (MPG)
√ Dead centers
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
√ Automatic lubrication pump
√ Oil gun
√ Manual moving tailstock
√ Tools & tool-box
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ Pneumatic chuck
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
_ Other tool post
_ Air conditioner
_ Chip conveyor
_ Rear support for long pipe
Specification
SPECIFICATION | UNIT | QK-255F |
Max. swing over bed | mm | 800 |
Max. swing over cross slide | mm | 480 |
Distance between centers | mm | 1000/1500/3000 |
Pipe threading range | mm | 120-250 |
Bed width | mm | 600 |
Loading capacity | kg | 4000 |
Spindle bore | mm | 255 |
Spindle speed step(manual) | steps | 4steps(inverter) |
Spindle speed | rmp | 20-420 |
Chuck size | mm | 630 |
Chuck type(manual) | - | 4-jaw |
Turret type(electric) | - | V4 |
Tool shank size | mm | 32x32 |
X-axis travel | mm | 420 |
Z-axis travel | mm | 850/1350/2850 |
X-axis rapid feed speed | mm/min | 4000 |
Z-axis rapid feed speed | mm/min | 6000 |
Tailstock quill diameter | mm | 120 |
Tailstock quill taper | - | MT6 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 15 |
Coolant motor power | kw | 0.125 |
Machine dimensions(LxWxH) | mm | 3600/4100/5600*1930*1900 |
Machine weight | kg | 6200/6700/7700 |
