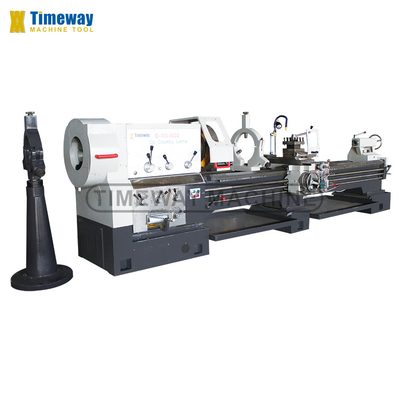

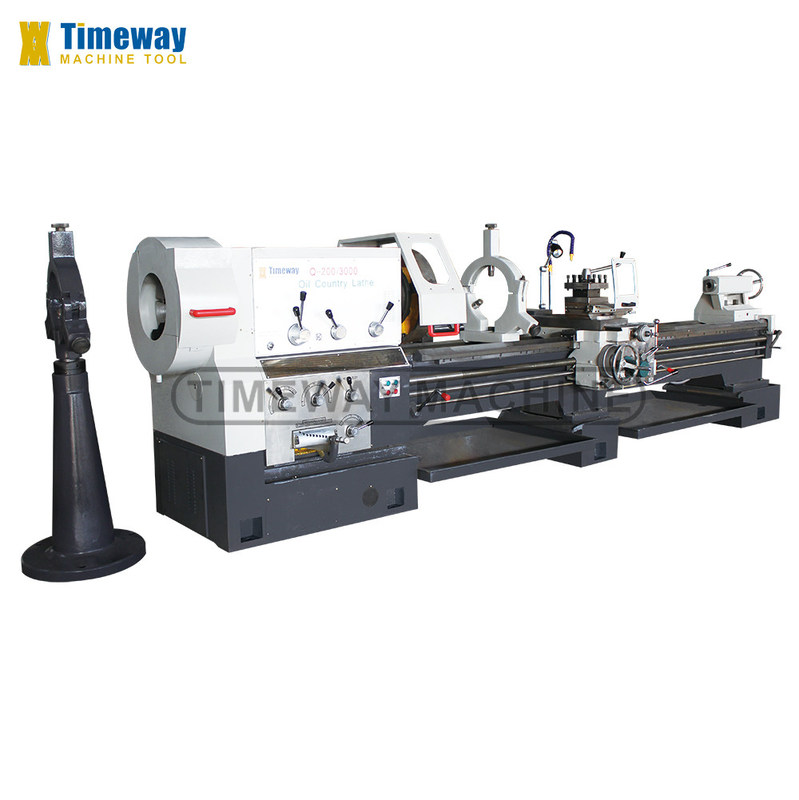

High Precision Q-200 Oil Country Lathe for Metal Pipe Thread Turning 2024 Application
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | Timeway |
| Model Number: | Q-200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $29,959.00/sets 1-2 sets |
|
Detail Information |
|||
| Max. Length Of Workpiece (mm): | 3000 | Range Of Spindle Speed(r.p.m): | 20 - 480 R.p.m |
|---|---|---|---|
| Machining Capacity: | Medium Duty | Type: | Horizontal |
| Spindle Motor Power(kW): | 11 | Weight (KG): | 5500 KG |
| Warranty: | 1 Year | Key Selling Points: | High-accuracy |
| Marketing Type: | New Product 2024 | Machinery Test Report: | Provided |
| Video Outgoing-inspection: | Provided | Warranty Of Core Components: | 1 Year |
| Name: | Manual Lathe Machine | Machine Type: | Horizontal Normal Lathe |
| Product Name: | Manual Metal Lathe Machine | Precision: | High Precision |
| Distance Between Centers: | 1500mm/3000mm | Swing Over Bed: | 630/800mm |
| Spindle Speed: | 20-480 Rpm | Spindle Bore: | 200mm |
| Max.swing Over Bed: | 630mm/800mm | Tailstock Taper: | MT5 |
| Condition: | New | Applicable Industries: | Hotels, Garment Shops, Building Material Shops, Machinery Repair Shops, Manufacturing Plant, Farms, Restaurant, Food Shop, Construction Works , Energy & Mining |
| Showroom Location: | Canada, United States, Italy, France, Germany, Viet Nam, Peru, India, Russia, Spain, Thailand, Japan, Malaysia, Australia | Core Components: | Bearing, Pump, Motor, PLC, Engine |
| Spindle Bore(mm): | 200 | Max. Turned Length (mm): | 520 Mm |
| Year: | 2024 | ||
Product Description
One-Stop Shopping
You can click on the picture to view the products you are interested in
Product Description
Specification
STANDARD ACCESSORIES:
√ Big bore chuck (Front & Rear)
√ Dead centers
√ 4-station electric tool-post
√ 4-station electric tool-post
√Taper turning attachment
√ Cooling system
√ Work lamp
√ Chip collecting plate
√ General tools
√ Leveling wedge & bolts
√ Operation manual (English)
√ Work lamp
√ Chip collecting plate
√ General tools
√ Leveling wedge & bolts
√ Operation manual (English)
OPTIONAL ACCESSORIES:
_ 2 or 3-axis DRO
_ Chuck guard
_ Tool-post guard
_ Rear splash guard
_ Rear support for long pipe
_ Chuck guard
_ Tool-post guard
_ Rear splash guard
_ Rear support for long pipe
SPECIFICATION | UNIT | Q-200 |
Max. swing over bed | mm | 630/800 |
Max. swing over cross slide | mm | 340/520 |
Distance between centers | mm | 1500/3000 |
Pipe threading range | mm | 50-193 |
Bed width | mm | 550 |
X-axis travel | mm | 320/420 |
Z-axis travel | mm | 1350/2850 |
Loading capacity | kg | 3000 |
Spindle bore | mm | 200 |
Spindle speed step | steps | CCW:12/CW:9 |
Spindle speed | rpm | 20-480 |
Chuck size | mm | 520 |
Chuck type(manual) | - | 4-jaw |
Turret type(manual) | - | V4 |
Tool shank size | mm | 32x32 |
X-axis feed range(steps) | mm/r | 0.02-0.45(22) |
X-axis rapid feed speed | mm/min | 2300 |
Z-axis feed range(steps) | mm/r | 0.07-1.33(26) |
Z-axis rapid feed speed | mm/min | 4000 |
No. of Metric thread and range | mm | 1-14(24) |
No. of Inch thread and range | TPI | 28-2(40) |
Tailstock quill diameter | mm | 100 |
Tailstock quill taper | - | MT5 |
Tailstock quill travel | mm | 250 |
Main motor power | kw | 11 |
Rapid feed motor power | kw | 0.3 |
Coolant motor power | kw | 0.125 |
Machine dimensions(LxWxH) | mm | 3700/5200x1550x1550 |
Machine weight | kg | 4300/5500 |
